Digital X Ray Baggage Inspection Equipment

Specifications

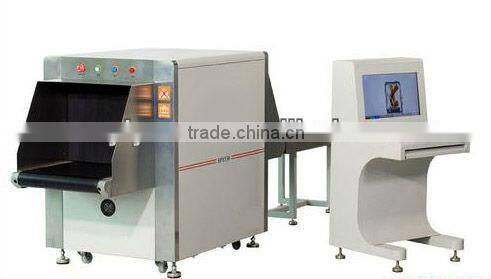

         Digital X ray baggage inspection equipment  ST-6550

1. Basic parameters

 2. Feature

1. Alarm by sounds & light:Alarm by sounds and light when conform to condition.

 2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times

3. Safety ray:Transmit ray under automatic control, avoids the miss

4. Image monitoring for user-friendly:The monitor use 360° the fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.

5. Simple operation by mouse:Without keyboard and work table, control by mouse, save space.

6. Turn off by a key control:Turn off the machine only need one step:revolves the key. the equipment automatic security close-down, does not need complex many steps, is simpler.

7. Eagle-eye:Could be expediently observing enlargement area.

8. Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.

9. Energy saving and environmental protection: the machine can automatically sense objects, no objects no movement

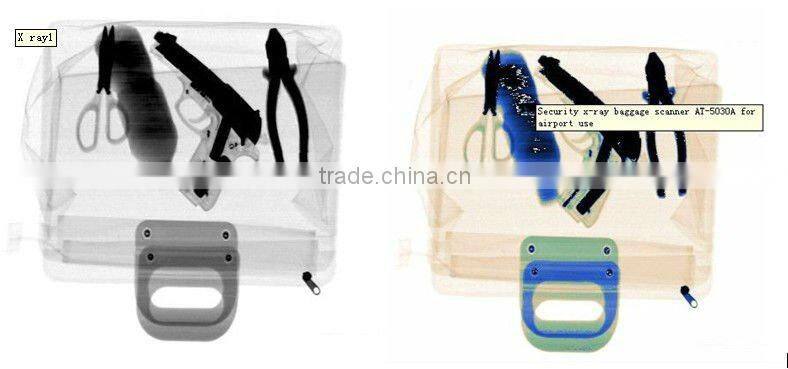

3. Image performance system:

1.X-ray sensor:

 L type photo-diode array detector, 12bit

2. Monitor:

High resolution at least 19 inch color LCD display

3. Color quality:

24 bit real colors

4. Edge enhancement:

Object contour edge is more distinct, image detail is more distinct

5. High penetrate /Low penetrate strength display:

Increase brightness of dark area in image to Display object which is behind high absorptive mass distinctly.

Increase contrast of low absorptive mass (easy to penetrate) to display it distinctly

6. Magnifier:

Function of partial enlargement

7. Brightening/dimming:

Increase brightness of image/decrease

8. Image recurrence:

Display previous twenty images and process any one of them

9. Image restoration:

Restore image to initial status at the time of stopping conveyor

10. Image storing:

Real time stores any image and processes it in operation status

11. Multi-energy function:

Display organic material for orange, display inorganic material for blue, and display mixture for green

12. High energy/low energy:

Switch to display two energy type, high energy stands for metal etc., low energy stands for nonmetallic

13. Auxiliay functions for drugs & explosives:

It helps to detect such dangerous material as drugs & explosives etc.

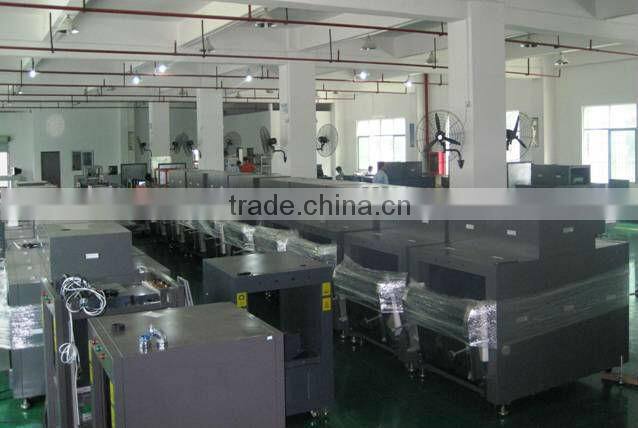

4. Our manufacturing workshop

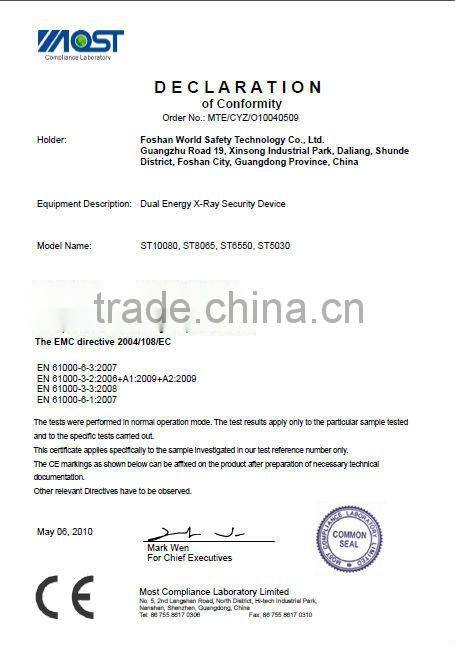

5. CE certificate

If you have any questions, please don't hesitate to ask us !
