Round Work Piece Laser Diameter Gauge

Specifications

 Round work piece laser diameter gauge

Introduction:

ETD-05 Series Laser diameter measurement is based on the principle of laser scanning measurement.

Precision designed for non-contact diameter measurement equipment.

The 2-dimension measuring mode is applied to the instrument,

and it is in the positive cross design in the measuring field,

thus effectively eliminating testing errors caused by work piece shocks.

It is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials

Such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters.

Features:

Laser two-dimensional scanning: Two bunches of lasers to do outer diameter measurement of non-contact ,non-damage from the different angle, it can effectively eliminate error caused by work vibration;

DSP data processing technique: The sampling speed is quick, precision is high and the performance is stable;

The reaction control integration module with PID constitute the online outer diameter closed loop observation and control system (e.g.: diameter of the object measured is slight big or small, transmission rate is big or small), which can change the transmission rate to control the outer diameter be tested through adjusting the power supply with PID.

Easily to operate: User can set up a boundary numerical value, main engine will give an alarm automatically while the test result exceeds the set value.

It processes R485 communication interface, can be connected with PC machine and PLC and then composed into long-distance collection and distribution supervisory system, The transmission length may reach 200m

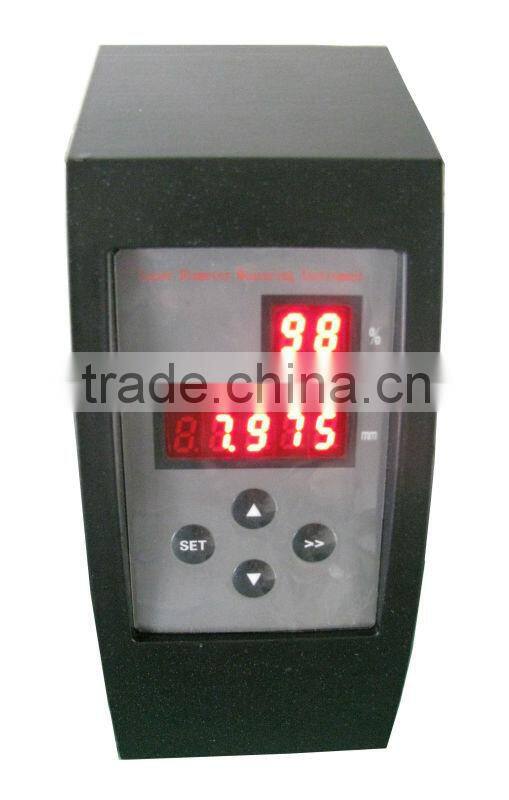

The Front Picture:

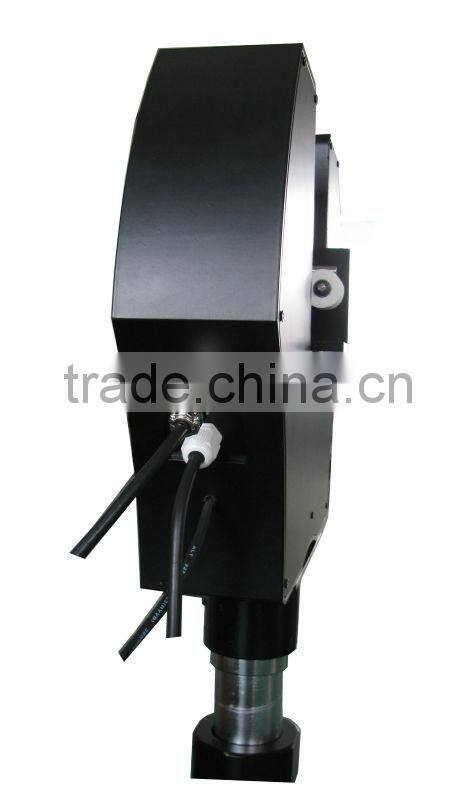

The Back Picture:

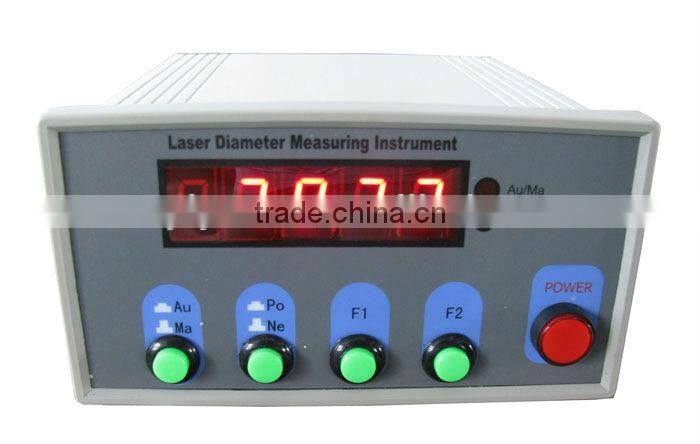

The Display Controller:

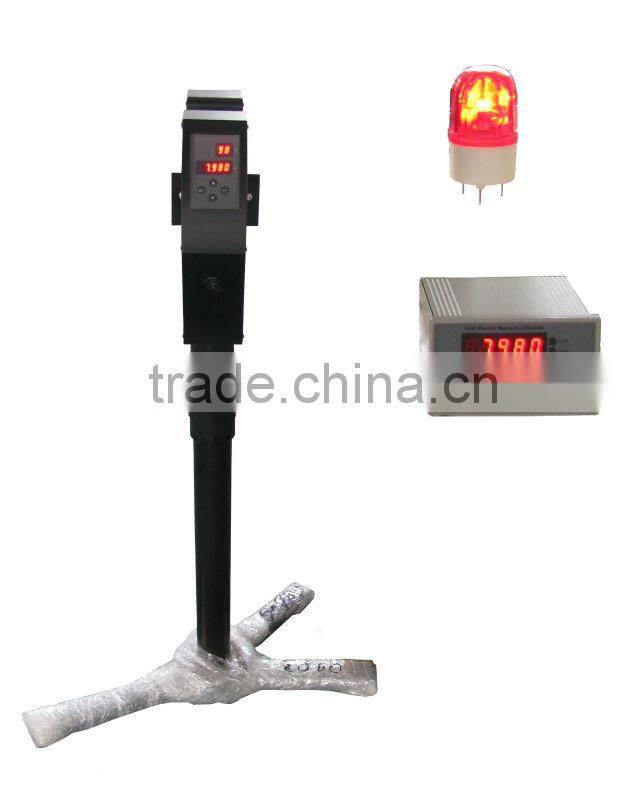

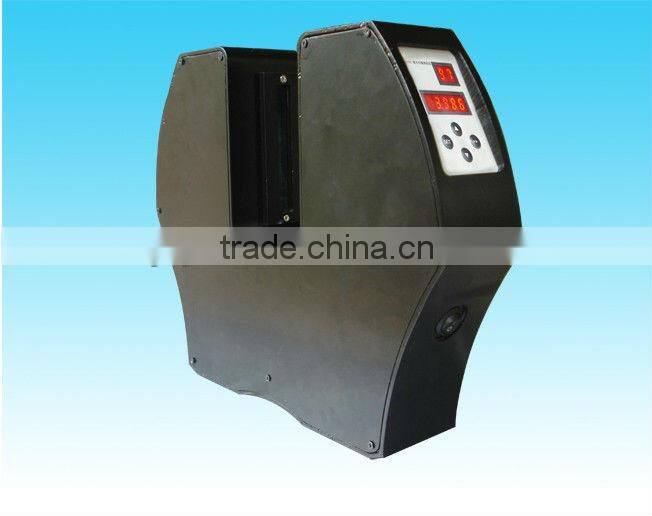

The Panoramic Pictures:
