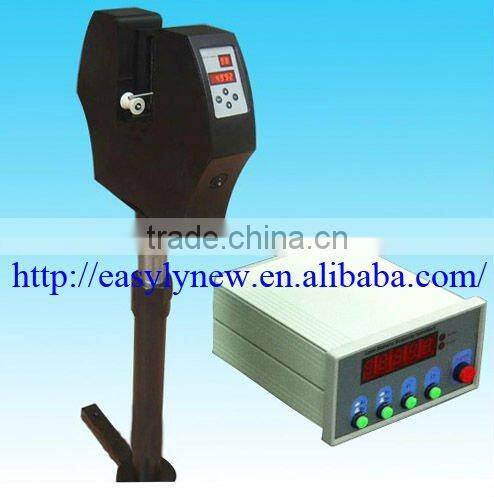

Laser Diameter Measuring Steel Pipe Instrument
- Guangzhou
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | ST | |
| Model Number | ST-05B |
Product Description
| ST-05B(Table) Laser Diameter Measuring Instrument | |||
Features: | |||
| Introduction: | |||
| The ST-05B Laser Diameter Instrument is a high accuracy one without contacting designed on the basis of the laser scan measuring principle. The 2-dimension measuring mode is applied to the instrument, and the 2-way laser beam is in the positive cross design in the measuring field, thus effectively eliminating testing errors caused by work piece shocks. It is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters. | |||
| Technology Parameter: | |||
| Measure Range(mm) | 0.2~30 | ||
| Measure Precision(um) | ±2.0 | ||
| Sensitivity(um) | 1.0 | ||
| Feedback Output | DC-2.5V~2.5V | ||
| Relative Humidity | no dew than 85% | ||
| Environment Temperature | 4~40 | ||
| Power Consumption(W) | 50 | ||
| Scanning speed(m/s) | 50 | ||
| Packing Specification(mm) | Main Engine:441×170×546 | ||
| Product Allocation | Laser Diameter Measuring Instrument:1 unit; Calibrating stand:1 set | ||
