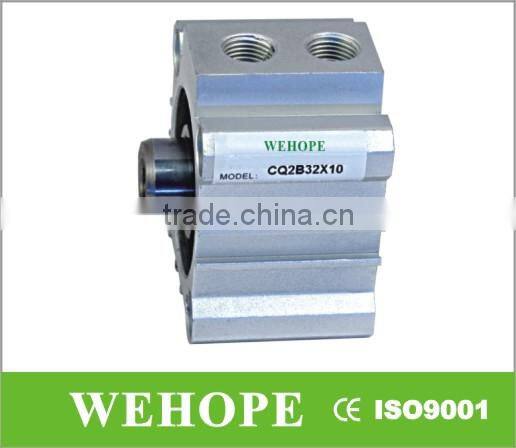

Pneumatic Air Cylinder ULTRA-THIN CYLINDER CQ2B Series
US$ 1 - 10
/ Piece
100 Pieces(Min. Order)
- NINGBO OR SHANGHAI
- T/T
You May Like
Product Details
| Type | Other, Cylinder, Pneumatic air cylinder | Place of Origin | Zhejiang, China | |
| Model Number | air cylinder | Brand Name | WEHOPE |
Product Description
Specifications
1.Many years experiences.2. High quality , favorable price .
3. Fast delivery , best service
Product Description
Symbol
Inner instruction
| No . | Name | ||
| 1 | Connecting bolt | ||
| 2 | Piston | ||
| 3 | Piston pole | ||
| 4 | Conduit of piston rod | ||
| 5 | Retaining ring | ||
| 6 | Bush | ||
| 7 | Spring | ||
| 8 | Plug | ||
Spec
| Cylinder dia.(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |||
| Fluid | Air | ||||||||||||
| Action type | Double-action and single-action spring back/spring away | ||||||||||||
| Endurable pressure | 1.5Mpa(15.3kgf/cm ) | ||||||||||||
| Max applicable pressure | 1.0Mpa(10.2kgf/cm ) | ||||||||||||
| Environment and fluid temperature | 5~+60 | ||||||||||||
| Thread of rod end | Through hole (standard),female thread of two ends(optional) | ||||||||||||
| Buffer | No | ||||||||||||
| Travel tolerance | +1.0 0 | ||||||||||||
| lubricating | No need | ||||||||||||
| Installation | Through hole (standard),female thread of two ends(optional) | ||||||||||||
| Rc(PT) | M5* 8 | 1/8 | 1/ 4 | 3/8 | |||||||||
