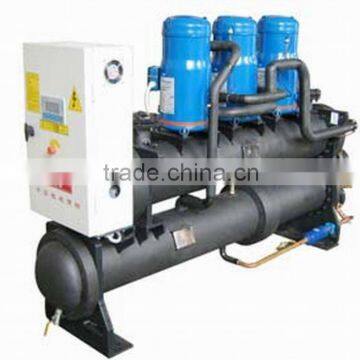

Modular type ground source heat pump (scrow compressor),

Specifications

 Modular Water source heat pump

Cooling Capacity: 90kw-720kw, 130kw-1040kw  160kw-1280kw

Heating Capacity: 95kw-762kw  136kw-1091kw  168kw-1345kw

Feature:

1. The master module can work independently or together with up to 7 slave modules, flexible design, stable performance, easy maintaince.
2. Reusable: using solar energy stored in earth as cooling & heating source.
3. Shell and tube dry expansion type condenser, factory insulated with flexible close cell material
4. 3-phase scroll type compressor, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers.
5. Shell and tube type evaporator, factory insulated with flexible close cell material.
6. Acting as multi-function unit such as cooling, heating, with heat recovery function producing hot water for domestic use.
7. The refrigerant circuit is complete with filter drier, direct expansion valve, high and low pressure switch.
8. The electric panel consists of compressor breaker, compressor contactor, phase sequence relay, control circuit breaker, microprocessor control with function display.
9. LCD display as standard.
10. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
11. Wide application as hotel, apartment, villa, factory, shopping center, office building, school, etc.

OPTIONAL

1, Desuperheater as optional.

2, Electronic controller with BMS system.
