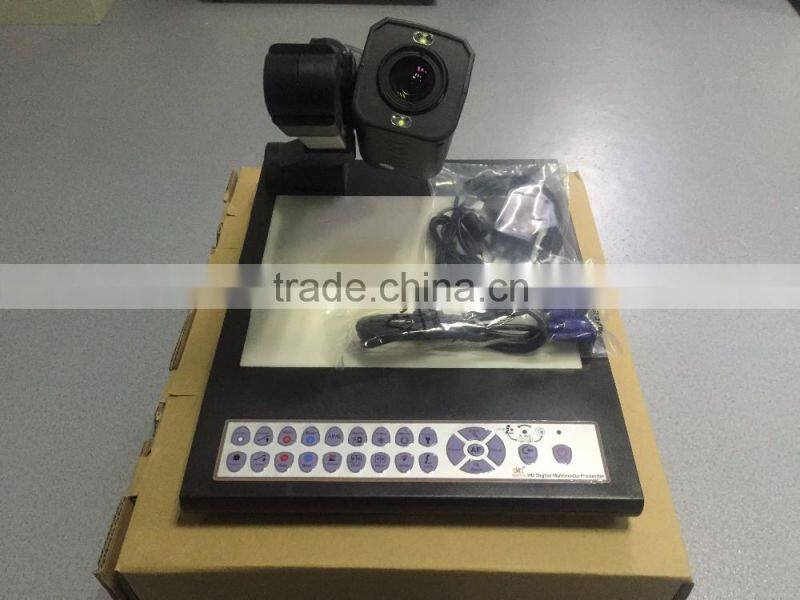

Foldable A4 Paper Portable Document Camera High Definition Digital Visualizer With VGA Interface
- Shenzhen Ningbo Shanghai
- T/T Credit Card
You May Like
-
Desktop HDMI Scanner 3d Camera Scanner Book ID Card Business Card Passport With Wifi for Printer a4 Paper Size Quality Choice
-
Automatic A4 Paper Document Scanner Book Scanner Visualizer School Electronic Supplies in China Quality Choice
-
Desktop Visualizer Digital Document Camera for Education Business Video Conference System Interpretation
-
Hot Sale VGA HDMI USB Out Interface Support OEM Visualizer Visual Presenter Document Camera CE FCC ISO Certificate
-
High Definition SD CARD Visual Presentation Portable Document Camera
-
School Equipment Digital Document Camera Classroom Document Visualizer
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Hengsheng | |
| Model Number | HS-7085A |
Product Description
| ·High resolution camera provide high quality image | |
| ·Resolution 850 000 pixels,700 TV lines | |
| ·Optical zoom 22×: Digital zoom 10× | |
| ·Video 1 Input/1 Output, Audio 1 Input/ 1 Output | |
| ·VGA: 1 Input/ 1 Output | |
| ·CE & FCC Certificate approval | |
| Specifications | ||
| Category | HS-7085A | |
| Optical | CMOS Size | 1/3.2’’ professional CMOS |
| Total Pixels | 850K | |
| Line Resolution | 700TVL | |
| Camera Head Rotation | 330 | |
| Frame Rate | 30 (fps) | |
| Shooting Area | 260×350mm max, 28 x 21mm min. | |
| Signal Noise Ratio(S/N) | 50 dB | |
| Lens(mm) | F=1.6-3.8.f=3.9-85.8mm | |
| Powered Zoom | 22×Optical/10× digital | |
| Focus | Auto/Manual | |
| Iris | Auto | |
| Lighting | Overhead Lamp | 3W*2 LED(100K lamp hours) |
| Lower Lamp | Built in LED lighting box 1W LED(100K lamp hours) | |
| Imaging | Brightness Adjustment | Auto/Manual |
| Video Signal | PAL/NTSC color system | |
| Resolution | XGA (1024*768) | |
| Colour/B&W Selection | Yes | |
| White Balance | Auto/Manual | |
| Auto Image Adjust | Yes | |
| Text/Graphics Enhancement | Yes | |
| Image Zoom | Yes | |
| Image Freeze | Yes | |
| Image Rotation | 360°(up/down)330°(left/right) | |
| (including 90° and 180° degree) | ||
| SHAPNESS Adjustment | Yes | |
| Colour (RED/BLUE) Adjustment | Yes | |
| Negative/Positive | Yes | |
| SCREEN DIV2 | Yes | |
| Terminals | VGA Input | VGA(DB15 FLC) ×1 |
| VGA Output | VGA(DB15 FLC) ×1 | |
| Video/Audio input | Audio;3.5Mini jack×1, Video :RCA×1 | |
| Video/Audio output | C-Video;RCA jack×1, Audio Mini jack ×1 | |
| RS-232 Connector | 1PC | |
| Power | 12V/2A DC adapter, 30W | |
| Temperature | -10°C--50°C | |
| Folded Dimensions(W*D*H) | 410x320x135mm | |
| Setup Dimensions(W*D*H) | 410x320x490mm | |
| Dimensions(W*D*H) | 515X440X250MM | |
| container (stack limit 8pcs ) | 495PCS/20" GP; 1035PCS/40'GP | |
| N.W./G.M. | 3.5KGS/ 6KGS | |
| Accessories | User's Manual, VGA Cable | |
| Warranty | 1 year (supply free parts for service in warranty) | |
| Optional functions | Remote controller (add extral cost $12/pc) | |
How it works
1, Connect circuit: connect projector and visualizer by VGA cable. Connect DC12V Adapter. The Power key and the input key lamp is on red.
2, Open the power: press the power key, the Power key lamp change to blue, can Start to operate the visualizer now.
3,Adjust camera:turn the camera to keep the object is in the center of the screen
4,Switch Function: If you want to use an external programming source, press the “Input”key to switch.
5,Close the power: press the Power key in 3 seconds. The power key lamp change to red. The Input key lamp is out. The visualizer close.
1, Following style Supper Bright LED Lighther
2, Embedded Remote Controller
3,Graphical Opetator Interface
Packing Details: Original Packing, 1 PCS per pack
Delivery Details: 3-20 days after receive the deposit
Delivery Terms: EXW,FOB,CNF,CIF.etc
Established in 2003, Hangzhou Hengsheng Electronic Technologies Co., Ltd is a high-tech company specializing in intelligent control systems, image stitching processing systems, matrix switching systems, and multimedia peripherals' research and production. Top 3 company in this line.
We are a manufacturer of Audio Visual products and specialized in the Education market more than 10years. , some of our products include: Desktop / portable document camera, Cam scanner, Multimedia Central Controller, All-in-one pc and so on. The company insisting on its motto ""excellence pursuance, perfect service" . All the products have passed CE,FCC,ROHS and ISO 9001.
1,What’s the minimum quantity of an order for your goods?
Normal order MOQ is 1 piece.
2,What’s the payment terms?
Payment term: T/T, Western Union, PayPal, Escrow .etc
3,How about your after-sales service?
We can provide accessories for free within 12 months.
We are the professional manufacturer of document scanner , any requirement feel free to contact me.
