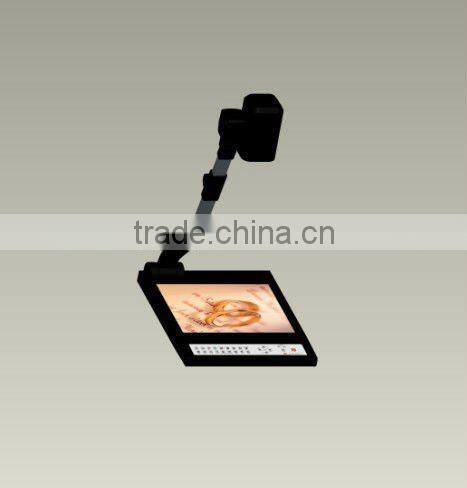

Hengsheng HDMI Digital Portable 2Mega Visual Display HS-7200C

FOB Price

US$ 300 - 500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	HS
Model Number	HS-7200D

1.used in education and office work.
2.can be connected to TV,projectors,PC and other multimedia devices.

Specification:

Category		HS-7200D
Optical	CMOS Size	1/3.2’’ professional CMOS
	Total Pixels	2Mega pixel
	HDMI	Option
	SD card&usb	Yes
	Line Resolution	800 TVL
	Camera Head Rotation	330
	Frame Rate	24 (fps)
	Shooting Area	330×250mm max, 28 x 21mm min.
	Signal Noise Ratio(S/N)	50 dB
	Lens(mm)	F=1.6-3.8.f=3.9-85.8mm
	Powered Zoom	22×Optical(*)/ 10× digital
	Focus	Auto/Manual
	Iris	Auto
Lighting	Overhead Lamp	3W*2 LED(100000 lamp hours)
Lighting	Lower Lamp	Built in LED lighting box(1W)(100000 Lamp hours)
Imaging	Brightness Adjustment	Auto/Manual
	Video Signal	PAL/NTSC color system
	Resolution	SXGA (12801024)/XGA (1024768)
	Colour/B&W Selection	Yes
	White Balance	Auto/Manual
	Auto Image Adjust	Yes
	Text/Graphics Enhancement	Yes
	Image Zoom	Yes
	Image Freeze	Yes
	Image Rotation	340°(up/down)340°(left/right)
	Image Rotation	(including 90° and 180° degree)
	SHAPNESS Adjustment	Yes
	Colour (RED-BLUE)Adjustment	Yes
	Negative/Positive	Yes
	SCREEN DIV2	Yes
Terminals	VGA Input	VGA(DB15 FLC) ×1
	VGA Output	VGA(DB15 FLC) ×1
	VGA Output Resolution	SXGA (12801024)/XGA (1024768)
	RGB Output	1 pc
	Video/Audio input	Audio;3.5Mini jack×2, Video :RCA×1
	Video/Audio output	C-Video;RCA jack×1, Audio Mini jack ×1
	RS-232 connector	1 pc
	Power	12V/2A DC adapter, 30W
	Temperature	-10°C--50°C
	Folded Dimensions(WDH)	320x410x135mm
	Setup Dimensions(WDH)	320x410x490mm
	Dimensions(WDH)	515X440X250MM
	container (stack limit 8pcs )	495PCS/20" GP; 1035PCS/40'GP
	N.W./G.M.	3.5KGS/ 6KGS
	Accessories	User's Manual, VGA Cable, DC adapter

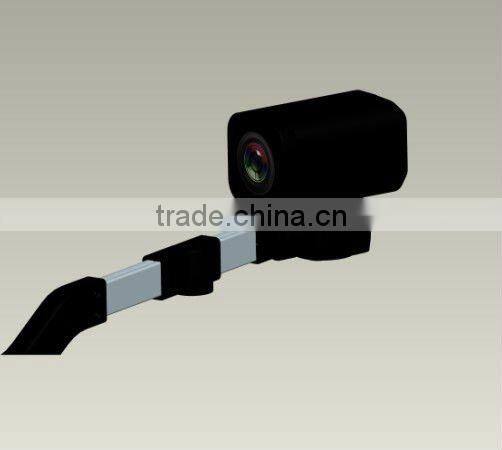

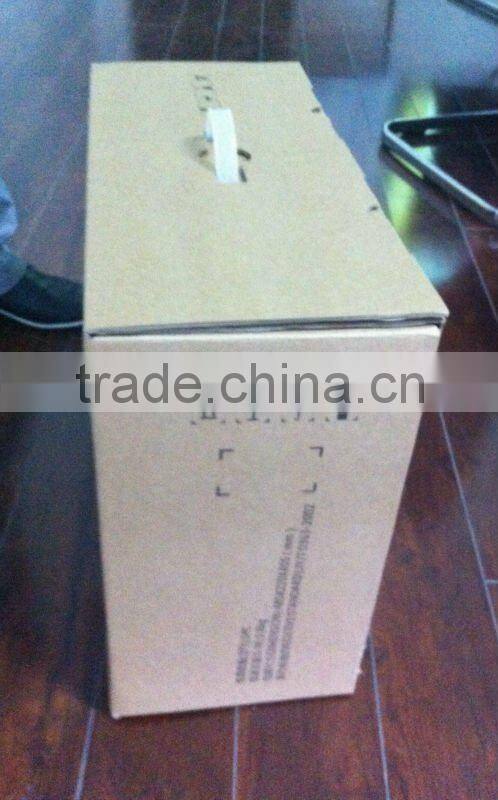

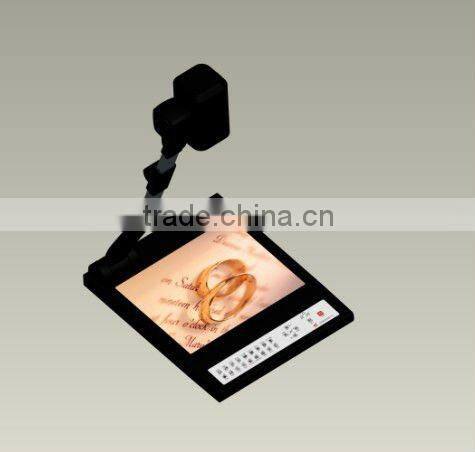

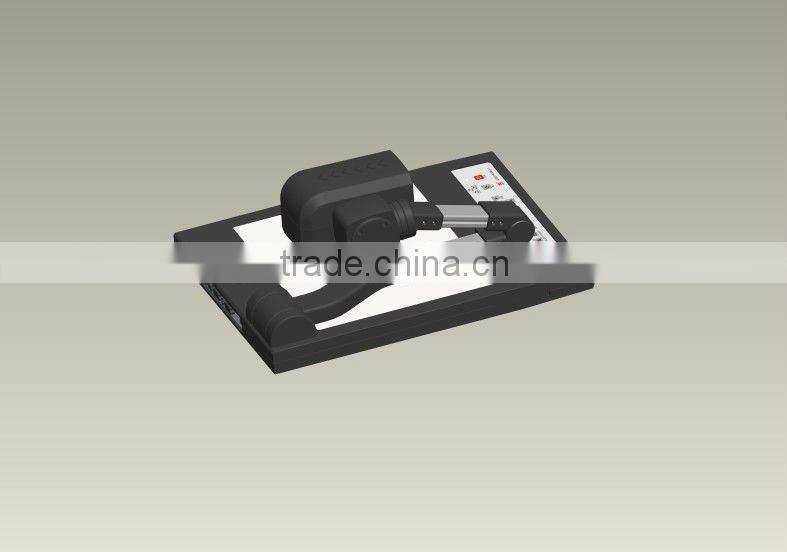

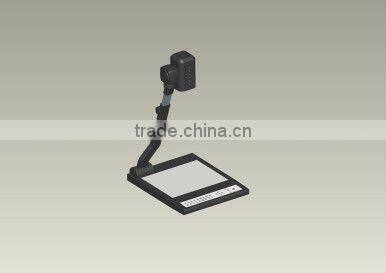

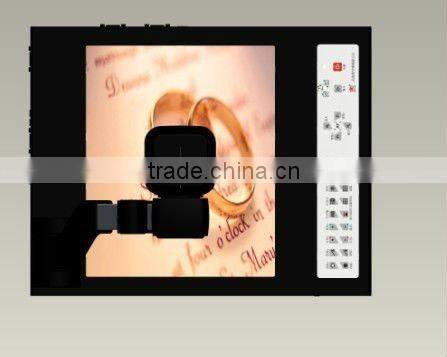

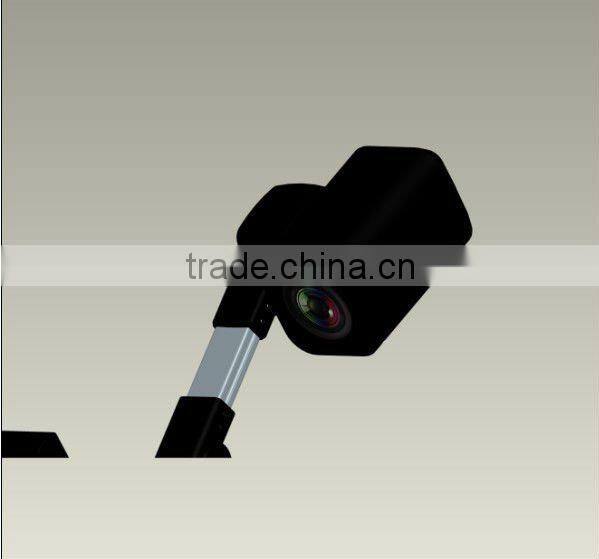

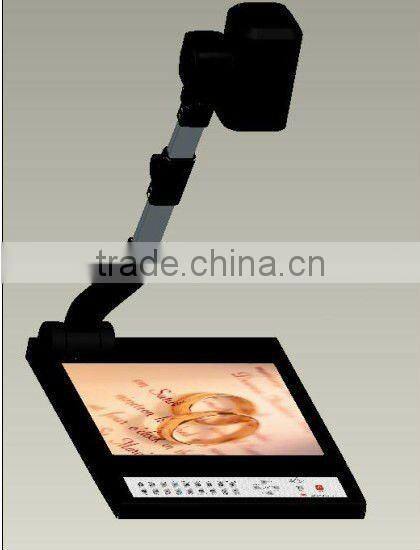

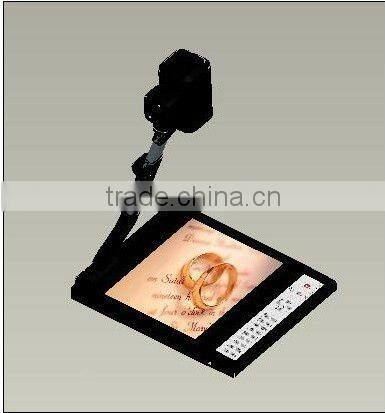

Details viewing:
