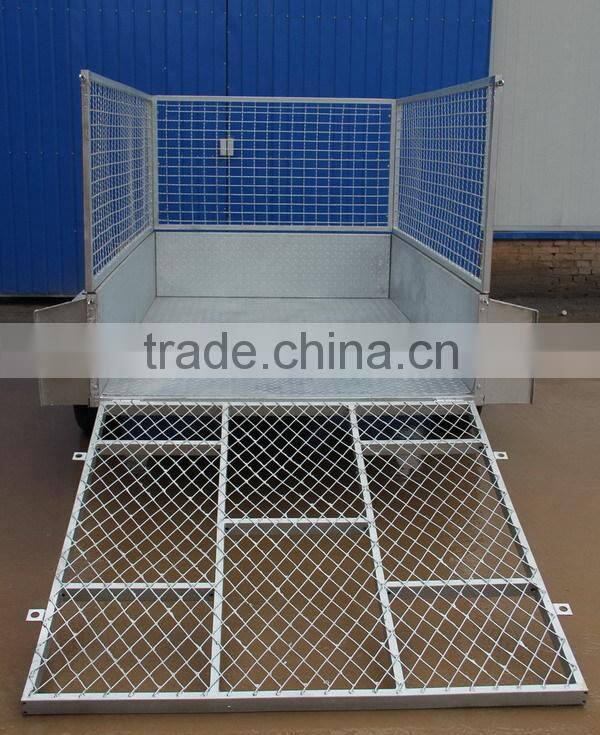

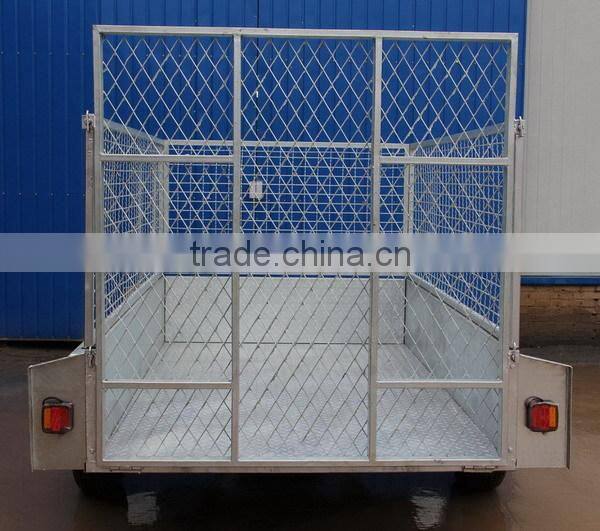

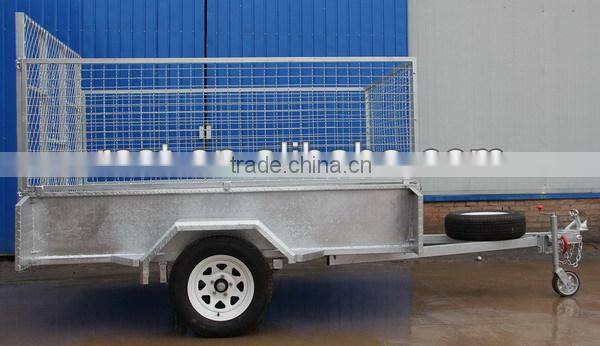

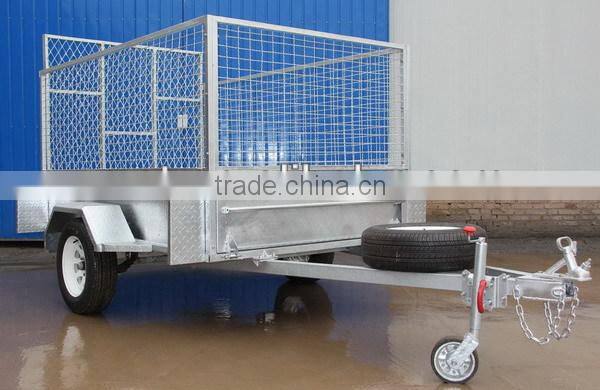

8*5 ramp trailer

Specifications

Box trailer with ramp

Trailer specification table:

Trailer body construction and materials

Trailer side panels, front panel & tailgate: 2.5mm thick steel checker plate with checker side inside the trailer

Trailer floor: 2.5mm thick steel checker plate welded onto chassis;

Trailer mudguards: 2.5mm thick steel checker plate as standard;

Trailer suspension and wheel

Standard 40mm solid square axle;

Standard number of mechanical brakes as per above table.

Standard hand braking system

Standard eye-to-eye leaf springs for single axle box trailers.

Wheels: White powder coated steel rims as standard; All tires are DOT certified.

Trailer details and accessories

Safety chains: 8mm diameter hot-dipped galvanized finish, comply with Australian standard, with standard markings

Coupler: Australian standard 50mm ball coupling with Australian standard markings, complies with Australian standard;

Jockey Wheel: swing up type jockey wheel with solid wheel

Trailer electric set-up

LED tail Lights and number plate lights (ADR approved or with E-mark)

7-pin plug: flat or round plugs available for choice

Wire cable: standard 6-core wire cable

Cages

Cage height: 800mm

Material: 70*50*4 crimped steel mesh, 30*30*2mm steel tube
