Home > Products > Stone CNC Router > Factory Price Ceramic , Stone CNC Carving Engraver Router Machine

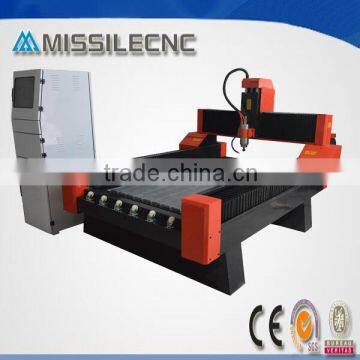

Factory Price Ceramic , Stone CNC Carving Engraver Router Machine
- 200 Set / Sets per Month
- Qingdao Shanghai Ningbo etc
- Credit Card
You May Like
-
China Jinan 3D Stone Engraver , Granite , Gravestone , Metal Ultrasonic CNC Cutting Engraving Machine Price
-
China high speed panel furniture automatic cnc wood carving machine
-
China supply 1325 new design cnc router wood cnc machine
-
Hot sale China 1300*2500mm size wood router cnc machinery
-
china cabinet servo woodworking cnc router with auto load unload system
-
china air cooled twin spindle 1325 cnc router with boring units
Product Details
| Condition | New | Type | CNC Router | |
| Use | Granite | Production Capacity | 100% | |
| Place of Origin | Shandong, China | Brand Name | Missile | |
| Model Number | 9015 | Voltage | AC380V/50Hz | |
| Power(W) | 3.0kw Spindle | Dimension(L*W*H) | 2000*3200*1800mm | |
| Weight | 900kg | Certification | CE BV | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Duty Factory Price Ceramic , Stone CNC Carving Engraver Router Machine
1.The table is adopted with sink style structure, it can lengthen the feeding height by this way, to ensure the machine stability
2.Adopt Taiwan Linear guide rail. The bearing of the load guide rail is face to face, long time use precision is high.
3.Germany double nuts automatic ball screw.
4.High speed driver, high speed, high power.
5.No dust oiling structure, guarantee the long term running of the mechanical aspect.
6.Break point and break knife continue engraving function. It can engrave
at any place as you like.
7.The compatibility is high, CAD/CAM software such as Type3 /artcam/ castmate/Artcut.
8.High power frequency changing water cooled spindle can process hard materials efficiently.
Description | Parameter |
X,Y,Z Working Area | 900x1500x250mm |
X,Y,Z Repositioning Accuracy | ±0.05mm |
Table Surface | T-slot Table |
Frame | Welded structure |
X, Y axis transmission | Rack and Pinion gear |
Z transmission | Ball Screw |
Rail Configuration | 20 square rail |
Max. Traveling Rate | 25000mm/min |
Max. Working Speed | 15000mm/min |
Spindle Power | Water cooling 5.5KW(Opitioinal 3.0/4.5/7.5kw) spindle |
Spindle Speed | 24000RPM |
Drive Motors | Stepper System (Optional Yaskawa/ Panasonic Servo motors) |
Working Voltage | AC380V/50Hz/3PH |
Command Language | G Code |
Operating System | Nc studio System (Optional:DSP) |
Computer Interface | USB |
Software Compatibility | Type3, UCANCAM |
Packing Size | Wooden case |
N.W. | 900Kg |
Invites Agents from All Over the World !!
If you are not sure which machine is suitable, please tell me the followingquestions,
We will recommend the most suitable machine to you.
1) what materials do you want to engrave or cut?
2) what's the thickness of materials you want to engrave or cut?
3) what's the max. size of the materials? (Length*Width*Thickness)
