Long-life Galvanized-plate Rain Cover/ Fixed Conveyor Cover (YDT-8)
- SHANGHAI/TIANJING/QINGDAO
- T/T L/C Credit Card
You May Like
-
Good-quality Galvanized-plate Rain Cover/ Conveyor Cover With CE ISO (YDT-6)
-
Stainless-steel Rain Cover for Belt Conveyor/ Conveyor Belt Cover With CE ISO SGS
-
Long-life Color-plate Rain Cover With Inspection Window for Belt Conveyor
-
Long-life Galvanized-plate Rain Cover/ Wind Cover for Belt Conveyor
-
Long-life Stainless-steel Rain Cover/ Wind Cover for Belt Conveyor
-
Long-life Color-plate Rain Cover/ Wind Cover for Belt Conveyor
Product Details
Place of Origin | Shandong, China | Brand Name | LBHI | |
Model Number | YDT-8 |
Product Description

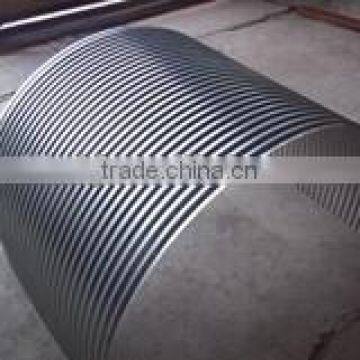

Long-life Galvanized-plate Rain Cover/ Fixed Conveyor Cover (YDT-8)
Performance&Application
Conveyor Rain Cover is mainly applied for protecting conveyor belt from rain, dust and wind, reducing losses during transportation process and ensure much more safe and reliable operation and having a great effect upon environmental protection.
Classification of Rain Cover:
According to material, including color plate conveyor cover,stainless steel rain cover, zinc coated rain cover and so on.
According to different types, including fixed rain cover, openable conveyor cover and rain cover with inspection window.
Features of our rain cover
1.Common rain cover is suitable for belt width of 500mm-2000mm, and the special one can be manufactured according to customers’ requirements;
2.The material of rain cover includes color plate, zinc-coated plate and stainless plate, and the thickness of color plate is 0.45mm-0.8mm.
3.The effective width of our rain cover is more than that of similar products.
Production Process:
The main production process mainly includes material selection, compression,cutting, bending,correction and package.
Model Number&Dimension
Model Number | Belt width(mm) |
|
|
| |||||||||||||||||||||||||||||||||
YDT5 | 500 | 89 | 125 | 740 | 800 | 862 | 846 | 573 | 423 | 862 | 846 | 573 | 423 | ||||||||||||||||||||||||
YDT6 | 650 | 108 | 131 | 890 | 950 | 862 | 996 | 648 | 498 | 862 | 996 | 648 | 429 | ||||||||||||||||||||||||
YDT8 | 800 | 108 | 153 | 1090 | 1150 | 862 | 1196 | 748 | 598 | 862 | 1196 | 748 | 598 | ||||||||||||||||||||||||
YDT10 | 1000 | 133 | 183.5 | 1290 | 1350 | 862 | 1396 | 848 | 698 | 862 | 1396 | 848 | 698 | ||||||||||||||||||||||||
YDT12 | 1200 | 133 | 183.5 | 1490 | 1570 | 862 | 1606 | 953 | 803 | 862 | 1606 | 953 | 803 | ||||||||||||||||||||||||
YDT14 | 1400 | 159 | 253.5 | 1730 | 1810 | 862 | 1856 | 1078 | 928 | 862 | 1856 | 1078 | 928 | ||||||||||||||||||||||||
YDT16 | 1600 | 159 | 253.5 | 1930 | 2010 | 862 | 2056 | 1173 | 1028 | 862 | 2056 | 1178 | 1028 | ||||||||||||||||||||||||
YDT18 | 1800 | 159 | 283.5 | 2200 | 2280 | 862 | 2300 | 1280 | 1150 | 862 | 2300 | 1280 | 1150 | ||||||||||||||||||||||||
YDT20 | 2000 | 159 | 283.5 | 2420 | 2500 | 862 | 2546 | 1423 | 1273 | 862 | 2546 | 1423 | 1273 |
1.Packing:
We all take standard export packing cases made of exemption plates that thickness of the composite plates are about the 9mm to 15mm according with the export requirements.Of course,We also can take the wooden cases made of solid wood with fumigation and supply the Inspection Certificate of Fumigation.
2.Freight:
(1)Shipping:We cooperate with good international ship agency to ensure the interests of the buyer that the buyer can receive the goods in time.We usually accept liner shipping so that we should contact duly and co-operate on the freight peak to solve those problems of transportation.If you have any other requirements,Please tell us and consult with it.
(2)Express and Air transport:We also move goods by express and air transport if you really have emergency demand for these goods .But we can’t take the resulting costs and the scale of the goods must be small.
(3)International multimodal transport:The qualified MTO takes the transportation of the goods to make sure to arrive in terminal on time.We use container transport in general with the exception of special circumstances.
LIBO HEAVY INDUSTRY SCIENCE&TECHNOLOGY CO.,Ltd. is specialized in design and manufacture of belt conveyor and key components, such as rollers, pulleys,disc brake, transmission drive, take-UPS, belt cleaner, impact bed, coupling and so on. our products have been widely applied in coal mine, power station, cement plant, iron mine and wharf.
There are more than 800 employees in total, including 244 engineers. Among these technical staff, 109 R&D personnel for engineering departments, 66 sales engineers for sales department and 69 welding engineers, Equipment engineers,Process engineers and QC engineers for producing department.
