HIGH CONFIGURATION 2515 TWO HEADS AND SIX SPINDLES RELIEF CNC ROUTER (RACK TYPE)
- QINGDAO
- T/T L/C D/P D/A Credit Card
You May Like
-
GOOD QUALITY 2515 HIGH CONFIGURATION SERVO RELIEF CNC ROUTER/ MACHINE CARVING SOLID WOOD FURNITURE
-
Multi Head 4 Axis 3d Scanner Cnc Machines for Sale
-
4 AXIS 1825 CYLINDER AND PLANE CNC ROUTERS FOR 3D RELIEF CARVING
-
STEPPER SYSTEM RELIEF CNC ROUTER/CARVING MACHINE 1818 WITH SIX SPINDLES FOR FURNITURE
-
3D HIGH CONFIGURATION RELIEF CNC ROUTER SIX SPINDLES EUROPEAN FURNITURE ,CRAFTS ARTS
-
MULTI HEADS SERVO DRIVE RELIEF CNC ROUTER 1618 FOR ROSEWOOD FURNITURE (BALL SCREW TYPE)
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | MISSILE | Model Number | 2515 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

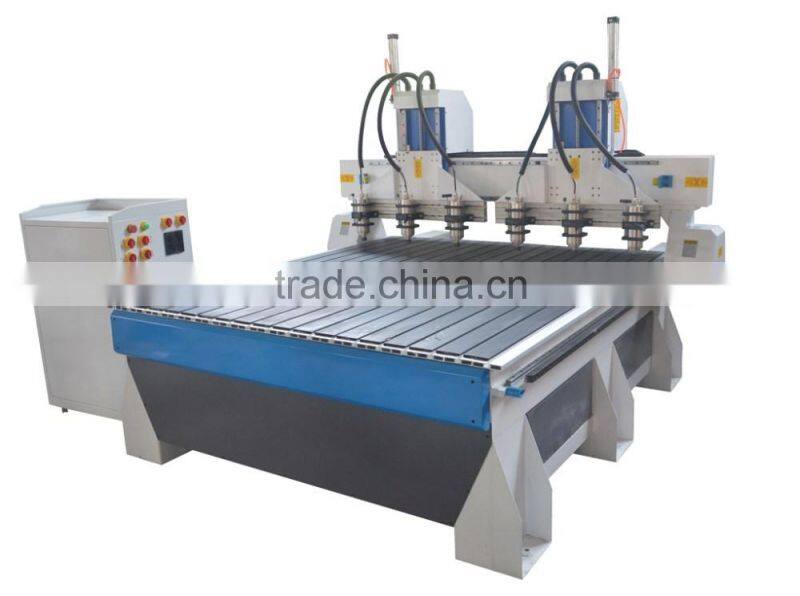

HIGH CONFIGURATION 2515 TWO HEADS AND SIX SPINDLES RELIEF CNC ROUTER (RACK TYPE)
FEATURES
Structure : welded thick square-tube steel, whole body aging treatment, highly controlled rate of deformation .
Transmission: X and Y axis equipped with high precision high rigidity helical rack-pinion.Y axis is with two sides driving, high speed ,powerful

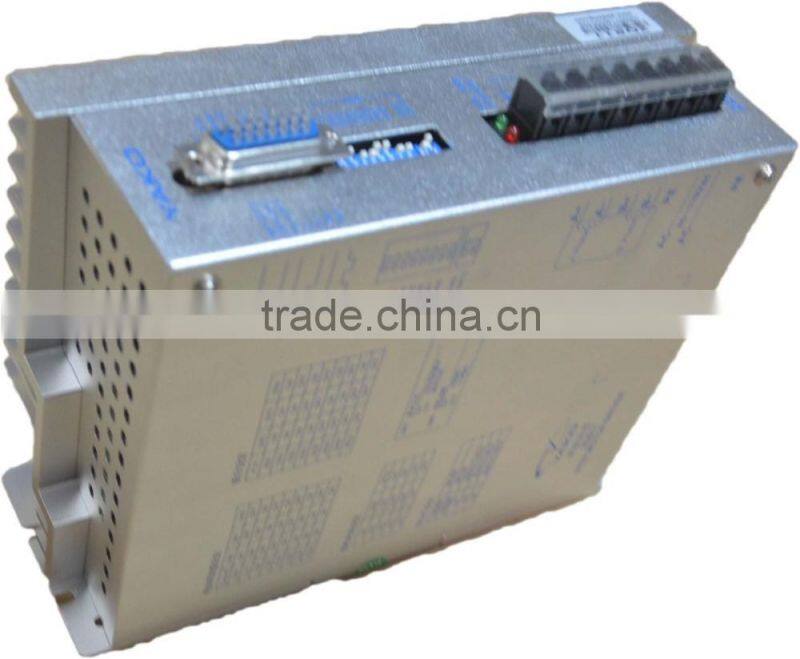

Driver: Servo system,not break ,not misplace.
Control system : NC studio control system ,PC based control. It has the function of breaking point memorize function , which can back to work after accident (cutter break) or the next day.
Optional :Air cooling or water cooling spindle ,imported servo available ,customized different models.
| X,Y,Z Working Area | 2500x1500x200mm (opitioinal other model) |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| X,Y,Z Repositioning Accuracy | ±0.05mm |
| Table Surface | Aluminum T-slot Table |
| Frame | Square pipe Welded Structure |
| X, Y axis transmission | Rack and Pinion gear |

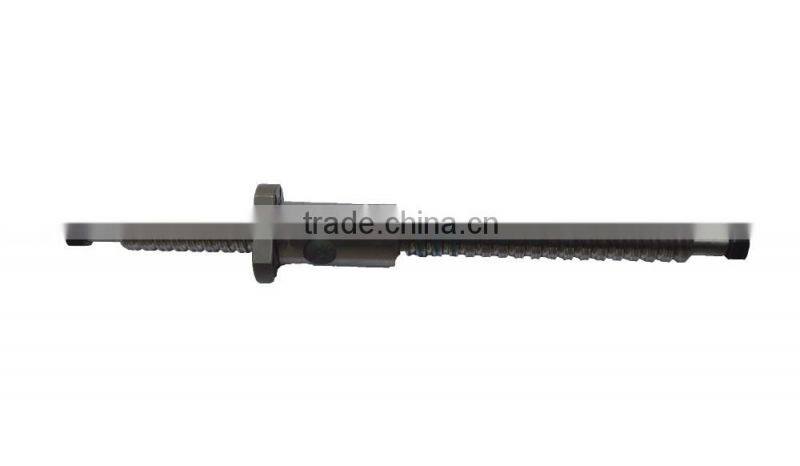

| Z axis transmission | Ball Screw |
| Max. Traveling speed | 40000mm/min |
| Max. Working speed | 25000mm/min |
| Soft working system | Windows2000/XP/98 |
| Rail Configuration | 25 square rail( opitional 20/30) |
| Resolution | 0.01mm |
| Spindle Power | Water-cooling 1.5KW (opitional Airr-cooling spindle ) |
| Spindle rotationg Speed | 0-24000RPM |
| Drive Motors | Servo |
| Working Voltage | AC380V/50Hz,3PH (Opition: AC220V/50HZ) |
| Operating System | Ncstudio system |
| Computer Interface | USB |
| Command Language | G code, u00, mmg, PLT, HPG |
| Software Compatibility | JDPaint |

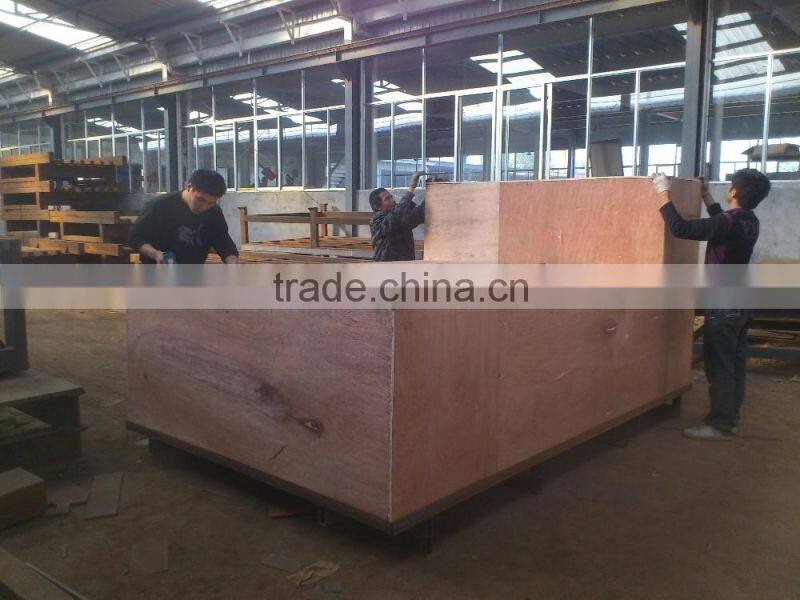

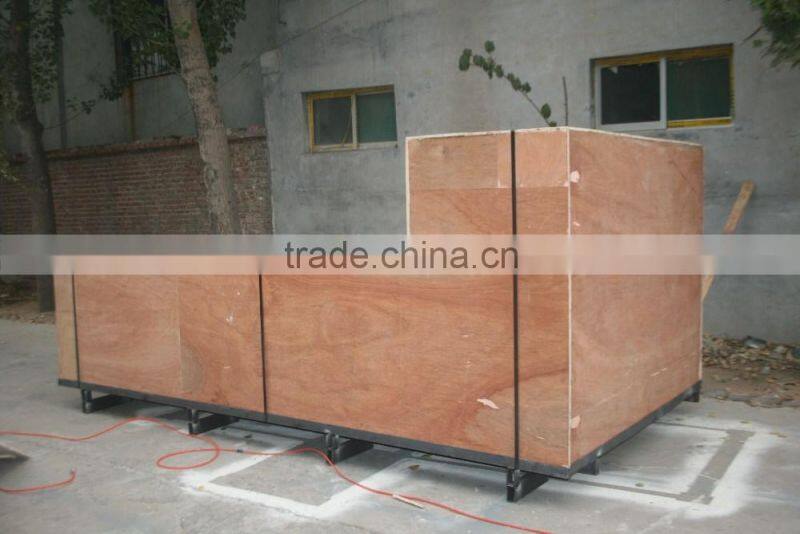

| Packing | Wooden case |
| N.W. | 1300KG |
MAIN APPLICATIOIN:

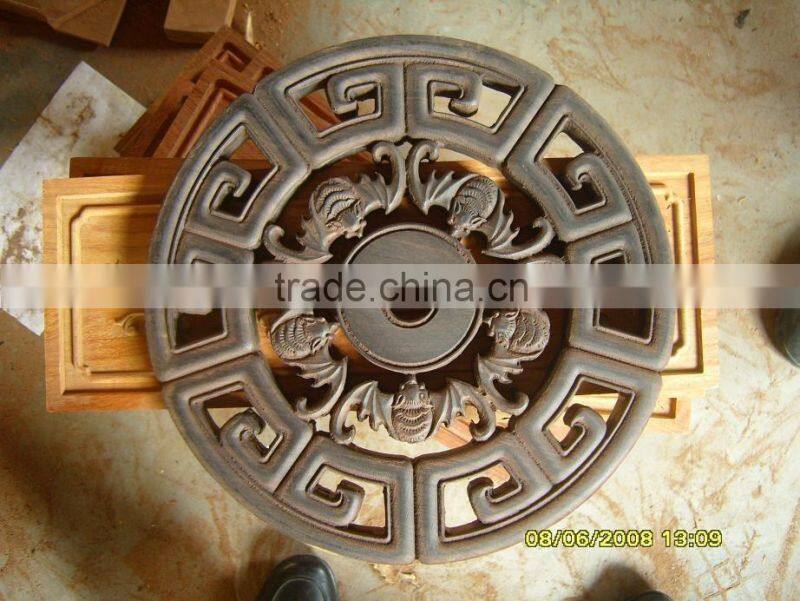

European furniture carving ,powerful ,deep engraving.
Guarantee & Aftersales Service:
1.Guarantee for one year
2.24-hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
FAQ
Questions and answer:
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
Q3.If we donot know how to use the machine,can you teach us? Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
WELCOME TO VISIT OUR FACTORY !!!
