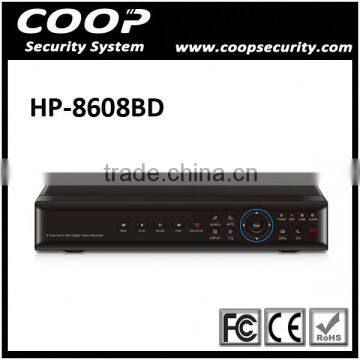

China Cheap CCTV DVR CIF HDMI Stand Alone Real Time DVR CCTV Network HDD DVR

Model

HP-8604BD

HP-8608BD

Channel

4CH

8CH

Operating System

Embedded LINUX

Video

Video Compression

H.264

Record Resolution

D1/Half-D1/CIF

Frame Rate

PAL: D1/Half-D1/ CIF@25fps

NTSC: D1/Half-D1/ CIF@30fps adjustable

Bit Rate

128kbps ~ 2048kbps

Audio

Audio Compression

ADPCM

Bit Rate

16kbps

Voice Talkback

Two-way Talkback

Hard Disk

Interface

1CH SATA/ 2CH SATA

Capacity

Max 2TB(1*2TB)/ Max 4TB(2*2TB)

Basic Functions

Recording Mode

Schedule, manual >alarm>motion detection

Multi-playback

1/4/all simultaneously

Backup Method

USB Flash drive/USB HDD/ USB CD&DVD-RW/Network

Alarm Trigger

Buzzer, Alarm, Recording, PTZ movement, Email, Channel pop-up

PTZ Control

Support preset point, cruise

Digital zoom

Live view zoom, playback zoom

Pre-record

0~30s

Multi-language

More than 15 languages, customizable.

Network

Networking Mode

Support PPPOE, static IP, DHCP, 3G

Web browser

Support Windows platform IE6-IE10, Chrome, Firefox, Opera, Safari, etc.

Client Software

Support Windows and MAC OS platform

CMS

Support Windows platform

Mobile Device

Support iPhone, iPad, Android, Live view & playback

DDNS

Build-in special freee DDNS and Third-party DDNS

P2P Cloud ID

Support

Input Output Interface

Video Input

4CH, BNC (1.0Vp-p, 75Ω)

8CH, BNC(1.0Vp-p, 75Ω)

Video Output

1CH, BNC (1.0Vp-p, 75Ω)

1CH, VGA (1280x1024, 1024x768, 800x600)

1CH, HDMI 1920x1080

Audio Input

4CH, RCA(optional)

8CH, RCA

Audio Output

1CH, RCA

Alarm Input

4CH, on-off input (optional)

8CH, on-off input (optional)

Alarm Output

1CH, on-off output (optional)

Network Port

1CH, RJ45 10/100M Ethernet interface

Serial Interface

1CH, RS485 PTZ (A +B -G)

USB

2CH USB Ports

Other

Power Supply

DC 12V/3A; DC12V/4A

Consumption

<10W (without HDD)
