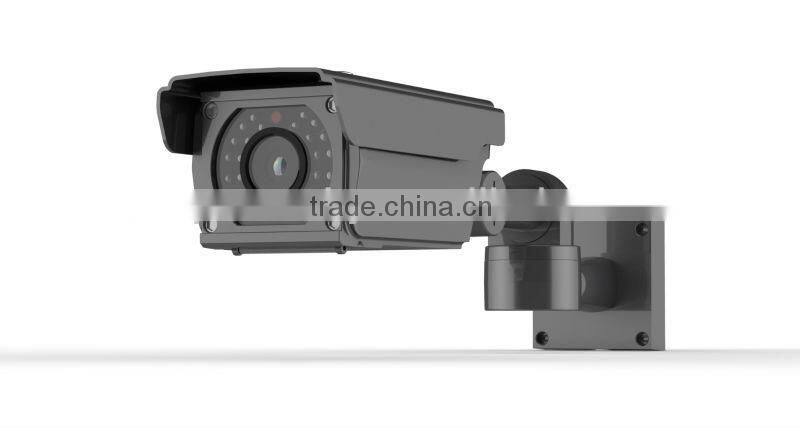

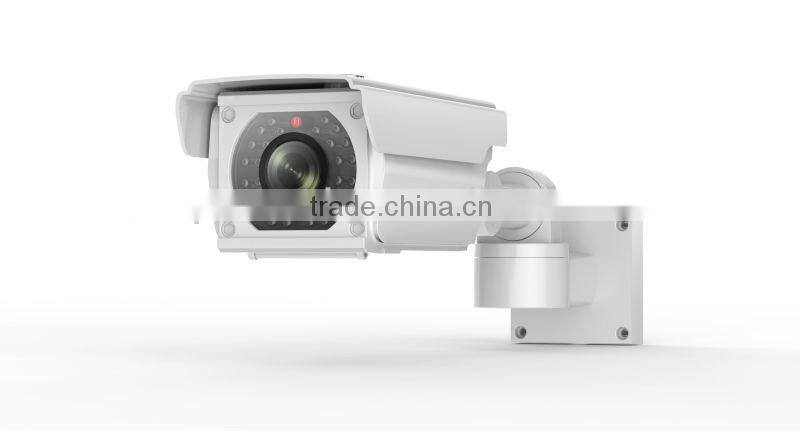

HP-700IR-K60S CCD Camera

Model NO

HP-700IR-K60S

Functions

General

CCD sensor

1/3” Sony Double-Scan 960H Exview CCD+SONY EFFIO-P DSP

Lens amount

2.8-12mm Mega pixel IRIS lens

Lens type

Vari-focal Lens (not c/cs amount)

Effective pixels

NTSC:976(H)x494(V) (480K Pixels)

PAL:976(H)x582(V) (570K Pixels)

Signal systems

PAL/NTSC

Synchronization

External/Internal

Shutter Speed

PAL:1/50~1/100000/s;NTSC:1/60~1/100000/s

S/N

More than 50dB(AGC OFF)

Horizontal resolution

700TVL(Color), 780(B/W)

Low illumination

Color: 0.3Lux(F1.2,50IRE,AGC ON),D/N:0Lux(F1.2,50IRE,AGC ON,IR LEDs ON)

D/N

D/N Auto Converter

IR CUT filter Optional (with IR CUT function)

D/N switching method

D/N controlled by CDS

D/N switching time

000~255

Camera Body

Size description

Magnificent design

DWS

Dual windows structure

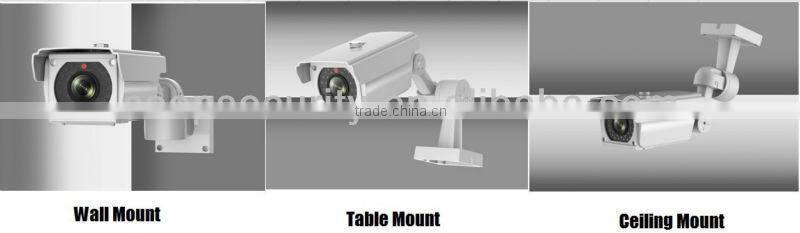

Bracket

CTB (Cable through bracket), 3 bracket(tilt, horizontal, pan)

Body color

STD: Metal gray, Ivory optional

Waterproof rating

IP66

OSD & Special functions

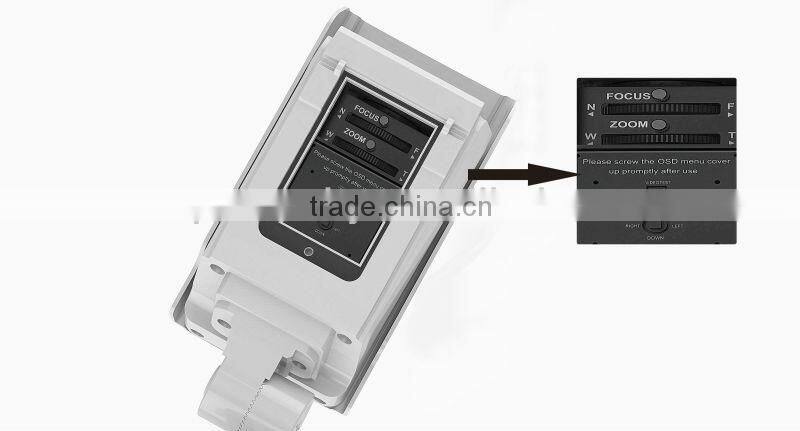

OSD menu

Yes, external adjustment

DNR

2DDNR&3DNDR

Sense up

Off/x2/x4/x6/x8/x16/x32/64/x128/x256

D-WDR

Super WDR

ATR

ATR-EX

HLC

Yes

Gamma

Yes

Privacy Masking

ON/OFF

Motion Detection

Yes

Color tint

Yes

BLC

Yes

Color adaptive

Yes

Brightness

0~255

White balance

AWB,ATW,MWB

Mirror

ON/OFF

Title settings

Yes

Title location

Selectable

IR LEDs

IR LEDs

42pcs5 IR LEDS

Smart IR

Yes

Infrared wavelength

850nm

IR distance

40m

IR LEDs ON/OFF

CDS auto control

Others(Approx.)

Video output

VBS 1.0 VPP(75ΩLoad)

Video output

BNC output

DC Type

Power

MAX. DC12V 700mA[8.5W](With Heater: DC12V 1.3A[16W])

Power supply

DC12V 1.0A (With Heater: DC12V 1.5A)

Dual Type

Power

MAX. DC12V 700mA[8.5W](With Heater: DC12V 1.3A[15W])

MAX.AC24V 650mA[16.0W](With Heater: AC24V 950mA[23W])

Power supply

DC12V 1.0A (With Heater: DC12V 1.5A)

AC24V 1.0A (With Heater: AC24V 1.5A)

Working temperature

-10⁰C~+50⁰C (With heater: -40⁰C~+50⁰C)

Working humidity

20~80% (Non-condensing)

Storage temperature

-10⁰C~+60⁰C

Storage humidity

20~95%(Non-condensing)

Camera Dimensions

261mm(L)×83mm(W)×102mm(H)
