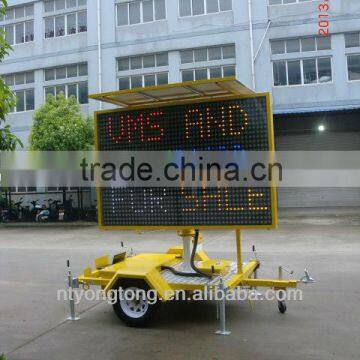

mobile VMS Board with trailer

Advanced warning to motorists of roadworks/conditions

School, Pedestrian or Roadwork Zones

Notification of road closures or detours

Used with Radar to display traffic speed

Promotion of Events, e.g Sporting, Festival

Product Advertising, e.g Car Yard, Property Development

Full Graphics

Non Glare, UV resistant polycarbonate

Highest Quality LED

Solar Powered/Environmental Friendly

Plug & Play controller and LED modules

Display Type

LED Full Matrix

Display Size

2550mm x 1710mm

Display Viewing Area

2400mm x 1600mm

Matrix

48 x 28, 4 X 5mm LED per pixel ( GREEN,RED,AMBER,WHITE,BLUE)

Screen

Non Glare UV polycarbonate

Photocell auto dimming

L X W X H

3950 X 2050 X 2700MM (with draw bar, fender)

Operating height

3950mm

Rotating degree for message panel

360°

Draw bar length

A frame type 2200mm

Trailer has the brake system for the message panel, so it can stop on the certain position

Four corner jack stands

15 inch, 3000LBS

Draw bar jack stand (with 6inch jockey wheel)

2000LBS

Coupler

5000LBS, 50mm ball

Wheel type

14 inch

Disc brake system for the wheel

Hydraulic function for operating message panel lift

Manual Hydraulic Backup

3mm alloy checker plate

PC for on site programming

Programming option

USB-RS232 Serial direct connect, LED WEB Manager remote control & GPS tracking

Windows Compliant Free automatic software updates

Predefined Images

90

Radar

Radar logging / remote removal, logging speed data / time traffic count

Large Storage up to 100 individual messages with various page sizes

Operating Voltage

DC12V

Solar Panel

3 x 140 watt

Battery

12Volt, 3x200AH deep cycle

Solar Controller

30AMP

Operation on batteries/solar Indefinite under normal conditions
