PU/Rubber Timing Belt
- Ningbo /Shanghai
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Type | Other, transmission | Use | Other, auto transmission | |
| Place of Origin | Zhejiang, China | Brand Name | customized |
Product Description

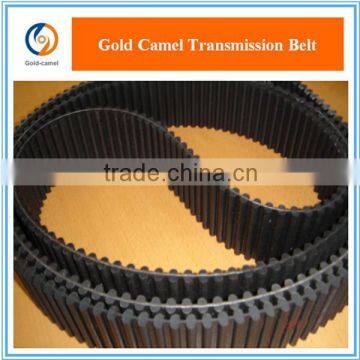

PU/Rubber Timing Belt
1.Industrial timing belt:
Our timing belts are manufactured in imported neoprene rubber and PU materials which have various tension members by vulcanize process. High quality raw material and the advanced craft unify enable the product to have the high strength and the good flexibility. Especially suitable for power transmission systems
Specification Availability:
T Type synchronous belt(mm)
| Type | Pitch | Tooth height | Belt thickness | Angle |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XXL | 3.175 | 0.76 | 1.52 | 50 |
| XL | 5.080 | 1.27 | 2.30 | 50 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 2.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
| T2.5 | 2.5 | 0.7 | 1.30 | 40 |
| T5 | 5 | 1.20 | 2.20 | 40 |
| T10 | 10 | 2.50 | 4.50 | 40 |
| T20 | 20 | 5 | 8.00 | 40 |
| A5 | 5 | 1.2 | 2.70 | 50 |
| AT10 | 10 | 2.5 | 5.00 | 50 |
| AT20 | 20 | 5 | 8.00 | 50 |
Arc tooth synchronous belt(mm)
| Gear Code | Type | Pitch | Tooth Height | Belt Thickness |
| HTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6.00 | |
| 14M | 14 | 6.02 | 10.00 | |
| 20M | 20 | 8.4 | 13.20 | |
| STD | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.20 | |
| S4.5M | 4.5 | 1.71 | 2.81 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| RPP/HPPD | RP2M | 2 | 0.76 | 1.36 |
| RP3M | 3 | 1.15 | 1.9 | |
| RP5M | 5 | 1.95 | 3.5 | |
| RP8M | 8 | 3.2 | 5.5 | |
| RP14M | 14 | 6.00 | 10 |
Double Sided Timing Belt(mm)
| Type | W | T |
| D-MXL | 0.508 | 1.53 |
| D-XL | 0.508 | 3.05 |
| D-L | 0.762 | 4.56 |
| D-H | 1.372 | 5.95 |
| D-XH | 2.794 | 15.49 |
| D-XXH | 3.048 | 22.11 |
| D-T2.5 | 0.6 | 2 |
| D-T5 | 1 | 3.4 |
| D-T10 | 2 | 7 |
| D-T20 | 3 | 13 |
| D-AT10 | 2 | 7 |
| HTD.DA-3M | 0.76 | 3.1 |
| HTD.DA-5M | 1.143 | 5.26 |
| HTD.DA-8M | 1.372 | 8.17 |
| HTD.DA-14M | 2.8 | 14.84 |
| HTD.DA-S8M | 1.372 | 7.48  |

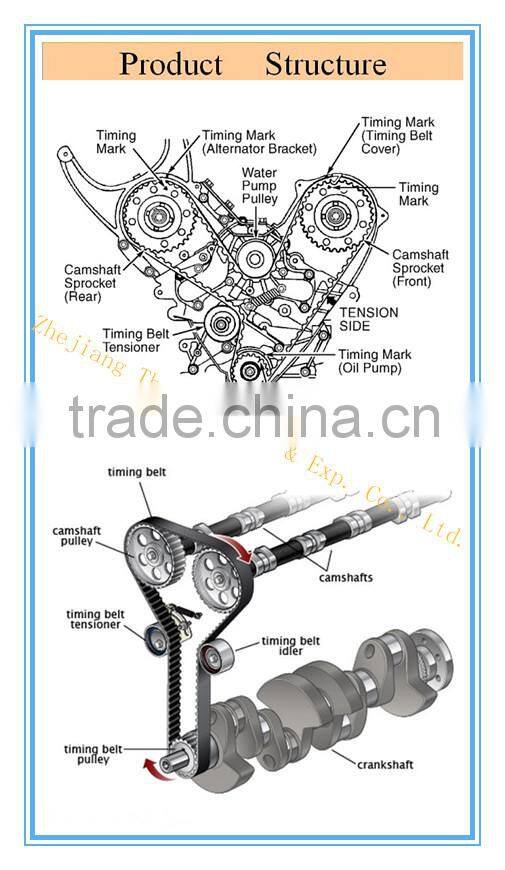

2.Automotive timing belt:
Automotive timing belt uses CR or HNBR as main rubber material, produced strictly according to technical standard. The belt has the feature of perfect tooth shape, long service life, less noise, high force of driving, better driving precision, better wearable performance.
Specification Availability:
| Type | pb | ht | hs |
| MR | 9.525 | 3.54 | 5.69 |
| MY | 8.00 | 3.06 | 5.21 |
| YU | 8.00 | 3.11 | 5.20 |
| RU | 9.525 | 3.56 | 5.70 |
| ZA | 9.525 | 1.91 | 4.10 |
| ZB | 9.525 | 2.29 | 4.50 |
| ZBS | 9.525 | 2.76 | 5.06 |
| ZAS | 9.525 | 2.32 | 4.50 |
| S8M | 8.00 | 3.05 | 5.30 |
| ZLB | 9.525 | 2.70 | 5.05 |
| RPP | 9.525 | 2.25 | 4.50 |
