1port Rj45 +1 Bnc ip Over Coax Converter Eoc Extender Rj45 Ethernet Extender
- Shenzhen
- T/T Credit Card
You May Like
-
2bnc Port 1rj45 Ethernet Over Coaxial Extender for IP Cameras
-
New OEM 2000m Coaxial Extender Ethernet Extender Rj45 Extender
-
1 BNC+1 Rj45 2000m With Power Supply IP Camera to Coaxial Extender /Ethernet Over Coax
-
Extender Over Coax Cable Rj45 Ethernet Extender Lan Cable Extender
-
Coaxial Extender 2000m Coax Converter ip Over Coax Converter
-
Coaxial Ethernet Extender for IP Camera ip Extender
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | GSD-902C |
Product Description

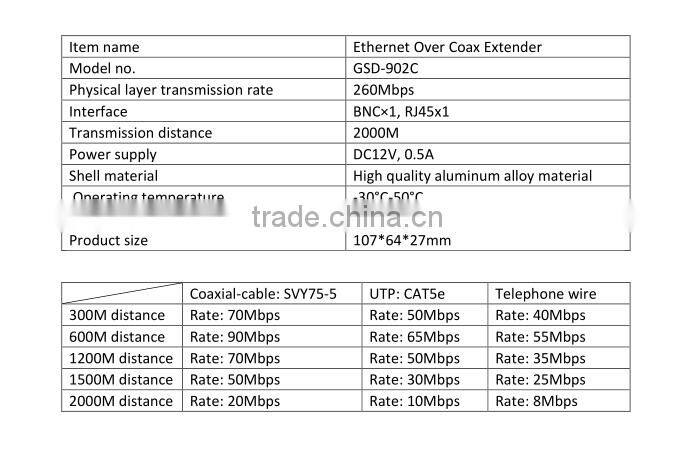

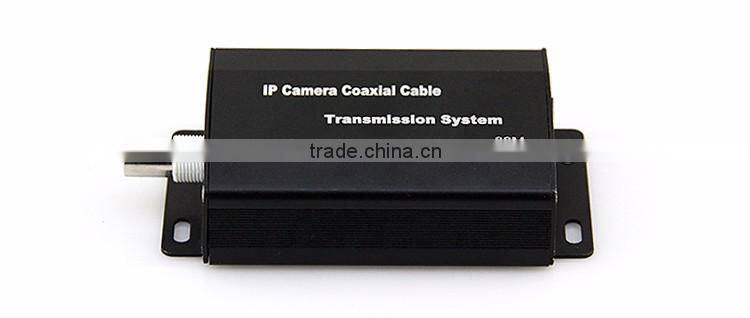

2000m 12V 1BNC +1rj45 Ethernet over coax EOC extender
The product is based on the IEEE newest P1901 technology, support in a variety of media such as coaxial cables, telephone lines and twisted pair to transmit hd video and high-speed data signal. Its long transmission distance, high speed of communication, support multimedia business, support grouping network.
Widely used in all kinds of LAN and wan network, network camera signal transmission, and EOC power supply system’s transmission system, etc.

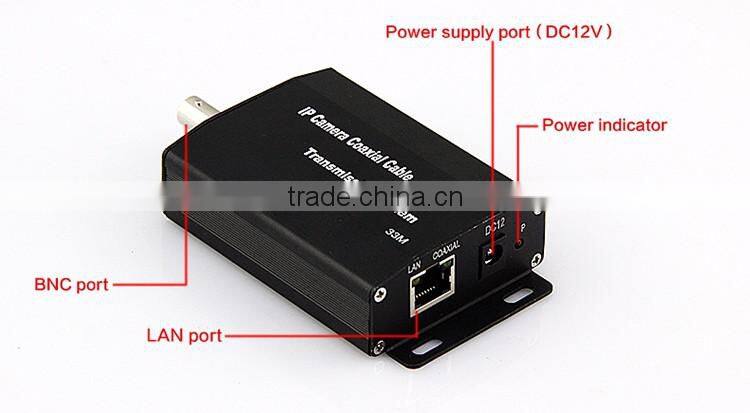

1. One 10/100Base TX (TX) Ethernet port with RJ-45 connector
2. Auto negotiation of speed and duplex mode on TX port
3. Auto MDI/MDIX on Ethernet port
4. IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX compliant

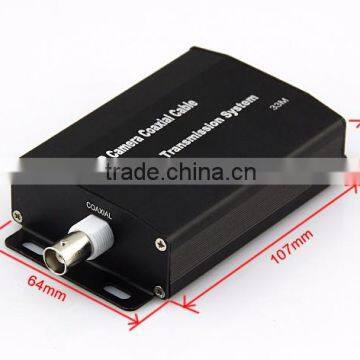

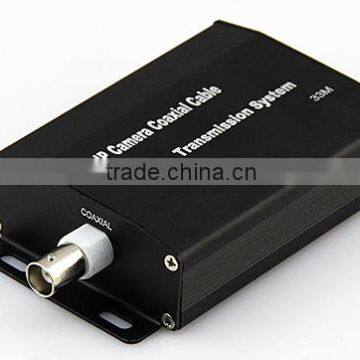

5. Line port uses BNC connector
6. Line port link is full-duplex up to 260Mbps over existing coaxial cable
7. A thread can be connected 6pcs products at the same time

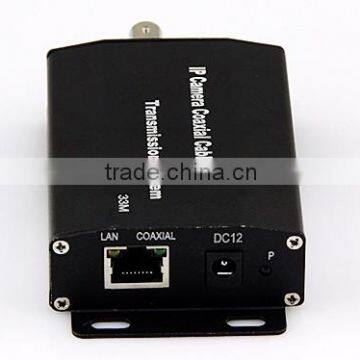

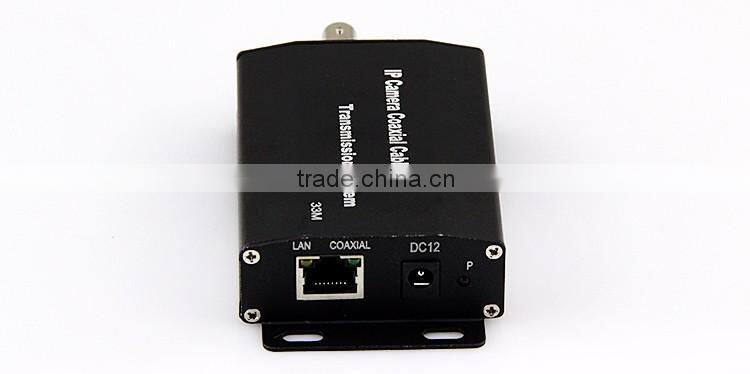

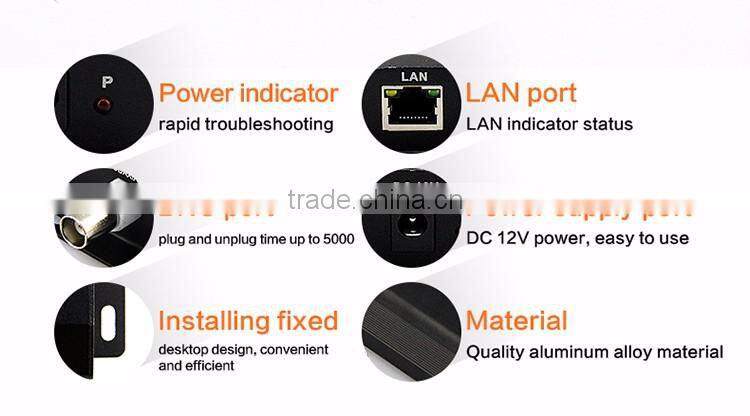

8. Status LED’s for monitoring and connection status
9. Encryption watchdog function, put an end to happen the crash
10. One year warranty, life-long maintenance

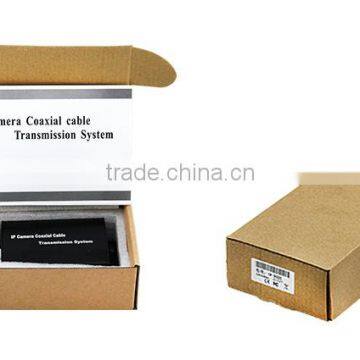

Packaging list: 1*EOC extender, 1*user manual, 1*guarantee card
Packaging size: 145mm*96mm*50mm/pc(including packaging), 1pc/box, carton packing.
