Product Details
| Place of Origin | Beijing, China | Brand Name | April Beacon | |
| Model Number | AprilBeacon 202 |
Product Description
UUID Programmable iBeacon / Battery Replaceableibeacon
company site:
/
Product Description
Our product have MFI certification iBC-14-00417 .April iBeacon can test distance at least 30m and have a strong signal. We can provide case and customed development for software with discount if you buy in a large number. You need CR2477 battery for this product but we don't offer battery.
Specifications
- Built-in iBeacon firmware
- Built-in a CR2477 battery holder
- Bluetooth Low Energy technology compatible
- Excellent link budget (up to 97dB)
- Suitable for long distance applications
- Accurate digital RSSI
- Compatible with CE and FCC regulation
- High performance and low power 8051 core MCU
- AES security coprocessor
iBeacon Descriptions
- Application for advertisement and location
- Built in pairing password to prevent others to modify the settings
- Support customize your own iBeacon configuration including UUID etc.
- Tx Power configurable
- Advertising frequecy configurable
- Support upgrade firmware through OAD (air upgrade)
- Built in JTAG port for customized other application firmware as a standalone system
Default Settings
- Name of iBeacon: BlueBeacon
- ProximityUUID: E2C56DB5-DFFB-48D2-B060-D0F5A71096E0
- Major and Minor: 0, 0 (Only allowed numeric)
- Measured power: -59 (Numeric only)
- Pairing passowrd: 19566 (Numeric only)
| Item | Value | Remarks |
| Firmware | iBeacon | Version 1.3.1 |
| Battery model | CR2450 | Coin battery, 3.0Vdc, 1 pc |
| Operation Frequency | 2400-2483.5MHz | Programmable |
| Frequency Error | +/- 20KHz | |
| Modulation | Q-QPSK | |
| Standby current | 100uA | Depends on duty cycle/broadcasting frequency |
| Broadcasting Frequency | 900mS | Duty cycle |
| Output Power | 0 dBm | Default setting, programmable |
| Receiving Sensitivity | -93dBm | High gain mode |
| Transmission distance | 30 meters | BER<0.1%, Open space |
| Antenna | 50ohm | On board/ PCB Antenna |
| Size | 26mm*34.82mm*9mm | |
| Operation Voltage | 2.0-3.6V | DC |
50sets/carton gross weight:2kg
We are the largest iBeacon provider here in China. We have several customers which are the biggest Indoor navigation service providers. They have bought bunch of our beacons in their projects. During the process of providing deployment services, we have developed many features in our APP, and gained abundant practical experiences in batching deployment.

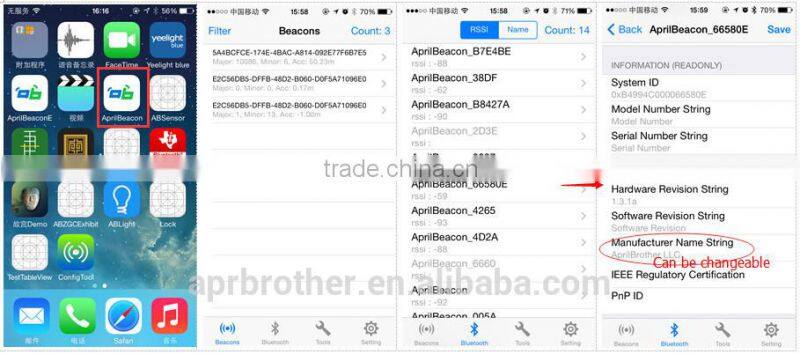

1) Our App AprilBeacon(both Android and iOS version) can detect and modify beacon's uuid, major, minor and other parameters.

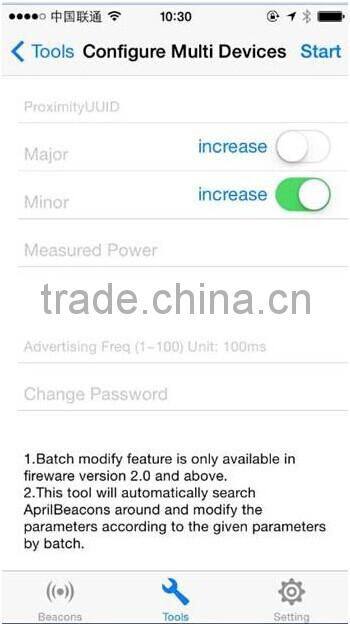

2) Batch modify function help you change beacons' parameters in bulk.

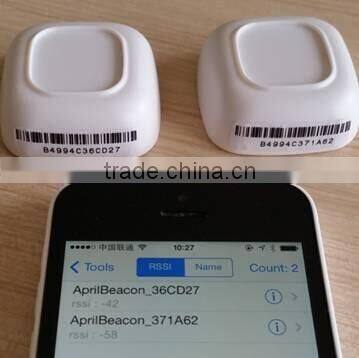

3) Mac address barcode on cases, easy to recognize specific one.
4) During the maintaining process, you will face many problems such asiBeacon lost, battery low power etc. We have platform Skymap(). It is a online service for your operational groups.
5) Our certificates: MFI certification iBC-14-00417, ISO9001:2008, CE, FCC, RoHS
We can offer samples to test for you and we can customize the case based on your requirement. We offer SDK of iOS and Android for developing purpose. Also we can have case with our logo "AP" (April Brother) on it and you can require your customized logo to be engraved on the case. We offer cases if you order in a large amount and quotation for larger amount is negotiable.

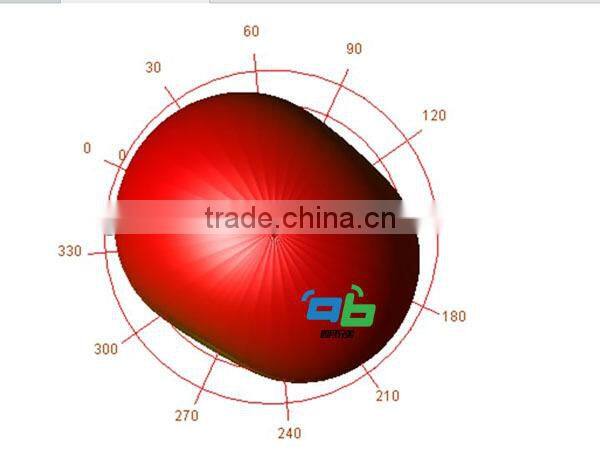

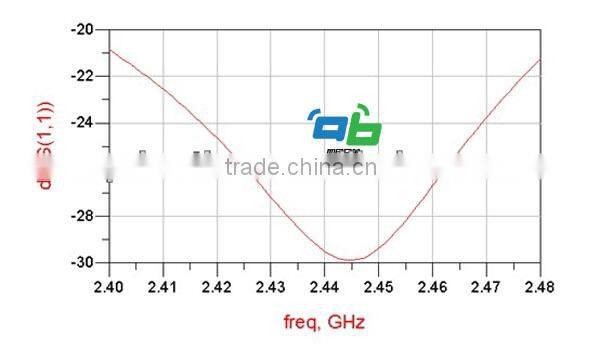

April Beacon module antenna signal testing diagram
order from us and join our R&D bbs now !
1 Q: What is the difference between using Apple SDK and April Brother’s SDK ? Is there any additional functionality on your SDK?
April Brother's SDK provide some function for configure the April Beacon.
For example:
proximityUUID
major
minor
etc...
Otherwise it's same with Apple SDK.
2 Q: Can I get SDK for Android and iOS?
A: Yes, we can give you SDK for both Android 4.3 and iOS 7.0.
3 Q: Can I have our own logo and in what kind of way?
A: Sure. We can have your logo engraved or printed on your case and also we can put customized sticker on it. Besides, we can customize case based on your requirement if you send us your detailed requirement of your case.
4 Q: Where can I download or air upgrade firmware or device?
A: we will provide you the link for this .
5.Q:Would you also be able to make custom housing for the circuits?
A: Yes, we do custom housing for the circuits as well as the custom iBeacon with logo on the pcb.
