Home > Products > New Products > Hot Sales:SC simplex/duplex fiber connectors
Hot Sales:SC simplex/duplex fiber connectors
- Ports inShenzhen
- Credit Card
You May Like
-
network solution china product for externalpower supply:14 slots 2U blake media converter chassis
-
Hot Sales:SC/LC/FC/ST fiber optical connectors
-
Hot Sales:FC port 4V fiber video converter with Rj45
-
4E1+1ETH PDH Multiplexer
-
China pdh Fiber Optic Multiplexer
-
4 E1 to 2 Ethernet interface protocol converter
Product Details
| Place of Origin | Guangdong, China | Brand Name | TINCAM, TINCAM | |
| Model Number | TBC |
Product Description

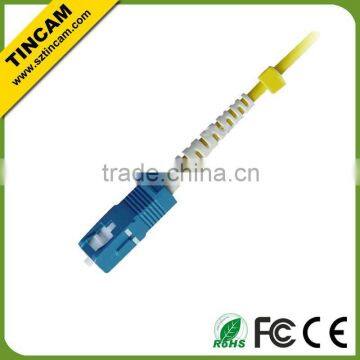

SC simplex/duplex fiber connectors
The Fiber Optic Connectors (Commonly we call Patch Cords) is a length of optical cable with
connectors fixed on two ends to realize the optical path active connection. Pigtail is a length fiber
cable with only one connector fixed on one end. If both sides of the connector or its end-face are
different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode
and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,
LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
Fiber Optic patch cord Features
1.Price-Competitive
2.Low Insertion Loss & PDL
3. Customized lengths(1m/2m/3m)
4.Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber
5.Polishing Options: PC/UPC/APC
6.Feature Connector with Ceramic Ferrules
Applications
1.Access Network
2.Telecom/CATV Systems
3.FTTx
Detailed description of patch cord
Parameters | Standard Fiber Cable Assemblies | |
Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
Jacket Materials | LSZH/OFNR/PVC | |
Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
Ferrule Materials | Ceramic | |
Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
Insertion Losss(dB) | ≤ 0.3dB | ≤ 0.3dB |
Return Loss(dB) | ≥45dB(PC/UPC) | ≥35dB(PC/UPC) |
Exchangeability | ≤ 0.2dB | |
Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
Operating Temperature (° C) | -10~ + 70 | |
Storage Temperature (° C) | -40 ~ +85 | |
Package | 1unit/bag | |
