Home > Products > Protocol Converter > Fast E1/10/100m Protocol Converter
Fast E1/10/100m Protocol Converter
Negotiable
/ Set
2 Sets(Min.Order)
- yantian/shekou
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Tincam | |
| Model Number | TBC-FE6006 |
Product Description

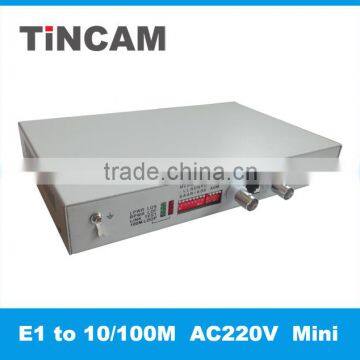

Fast E1/10/100m Protocol Converter
Features:
· High performance bridge for 10(100)Base-T Ethernet extension
· Fully compatible with IEEE 802.3 and Ethernet Standards
· E1 channel: both framed & unframed are OK, both 75 & 120ohm are OK
· Ethernet Port: 10Mbps, Full/Half Duplex Mode compatible
· Ethernet ports support MDI/MDI-X selectionable
· Allow transmitting and receiving VLAN data packet
· 15000 frames per second filtering and forwarding rate
· 1000 MAC address LAN table, and automatic LAN table learning and aging
· Standalone and Module optional
· Power of Chassis: 2 Slots for slide in power supplier module, AC or DC power supplier module, Redundant Power supported
· AC220V±20% or DC-48V power input
Specifications
· LAN port
Standard: Conforms to IEEE802.3 / 10(100)Base-T Ethernet
Data rate: 10Mbps(20Mbps/10Base-T in Full duplex topology)
Compatible on Full/Half duplex topology
Connectors: RJ-45 Connector
Transfer distance: <150m
Standard: Conforms to IEEE802.3 / 10(100)Base-T Ethernet
Data rate: 10Mbps(20Mbps/10Base-T in Full duplex topology)
Compatible on Full/Half duplex topology
Connectors: RJ-45 Connector
Transfer distance: <150m
· E1 port
Standard: ITU G.703, G.704,
Jitter Performance: According to ITU G.823
Bit rate: N×64Kbps, N=1~31 (Fractional Mode) or 2.048Mbps(Full Mode)
Line Code: HDB3
Line Impedance: 75/120ohms optional
Pulse Amplitude: Nominal 2.37V±10%
Standard: ITU G.703, G.704,
Jitter Performance: According to ITU G.823
Bit rate: N×64Kbps, N=1~31 (Fractional Mode) or 2.048Mbps(Full Mode)
Line Code: HDB3
Line Impedance: 75/120ohms optional
Pulse Amplitude: Nominal 2.37V±10%
General
· Voltage: AC 220V±20% or DC -48V
·Power Consumption: <3 Watts
· Temperature: 0-50°C
· Humidity: 0-90%(non-condensing)
· Size: (Width: from left to right)
Standalone: 272mm(Width)× 139mm(Deep)× 41mm(High)
Chassis: 438mm(Width)× 252mm(Deep)× 178mm(High)
Standalone: 272mm(Width)× 139mm(Deep)× 41mm(High)
Chassis: 438mm(Width)× 252mm(Deep)× 178mm(High)
