KUNBO Small & Large Food Processing Steam Jacketed Kettle 100-1000L

FOB Price

US$ 600 - 3,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	KUNBO
Model Number	KB-JK005	Type	Cooking Equipment
After-sales Service Provided	Overseas third-party support available

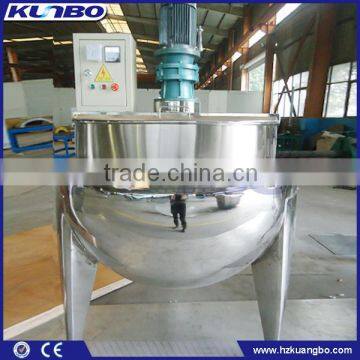

KUNBO 100-1000L Food Processing Cooking Double Jacket Steam Jacketed Kettle

Electric Heating Jacket Kettle
Company introducation	We Kuangbo is a production enterprise of pharmaceutical, dairy, food and beer-making equipment, alongside biological engineering, chemical containers, and bespoke products. Our products are widely used in beer production, pharmaceuticals, beverage industries, biotechnology and other fields.
Usage	It is widely used in food processing, cooking in large dining room, ect, it can effciently increase the food quality, shorten time.
Material	Stainless Steel 304 or 316L
Technology & Design	1. Open top with hinged lid
	2. Tilting Type
	3. Thickness: Inner 5mm; Jacket 4mm; Cladding 3mm
	4. Insulation: PU (polyurethane) 50mm
	5. Electric heating
	6. Agitation device, Anchor mixer, 0-60Rpm, VSD ( speed control)
	7. Support frame with wheels made of stainless steel.
	8. Accessories: Temperature Probe; Control Panel; Butterfly valve, ect.
Volume	100-1000L
Advantage	1.We also can design the configuration details as your requirements
Advantage	2.Competitive price and also higher quality tank.
Minimum order	One unit
Payment term	T/T or L/C
Package	Export standard package
Market	At home and abroad

Jacket Kettle Technical Parameter
Working Volume (L)	*Dimension of Kettle (DH) mm**	Heating Space (Square Meter)	Jacket Volume ( L)	PU Insulation (mm)	Motor Power (kw)	Heating Power (kw)	Mixing Speed (r/min)
100	Dia 700	0.87	24.2	50	0.55	12	ABB/Siemens 35-120 RPM
200	Dia 800	1.23	34.4	50	0.75	12
300	Dia 900	1.65	42.9	50	1.1	16
400	Dia 1100	1.99	52.7	50	1.5	16
500	Dia 1100	2.21	66.75	50	1.5	24
600	Dia 1200	2.43	120	50	1.5	24
700	Dia 1200	2.43	120	50	2.2	24
800	Dia 1300	2.65	142	50	2.2	30
1000	Dia 1300	2.65	142	50	2.2	48

FAQ:

1. Can your brewing equipment make both lager and ale?

A: Yes, our beer brewing equipment can make both lager and ale.

2. How to achieve temperature control?

A: The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor.

The brewing tanks with rock wool to keep warm, the fermenters and bright beer tank with PU as

cooling jacket to keep cool.

3. Is it possible to supply installation in our country?

A: Yes, we could supply our clients over sea service and direct the installation and brewing.
