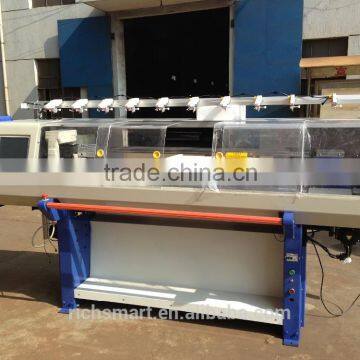

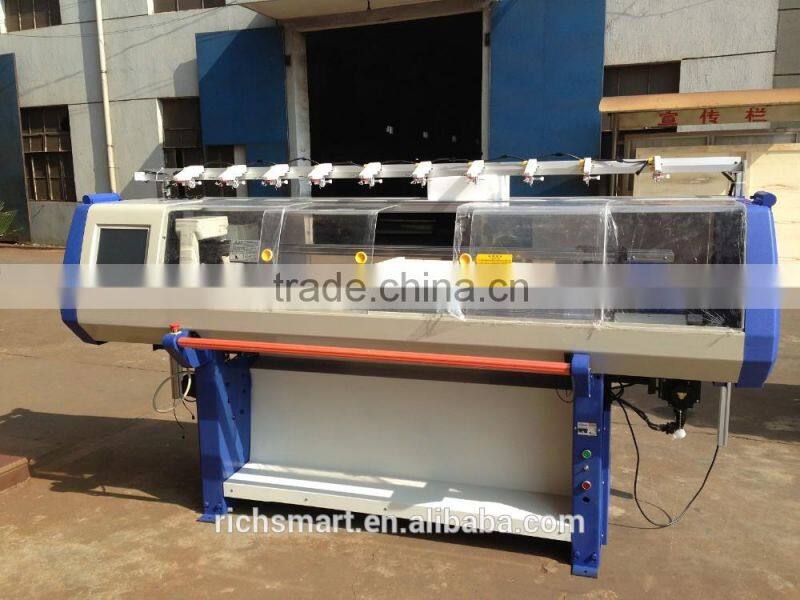

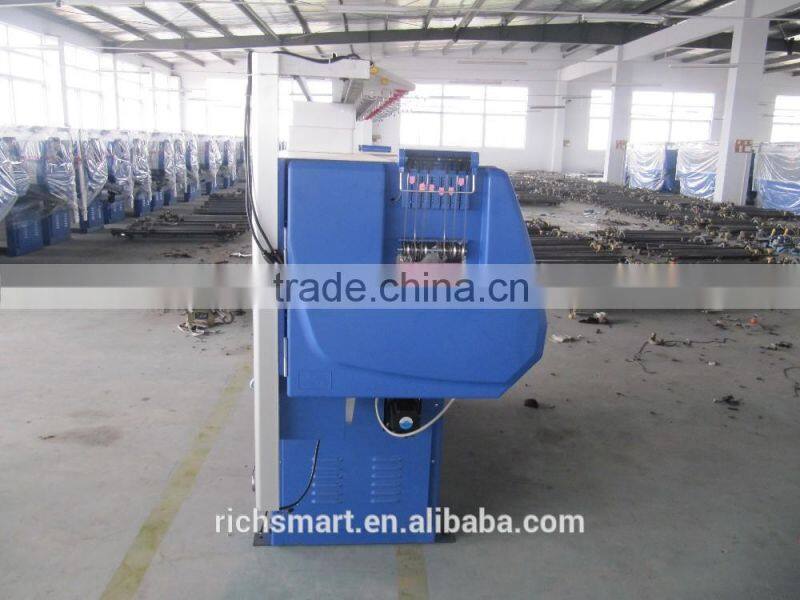

36"/44"/52" Automatic Flat Collar Knitting Machine

Gauge

12G 14G 16G

Knitting width

36" 44"  52"(normal)

Knitting speed

Controlled by AC servo motor with 32 sections speed optional, max 1.2m/s.with high-speed digital signal processor (DSP) to control IGBT to achieve accurate electric current output.

Knitting system

single carriage / single system

Knitting function

Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other irregular patterns.

Racking system

Controlled by AC servo motor racking within 3 inches and with fine micro adjustable function.

Encoder

Advanced encoder adopted.

Transfer cam

Combined transfer cam, capable of transferring alone, full and half cardigan, not knitting, high efficiency.

Stitch density

Controlled by stepping motor, 24 sections density selectable.

Yarn feeder

2x6 yarn feeders on both sides of 1 guide rail of 3, switchover on any position of needle bed.

Protection system

The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device.

Control system

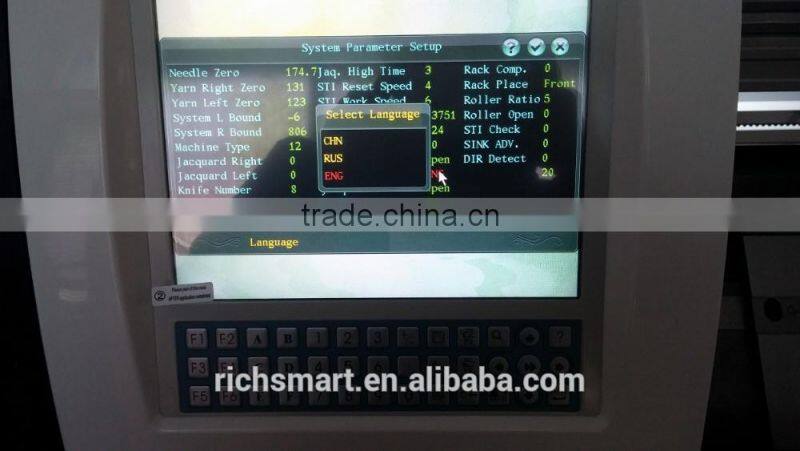

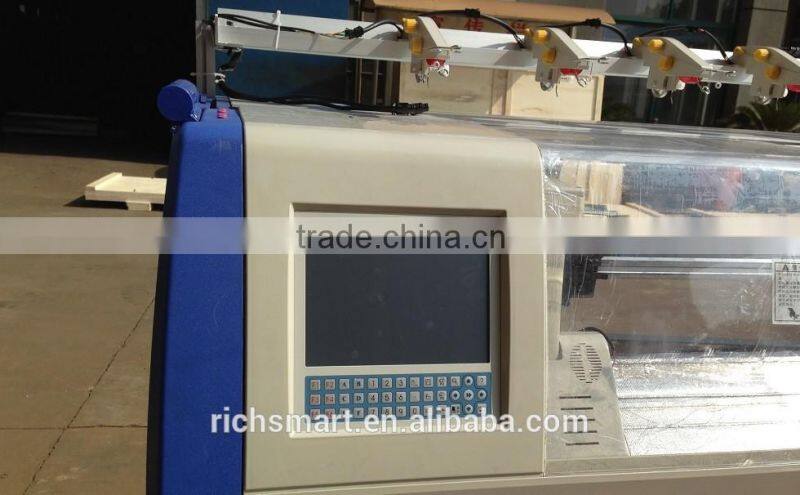

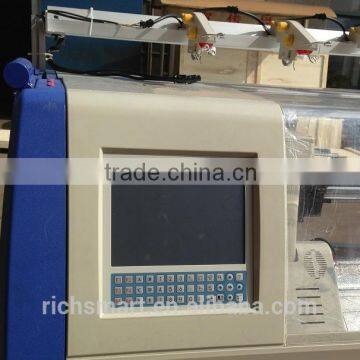

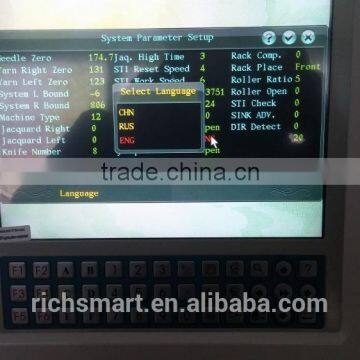

1.   LCD touch screen, graphical interface. USB and network compatible, with expanded memory of up to 1G.

2.   Monitoring display: Various operating parameters can be displayed and can be adjusted anytime.

3.   Design system and control system (softwares) are easy to update for free.

Power supply

Single-phase 220V and triples-phase 380V, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter.
