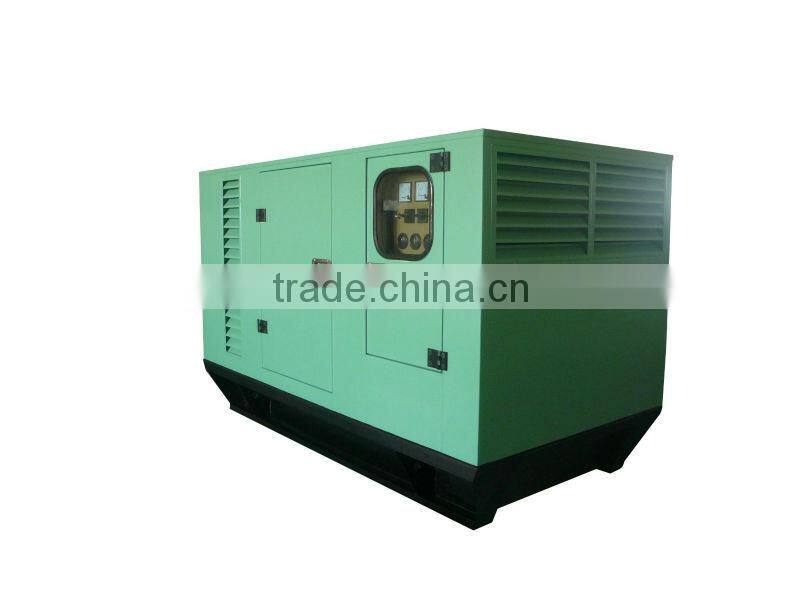

CE Approved Famous Brand Low Noise 20kva Silent Diesel Generator
- Shanghai
- T/T L/C Credit Card
You May Like
-
Weichai Power 20kva Silent Diesel Generator
-
CE Approved 40-900kw Silent Disel Generator
-
30% off CE Approved Low Price Sale 10kva Silent Diesel Generator
-
CE Approved 200kw Silent Diesel Generator,best Price Generator
-
700kva Silent Diesel Powered Generators With CE,ISO,BV,ABS
-
30% off Top Seller HND-MWM Engine 250kva Powerful Genset
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JG | |
| Model Number | JGY16GF | Output Type | AC Three Phase | |
| Speed | 1500rpm | Frequency | 50hz | |
| Rated Power | 16kw | Rated Voltage | 400v | |
| Rated Current | 30A |
Product Description
Specifications
1.20kva silent diesel generator2.ISO,CE, certificate
3.global service for 12 month
4.reliable performance
1. 20kva silent diesel generator general feature:
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
CE approved famous brand low noise 20kva silent diesel generator
2.Weichai engine technical data:
Engine Model | WP2.1D18E2 |
Configuration | 4 cycle,4 cylinder |
Aspiration | Turbocharged |
Bore×Stroke | 85*92mm |
Displacement | 2.1L |
Prime Power | 17.5kw |
Speed Governor | Electronic |
Cooling System | water-cooled |
Speed Stability (%) | ≤5% |
Fuel consumption | 2.5 L/h |
Starter Motor | 24V |
3.Sunvim alternator technical data:
Alternator Model | SV184 |
Capacity | 16KW |
Voltage | 400V |
Frequency | 50HZ |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage Adjust range | ≥5% |
Voltage Regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
4.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
5. Document:
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC

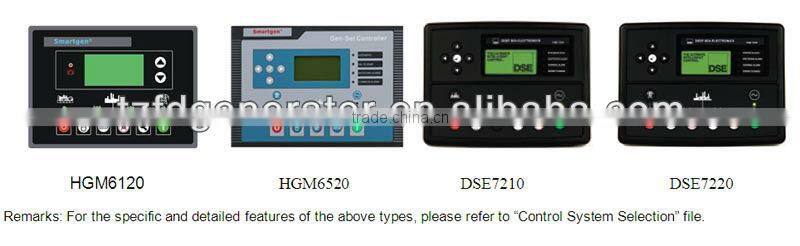

6.picture of control system:
