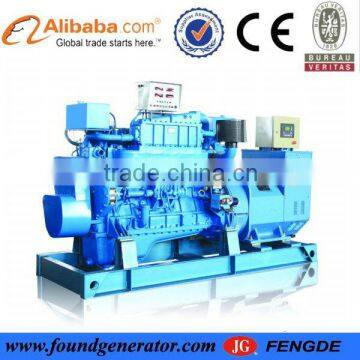

Good quality and hot sale shangchai marine diesel generator with CE approved

Generator Data

Generator type

Common type

Generator Model

CCFJ90-J-Y

Prime power

90KW/112KVA

Standby power

99KW/124KVA

Voltage

380V/220V

Frequency

50HZ/1500 rpm

Power factor

0.8(lag)

Overall dimension

2800×960×1360mm

Weight

2300KG

Overload

10% MAX.

Governor type

Electric

Altitude derating

1% for each 100m above 1000m

Temperature derating

2% per 5 above 55

Engine

Brand

SHANGCHAI

Model

6135ACaf

Configuration

4 cycle, 6 cylinder in lin

Aspiration

Tubocharged

Output

Rated output

Standby output

111.3KW

122.4KW

Bore and Stroke

135×150mm

Rated Speed , rpm

1500

Displacement

12.0L

Fuel consumption

≤205g/kw.h

Starting method

24 Voltage DC , electric

Engine filter system

Dry type air filter, double fuel filter, oil filter,

coolant filter

Alternator

Brand

LANDIAN

Model

TFXW-250M4-H

Capacity

Rated output

Standby output

90KW/112KVA

99KW/124KVA

Voltage

380V/220V

Frequency & speed

50HZ / 1500rpm

Power factor

0.8(lag)

Exciter type

Brushless , self-excitingh

Ambient temp.

-15-55

Phase and wire

3 phase and 4 wires

Isolation level

H

Auto voltage regulators(AVR)

An Electronic AVR with 3 phase , sensing for regulations of 0.5% or better and improved

   Performance is need , following control to be included in the AVR.

a)Voltage drop

b)Voltage level

c)Voltage gain

d)Shut down indicators

Protection class

IP21

Voltage regulation , steady state

≤±1%
