shangchai series diesel generating set,shangchai generator sets
- shanghai
- T/T D/P D/A Credit Card
You May Like
-
Good quality and hot sale shangchai marine diesel generator with CE approved
-
CCS approved marine diesel generator,chinese marine diesel engine
-
ZC&CCS approved 30Kw-300Kw chinese marine electric generators powered by Yuchai marine engines
-
ZC&CCS approved 30Kw-300Kw Marine electric generator diesel powered by Yuchai marine engines
-
ZC&CCS approved 30Kw-300Kw Yuchai Marine electrical diesel generator set for boats
-
ZC&CCS approved 30Kw-300Kw Yuchai Marine china electricity generator for boats
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JG | |
| Model Number | CCFJ120J | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50HZ | |
| Rated Power | 120KW | Rated Voltage | 400V | |
| Rated Current | 216A |
Product Description
Specifications
1.shangchai generator sets2.ISO,CE certificate
3.global service for 12 month
4.reliable performance
1.Shangchai marine generation set general feature:
1.Genuine Shangchai diesel engine
2.Radiator 50°C max, fans are driven by belt, with safety guard
3.Genuine Leroy Somer, Stamford, Marathon, or ENGGA alternator
4.Choice of manual/auto and AMF control panels and protection systems
5.Digital auto-start panel
6.Anti Vibration Suspension Absorber
7.Dry type air filter, fuel filter, oil filter
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2.Shangchai Diesel Engine Technical Data
Engine Model | 6135AZD-1 |
Number of Cylinders | 6 |
Cylinder arrangement | Cylinders In line |
Cycle | 4 Cycle |
Aspiration | Turbocharged |
Bore×Stroke | 135 x140 mm |
Prime Power/Speed | 139.7KW/1500rpm |
Speed Governor | electrical |
Cooling System | Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 205g/kw.h |
Starter Motor | DC24V, |
3.Marathon Alternator Technical Data
Alternator model | MP-120-4 |
Alternator manufacturer | Marathon |
Exciter type | Single bearing, Brushless, Self-excited |
Rated output prime power | 120 kW |
Rated speed | 1500 RPM |
Rated frequency | 50 Hz |
Phase | 3 |
Rated voltage | 400 V(Available with customer requirements) |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation grade | H |
Protection grade | IP23 |
4.Warranty
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
5.Certificate & Document
1) Alternator
operation and maintenance manual 1PC
2)Engine
operation and maintenance manual 1PC
3)Generator
Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC

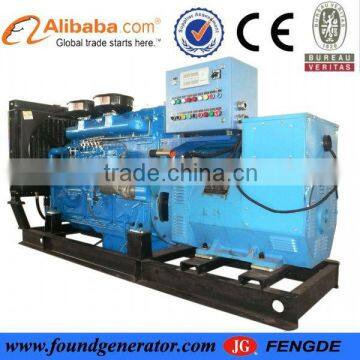

6.picture :
