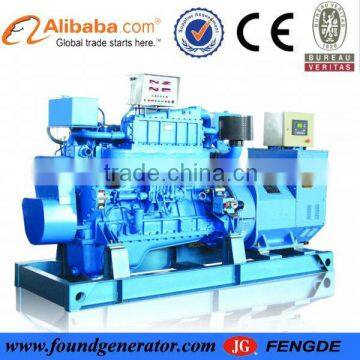

BV,CCS approved 120kw shangchai marine
- shanghai
- T/T D/P D/A Credit Card
You May Like
-
shangchai series diesel generating set,shangchai generator sets
-
Good quality and hot sale shangchai marine diesel generator with CE approved
-
CCS approved marine diesel generator,chinese marine diesel engine
-
ZC&CCS approved 30Kw-300Kw chinese marine electric generators powered by Yuchai marine engines
-
ZC&CCS approved 30Kw-300Kw Marine electric generator diesel powered by Yuchai marine engines
-
ZC&CCS approved 30Kw-300Kw Yuchai Marine electrical diesel generator set for boats
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JG | |
| Model Number | CCFJ120JW | Output Type | AC Three Phase | |
| Speed | 1500RPM | Frequency | 50HZ | |
| Rated Power | 120KW | Rated Voltage | 400V | |
| Rated Current | 216A |
Product Description
Specifications
1.shangchai marine with pretty price2.ISO,CE certificate
3.one year warranty
4.global service for 12 month
1.Shangchai generator general feature:
Feature:
Marine generator can use for Marine generator,
Marine emergency generator or Harbor generator
We use the marine synchronouse Alternator with the brands of Stamford , Maraphon and Simens marine Alternator etc. Also can be supplied at the request of customers.
Parallel connection: Two and more normal marine generating sets can transfer loading without stoping , and can realize parallel.
Protection function :Thare are over-limit alarming for speed , oil pressure, cooling water temperature and oil temperature.
Can provide CCS, BV , ABS,GL,RS, DNV classification certificate.
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
2.Shangchai Engine Technical Data
Engine Model | 6135AZD-1 |
Number of Cylinders | 6 |
Cylinder arrangement | Cylinders In line |
Cycle | 4 Cycle |
Aspiration | Turbocharged |
Bore×Stroke | 135 x140 mm |
Prime Power/Speed | 139.7KW/1500rpm |
Speed Governor | electrical |
Cooling System | Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 205g/kw.h |
Starter Motor | DC24V, |
3.Marathon Alternator Technical Data
Alternator model | MP-120-4 |
Alternator manufacturer | Marathon |
Exciter type | Single bearing, Brushless, Self-excited |
Rated output prime power | 120 kW |
Rated speed | 1500 RPM |
Rated frequency | 50 Hz |
Phase | 3 |
Rated voltage | 400 V(Available with customer requirements) |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation grade | H |
Protection grade | IP23 |
4.Warranty
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
5.Certificate & Document
a. Alternator operation and maintenance manual CCS certificate |
1PC 1PC |
b. Engine operation and maintenance manual CCS certificate EIAPPcertificate |
1PC 1PC 1PC |
c. Generator CCS certificate Overall drawings of the set ELECTRINIC SYSTEM DRAWING Bench test Packing list |
1PC 1PC 1PC 1PC 1PC |
d. Control panel CCS certificate operation and maintenance manual |
1PC 1PC |
