SALZER SA16 3-2 Manual Changeover Switch (TUV,CE and CB Approved )
Negotiable
1 (Min. Order)
- Ningbo Shanghai
You May Like
-
SALZER SA16 3-4 Changeover Switches 16A, 25A, 32A, 63A, 125A, 160A (TUV,CE and CB Approved )
-
SALZER SA16 3-4 A-0-M Change Over Switches (TUV,CE and CB Approved )
-
SALZER SA16 3-3 Function of Change Over Switch (TUV,CE and CB Approved )
-
SALZER SA16 3-1 Change Over Switches (TUV,CE and CB Approved )
-
SALZER SA16 2-4 Multi-step Cam Switch (TUV,CE and CB Approved )
-
SALZER TUV,CE and CB Approved SA16 2-2 Rotary Electrical Cam Switches
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SALZER | |
| Model Number | SA16 3-2 | Max. Current | 16A | |
| Max. Voltage | 690VAC | Mechanical Life | 100000Times |
Product Description
Specifications
Manual Changeover Switch1) Current rating: 16A
2) TUV,CE and CB Approved
3)Function: A-0-M

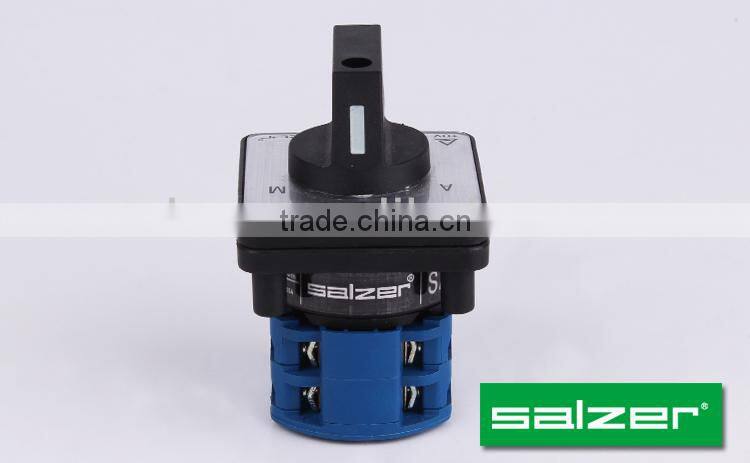

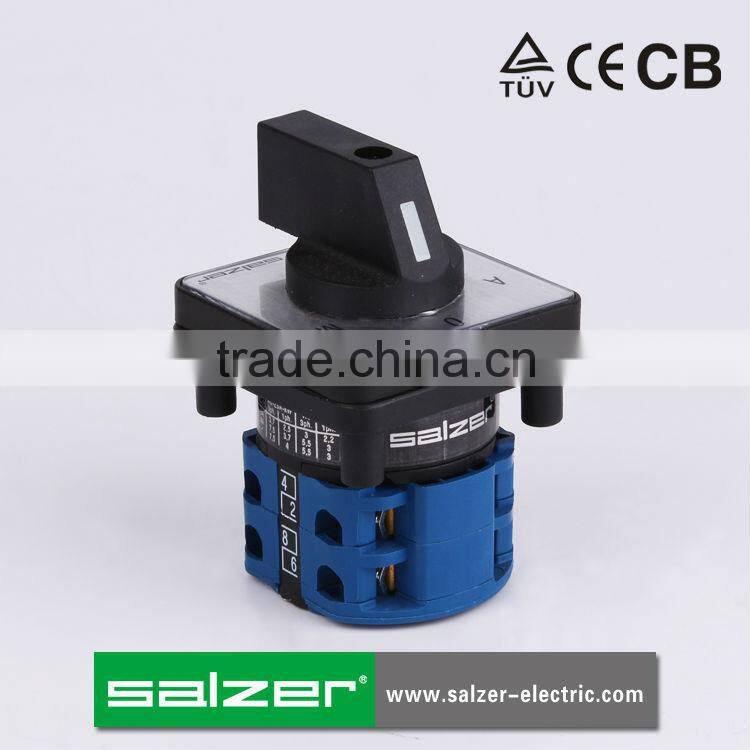

SALZER SA16 3-2 Manual Changeover Switch (TUV,CE and CB Approved )
SA Cam Switch
SA series cam switches offer a solution for cam switch applications. Different contact designs, contact materials and terminals allow for their use as control switches, instrumentation switches and motor control switches, as well as in electronic circuitry and in aggressive environments according to IEC 60947-3.
General Information
| Type | SA16, SA25, SA32, SA63, SA125, SA160 |
| Current | 16A, 25A, 32A, 63A, 125A, 160A |
| Max. Voltage | 690VAC |
| Pole | 1Pole, 2Pole, 3Pole, 4Pole |
| Plate Size | M1 (48X48mm), M2 (64x64mm), M3 (88x88mm) |

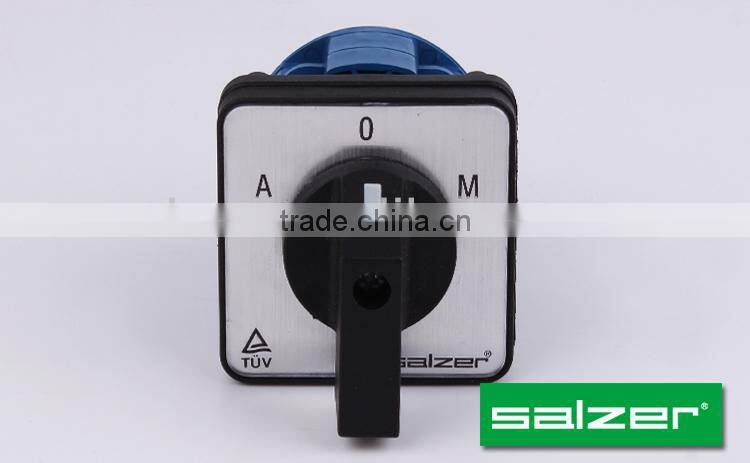

| Faceplate | A-0-M |
| Degree of Rotation | 30°, 45°, 60°, 90° |
| Ingress Protection | 16A and 25A has IP20 with finger protection. |
The cam switch is mainly applicable to circuit of 690VAC and below, 50/60Hz. The switch has 6 current ratings: 16A, 25A, 32A, 63A, 125A and 160A. There is finger protection for current of 16A, 25A and 32A.
Switches 16A to 32A have 2 to 12 positions and 1 to 12 stages with many different panels and handles. Switches 63A to 160A have 2 to 12 positions and 1 to 8 stages.
The degree of rotation: 30°, 45°, 60°, 90°
Function: Ammeter, Voltmeter, OFF-ON, 0-1, 1-0-2, A-O-M, FOR-OFF-REV, O-Y-Δ, Δ-Y-O-Y-Δ, 0-1-Star, Multi-step switches and so on
About us
Please don't hesitate to contact us if any special specifications are needed.
