Home > Products > New Products > Single output constant voltage 120W 5V s-50-24 power supply

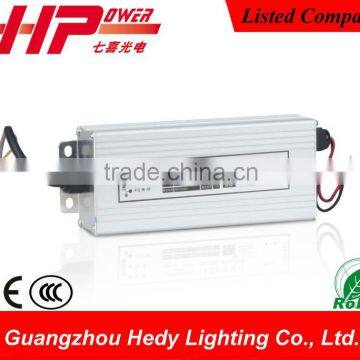

Single output constant voltage 120W 5V s-50-24 power supply

FOB Price

USD $8 - $8 / Set

1 Set(Min.Order)

Port Guangzhou port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HPower
Model Number	HA-120W-5V	Output Power	101 - 200W
Output Type	Single	Input Voltage	Other, AC 90~132V or AC 180~264V
Output Voltage	DC 5V	Output Frequency	N/A
Output Current	24A

Product Description

Specifications

120W 5V s-50-24 power supply
Output voltage: 5V
Constant voltage
CE RoHS

Product Description

120W 5V s-50-24 power supply description:

Product name: 120W rainproof led switching power supply

Rated power: 120W

Output voltage: DC 5V

Ripple & Noise (max.): 100mVp-p

Over load protection: 110~115% rated output power

Over voltage protection: 5.5~6.75V

Over temperature protection: 100°C±5°

Business type: Manufacturer/Factory

Trade Mark: HPower

Certificates: CE, RoHS, CCC

Warranty: 2 years

120W 5V s-50-24 power supply features:

v Rainproof--hang on the wall

v Universal AC input/Full range

v Protection: Short circuit/Overload /Over Voltage/Over Temperature

v Cooling by free air convection

v Bult-in constant current limiting circuit

v LED indicator for power on

v 100% full load bult-in test

120W 5V s-50-24 power supply applications:

1.Digital and electronic products;

2.LCD, LED, CCTV camera;

3.Communications and security products;

4.Electrical equipment, Instrumentation

5.LED display, led strip, nixie tube, street light, lamp;

6. Building lighting decoration.

120W 5V s-50-24 power supply details:

120w rainproof Series, include output 3.3v, 5v, 12v, 15v, 24v and 36v.

Model		HA-120W-3.3V	HA-120W-5V	HA-120W-12V	HA-120W-15V	HA-120W-24V	HA-120W-36V
Output	DC Voltage	3.3V	5V	12V	15V	24V	36V
	Rated Current	36A	24A	10A	8A	5A	3.5A
	Current Range	0~36A	0~24A	0~10A	0~8A	0~5A	0~3.5A
	Rated Power	118.8W	120W	120W	120W	120W	126W
	Ripple & Noise (max.)	100mVp-p	100mVp-p	100mVp-p	150mVp-p	150mVp-p	150mVp-p
	Voltage Adj. Range	3.14~3.63V	4.75~5.5V	11.4~13.2V	14.3~16.5V	22.8~26.4V	34.2~39.6V
	Voltage Tolerance	±2.0%	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%
	Line Regulation	±1.0%	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%
	Load Regulation	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%
	Setup,Rise time	600ms,30ms at full load
	Hold Up Time(Typ.)	13ms at full load
Input	Voltage Range	90~132VAC/180~264VAC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	85%	85%	86%	85%	88%	90%
	AC Current (Typ.)	5A/115VAC 3A/230VAC
	Inrush Current (Typ.)	20A/115VAC 40A/230VAC
	Leakage Current	<2mA / 240VAC
Protection	Over Load	110~115% rated output power
	Over Load	Protection type: Shut down O/P,re-power on to recover
	Over Voltage	3.63~4.46V	5.5~6.75V	13.2~16.2V	16.5~20.25V	26.4~32.4	39.6~48.6V
	Over Voltage	Protection type: Shut down O/P,re-power on to recover
	Over Temperature	100°C±5°C(3.3V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others
	Over Temperature	Protection type: Shut down O/P,recovers automatically after temperature goes down
Environment	Working Temperature	-20~+60°C
	Working Humidity	20~90% RH Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC	Safety Standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others	MTBF	10000hrs MIL-HDBK-217F (25°C)
	Dimension	1707040mm (LWH)
	Packing	0.4Kg;

120W 5V s-50-24 power supply structural drawing:

120W 5V s-50-24 power supply derating curve:

Packaging & Shipping

120W 5V s-50-24 power supply packaging and shipping:

0.4Kg/pc;

Lead time: 7-15 days

Delivery method:

ü Express service: FedEx/DHL/UPS/TNT/EMS

ü Air transportation: factory to airport

ü Ocean shipping: factory to port
