Home > Products > Mobile Light Tower > diesel engine mobile light tower with 10kw generator

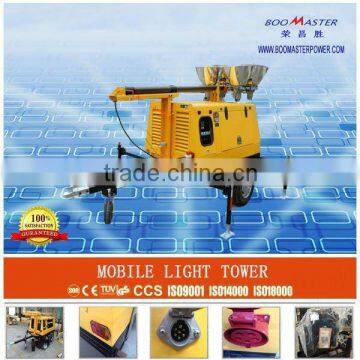

diesel engine mobile light tower with 10kw generator
US$ 1 - 6,999
/ Set
5 Sets(Min. Order)
- Fuzhou Port
- T/T Credit Card
You May Like
-
diesel engine mobile light tower with EPA certificate
-
diesel engine mobile light tower with 8.8kw/10kw generator
-
Pekrins engine mobile light tower with 360 degree non-continuous truning angle
-
Kubota engine mobile light tower with 4 x 1000w lamps
Quality Choice
-
Mobile generator light tower with 4 x 1000w lamps and 5kw generator
-
Mobile light tower with 4 x 400w lamps and 5kw generator
Product Details
| Place of Origin | Fujian, China | Brand Name | Boomaster / Perkins | |
| Model Number | BLT10000 | Output Type | AC Single Phase | |
| Speed | 1500rpm / 1800rpm | Frequency | 50/60hz | |
| Rated Power | 8.8kw / 11kw | Rated Voltage | 110/220, 230/400v |
Product Description
Specifications
Mobile light tower1 lamps: 4 X 1000w
2 .With 10KW diesel generator
3. Smartgen Digital Controller
Detailed Product Description
diesel engine mobile light tower BLT10000
| Mobile Light Towers | ||||
| Tower Light | Specifications | |||
| Height of Mast | 9M | |||
| Power of Lamps | 4*1000W Metal Halide, Square | |||
| Luminous Flux | 440000lm | |||
| Elevation of Mast | Manual/Electric/Pneumatic | |||
| Raising/lowing of Mast | Manual/Electric | |||
| Rotation of Mast | 360°, Manual | |||
| Windproof Ability | < 10M/S or 19KTS | |||
| Inclination | <10 degree | |||
| Lampholder | E40, Edison screw | |||
| Alternator | ||||
| Alternator Type | Brushless, with AVR | |||
| Alternator Model | Stamford | Leroy Somer | Chinese Brand | |
| PI044F | LSA40.VS2 | 164C | ||
| Frequency | 50Hz 60Hz | |||
| Continous AC Power | 10kVA 12 kVA | |||
| AC Voltage | 110/220, 115/230, 120/240V etc. | |||
| Phase Number | Single Phase | |||
| Power Factor | 1 | |||
| Insulation Class | H | |||
| Engine | ||||
| Engine Type | Water-cooled, 4-stroke, Diesel, 3-Cylinder | |||
| Engine Model | Kubota | Perkins | Quanchai | |
| D1505-BG | 403D-22G | QC480D | ||
| Aspiration | Natural | |||
| Emission Level | Stage2/Tier4 | Stage2/Tier4 | EU Stage A | |
| Engine Speed | 1500rpm 1800rpm | |||
| Fuel Capacity | 120L (base tank) | |||
| Full Tank Operating | 60 hr | |||
| Start System | Electric | |||
| Noise at 7M | 70 db(A) | |||
| Trailer | ||||
| Hitch | Ring or Ball | |||
| Tyre Diameter | 520MM | |||
| Stablizing Legs | 4 pcs, Manual | |||
| Suspension System | Leaf Spring Axle | |||
| Weight&Packing | ||||
| Net Weight | 1060 kg | |||
| Gross Weight | 1100 kg(Plywood Case) | |||
| Retracted Size | 4200x1370x1750 MM | |||
| 20'GP Qty (units) | 4 for Plywood Case/8 for nude packing | |||
| 40'HQ Qty (units) | 8 for Plywood Case/16 for nude packing | |||
