Highest Precision 2 Micron Oil Purifier Filter System for Factories, Mines and Enterprises

          Highest precision 2 micron  Oil Purifier system for factories, mines and enterprises

Features:

New polymer membrane filtration technology

•Selectivity characteristics of polymer membrane is core technology.

•Oil-water separating is easy.

•High precision and deep filtration

•Guarantee the cleanness index of industrial oil

•Improve the efficiency of the engine

•Prolong engine service life

•The cost of filtration is low

• Small volume

 Superiority:

Our machine used the newest membrane filter technology. the membrane element can wash and use again and again. so it can save much cost. membrane element has The characteristics of the oil drain. water and impurity can Successful intercept. and the clean oil pass . our precision can reach 2 micron. a hair is 80 micron, so you can think our precision , it is very high.

Function:

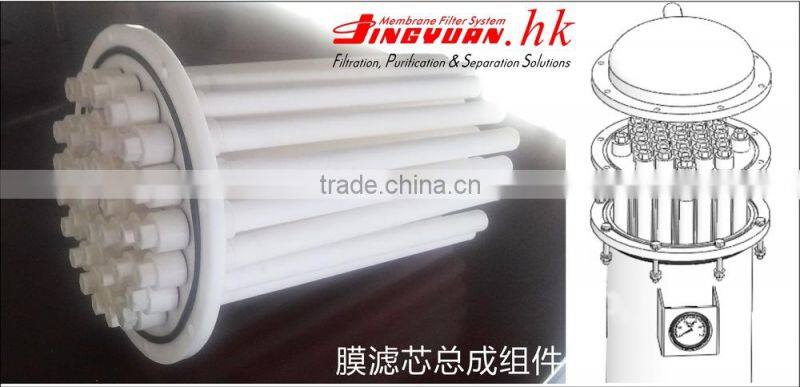

Special filter pump, extract the oil from the system tank,first cross a Magnetic filter and strainer,make the oil cross jingyuan

membrane filter element,The oil from the outer edge of the membrane filter into,Clean oil flow from the center of the membrane

 filter hole,Impurities and moisture trapped on the outer edge of the membrane filter

Technical Parameters:

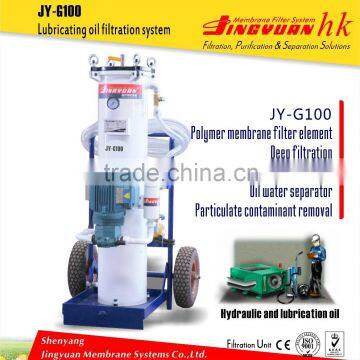

1.Model Type: JY-G100                                                                                                           2.Flow Rate: 60 L/min                                                                                                                                 3.Filtration System: (1)Polymer Membrane Filter Elements (Can be used repeatedly after washing) (2)Filter Element Quantity: 36 Pieces (3)Function: Remove impurity particles, colloid and water (4)Working Pressure: 0.2~0.35 Mpa (5)Filtration Level: 1 (6)Service life: 2~3 Years or longer   4.Filtration Precision:  (1)Range: 2,5,10,15,25 μm (2)Standard: 5~10 μm                                                    5.Mouth: Standard: DN20 or According to Requirements                                                                                    6.Security: With Pressure Safety Valve                                                                                                             7.Temperature: Working Temperature: -10~70 ºC                                                                          8. Dimension: 800*750*1350mm                                                                                                                                    9.Weight:115KG                                                                                                                                                      10.Anti-hazard Classification: Grade 2                                                                                                               11.Power System: (1)Electric Motor:380V (2)Pump: Gear Pump

Application:

A. Can be used as off-line bypass industrial oil filtration system, with circulating pump. B. Can be used in diesel fuel purification.
Adopt Jingyuan membrane filter elements to remove inpurity, colloid and water.
------Applicative oils includes hydraulic oil, engine oil, gear oil, diesel and so on. ------Flow rate and precision can be adjusted according to requirements.
