CCTV Camera Flat Traveling Cable for Elevator

Specifications

CCTV camera Cable for elevator

1Flexible annealed copper wire

2PVC insulation

3PVC sheath

4.easy, safe and quick to install

Elevator CCTV Controlling Cable, Elevator CCTV Flat Travelling Cable, CCTV Cable for Elevator , CCTV Lift Cable

CCTV Camera Cable for Elevator Application:

As control and signal cable for elevator as well as moving machine parts,its bending radius is smaller compared with machine parts. Its bending radius is smaller compareed with round cables due to the closely packed shielded cores or bundles. cat5 use for data transmission, It can be installed in dry and damp rooms.

CCTV Camera Cable for Elevator Parameter:

Minimum bending radius:0.3M<L<0.6M

TVVB(pararell)free suspension length must not exceed 35meters, and the lift speed must not exceed 1.6m/s.

TVVB(interwist)free suspensio length must not esceed 80meters, and the lift speed must not exceed 4m/s

Operating temperature:-15centegrates degree to 70centegrates degree.

How to install CCTV Camera Cable in elevator

Installing CCTV Camera inside an Elevator

“Safety inside Elevator/ lift” has become an issue these days. It’s very frightening and worried to take elevator alone even in day time, as NEWS in TV Channels shows that the crime is being happening inside elevator. CCTV Camera has become a vital device inside an elevator.

CCTV cameras inside an elevator

Installation of Surveillance system in elevator is tricky and complex since it is time consuming and complicated task the cabling of Surveillance system in elevator is not similar to that of regular CCTV Camera cabling.

As elevators are moving objects. Long Running Rail wires can be a real challenge. When installing camera in elevator, the camera cable will be tied with elevator’s main steel cable. It may cause the safety and stability issue on elevator.Elevators normally use travelers to run wires and any new wires should be fed through travelers.

The most essential requirement of elevator surveillance is to see entire interiors of elevators cab on a remote monitor. The Field of View (FOV) of camera installed in elevator should be 90° horizontal and about 70° vertically. The camera or lens optical axis should be 45° from each side of the wall .This FOV geometry results in perfect coverage of entire elevator cab.

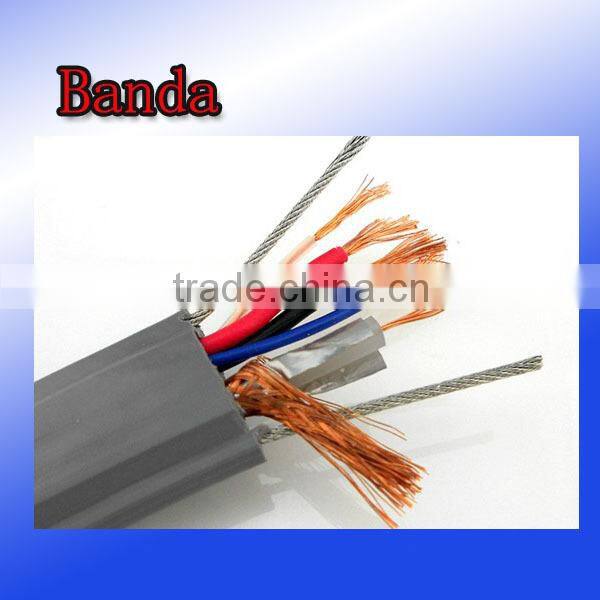

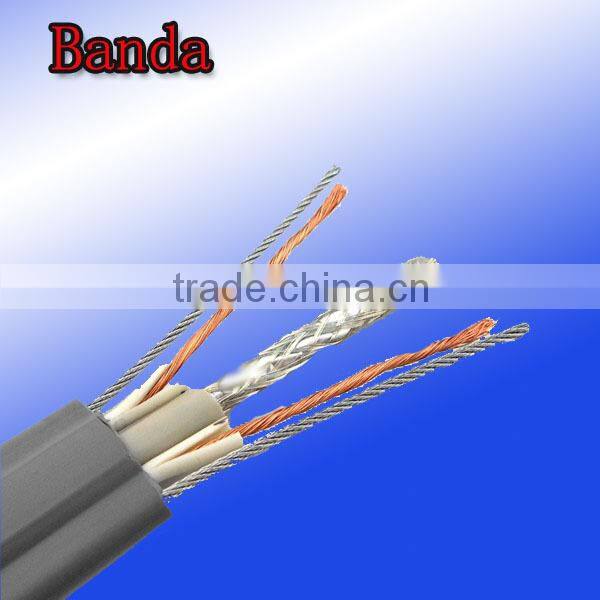

CCTV Camera Cable for Elevator Picture:

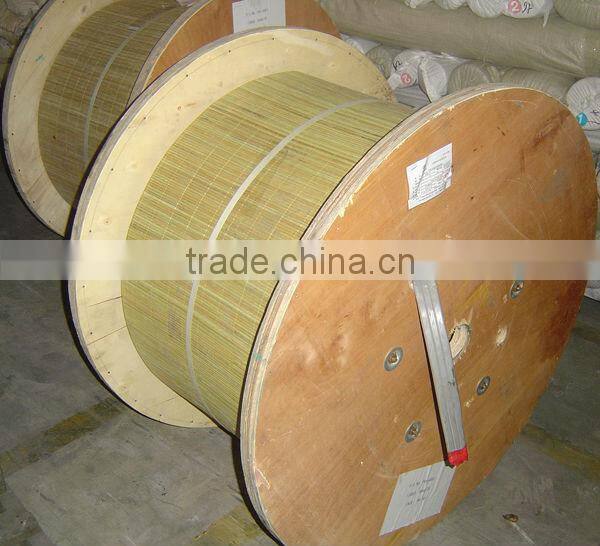

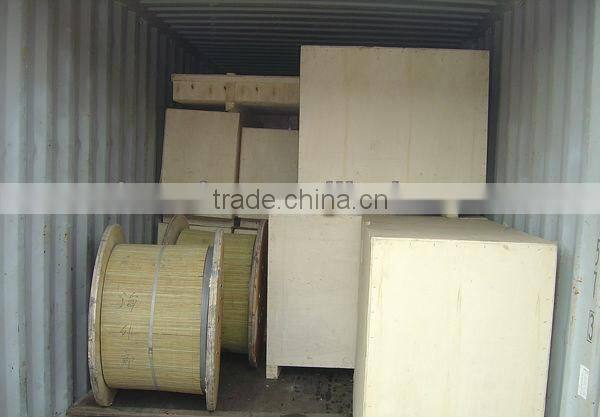

CCTV Camera Cable for Elevator Pcking:
