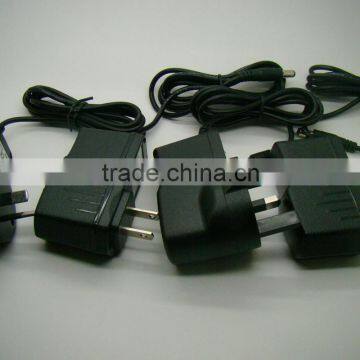

ac dc adapter 25.5V 800mA power supply 25.5V 0.8A dc power supply

FOB Price

US$ 1.5 - 5 / Piece

20 Pieces(Min. Order)

Port shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OEM
Model Number	BC-02	Usage	Game Player
Output Type	DC	Connection	Plug In

Product Description

ac dc adapter 25.5V 800mA power supply 25.5V 0.8A dc power supply

Product Description

Oupt power range	25.2V1A 12.6V3A 16.8V2A (also have those models for selection)
The adapter size	854832mm
The adapter weight	160g/pcs
Input Rated Voltage	100Vac~240Vac
Input Frequency Range	50Hz~60Hz
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Efficiency	80%(MIN)at Rated Voltage
DC Output Voltage	25.2V± 5% (option)
DC Output Current	1A (option)
DC Output Power	25.2w (optional)
Leakage Current	less than 5mA
Standby power	less than 0.5w
DC connector	5.52.110mm (optional)
DC cable	1.5m 2464UL 22AWG cable (optional)
Ripple and Noise	less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time	less than 3S (AC:110V and full load)
Certificates	CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	output voltage protection (150%-180% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +40°C
Safety Standard	EN60950-1 UL60950-1 ESD (EN61000 3-3)
	CAS (60950 ITE/TE) FCC Part 15 subpart B Class B
	ISO 9001: 2008

We can offer almost all kinds of Power adapter:

AC/DC Wall Chargers and adapters,Desktop Adapters, Travel Chargers,LED Power Supply,Printer charger,Cell Phone charger,CCTV Power supply,TV/Monitor Adapter and so on

Any interest please do nto hesitate to contact us.

Advantages

1.Power adapter factory for the customisation made.We can meet the big clients's requirements.

2. Wide Range: AC/DC Wall Chargers and adapters,Desktop Adapters, Travel Chargers,LED Power Supply,Printer charger,Cell Phone charger,CCTV Power supply,TV/Monitor Adapter and so on.

3.Stock for the popular power adapters.We can offer the samll order and defferent types service. Fast delivery.
4.Many ebay and amazon sellers choose our products.

5.Test before shipping out.
6.One year warranty.
7.Free exchange:If any problems happen and you can offer the evidence that it is our products issue we will resend you the new products or refund you the money.There is no requirement of return shipping.

Certifications

Product flow chat

Packaging & Shipping
