AT-288G Professional portable transceiverfor

FOB Price

Negotiable / Piece

200 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

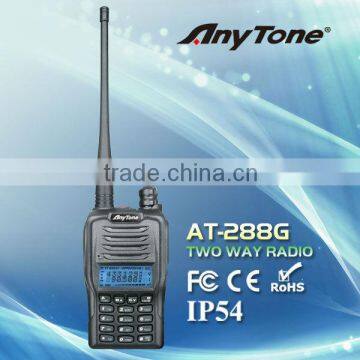

Professional portable transceiverfor AT 288G
1.VHF/UHF fre
2.128 channels
3.LED display
4.FM radio

Professional portable transceiverfor AT 288G
Frequency Range	VHF: 136-174MHz UHF:350-390MHz UHF: 400-470MHz UHF:450-520MHz
Channel Capacity	128 channels
Channel Spacing	25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band)
Phase-locked Step	5KHz,6.25KHz
Operating Voltage	7.4V DC ±15%
Battery Life	More than 14 Hours (1350mAh), by 5-5-90 working cycle
Frequency Stability	±2.5ppm
Operating Temperature	-20°C +55°C
Size	260×57×37mm (with battery, antenna)
Weight	210 g (with battery, antenna)
Receiver (ETSI EN 300 086 standard testing )
		Wide band	Narrow band
Sensitivity (12dB Sinad)		≤0.25μV	≤0.35μV
Adjacent Channel Selectivity		≥70dB	≥60dB
Intermodulation		≥65dB	≥60dB
Spurious Rejection		≥70dB	≥70dB
Audio Response		+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Hum & Noise		≥45dB	≥40dB
Audio distortion		≤5%
Audio power output		500mW / 10%
Transmitter (ETSI EN 300 086 standard testing )
		Wide band	Narrow band
Power Output		4W/2W/0.5W
Modulation		16KΦF3E	11KΦF3E
Adjacent Channel Power		≥70dB	≥60dB
Hum & Noise		≥40dB	≥36dB
Spurious Emission		≥-36dB	≥-36dB
Audio Response		+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.25KHz)
Audio Distortion		≤5%

Function:

Output power 4/5W

Receive FM radio

128 Signal- duplex channels, three-color LCD backlight display.

Voice annunciation( Chinese or English)

CTCSS+ DCS encode and decode + DTMF encode/decode.

Multi-scan mode: VFO scan+ channel scan + priority scan+ CTCSS scan+ DCS scan.

VOX function ( 3 levels), voice scramble & Compander, wide/narrow band.

DTMF ANI function

Squelch Tail Elimination function.

Emergency lighting function.
