PVC/TPR Out Sole Vertical Injection Moulding Machine
- ShenZhen/GuangZhou
- Credit Card
You May Like
Product Details
| Condition | New | Type | Tube Head Injection | |
| Style | Vertical | Brand Name | Kingkong | |
| Model Number | JG-L21-70T | Place of Origin | Guangdong, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 300cm³ | Clamping Force | 70Tons | |
| Opening Stroke | 140 mm | Power(W) | 16.5kw | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

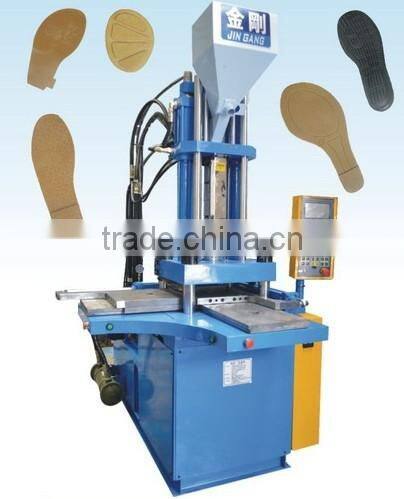

This is a Vertical 2 stations PVC/TPR outsole injection machine Vertical PVC/TPR outsole injectioin machine,Double sliding shoe sole injection machine, Vertical sole injection molding machine
This is a doble mould sliding injection machine use to produce TPR, TR or TPU thin sole for women and man or for customized shoe accessories.
Feature:
1)Vertical 4 pillars Direct Mould Lock with high speed mould clamping;
2)With high pressure sand high speed injection Rate, is special design for footwear component Production, the bes configuration machine for TPR, TPU and TR thin out sole for man or lady.
3)Big injection screw L/D Ratio;
4)Extensible Computer program and automatic lay-out & buit-in wires to meet different full Automatic request.
5)Mould clamping Apply direct composite type mould lock cylinder design, capable of decline clamping and low speed with low pressure clamping. This can greatly last serve life of the muld.
6)Doble injection cylinder system to ensure stable and strong injection.
7) Automatic Self error detected function, easy to figure out the problem.
Technical data:
| Model | Unit | JG-L21-70T |
Injection System | Injection screw | Mm(dia.) | 48 |
Injection pressure | Kgf/cm² | 1137 | |
Injection valume | Cm²/grams | 300 (Maximum) | |
Screw injection distance | Mm | 140 | |
Screw Rotation speed | RPM | 0-180 | |
Injection nozzle Pressure | Tons | 3.5 | |
Nozzle injection distance | Mm | 250 | |
Temperature control | Zone | 4 | |
Clamping force | Tons | 70 | |
Available Mould size | Mm | 400x400 | |
Minimum Available mold thinness | Mm | 50 | |
Maximum Mold height | Mm | 220 | |
Hydraulic system | Maximum pressure | Kgf/cm² | 140 |
Oil pump Capacity | Cc/rev | 53 | |
Motor | Kw | 11(15hp) | |
Heating power | Kw | 5.6 | |
Total loading power | Kw | 16.5 | |
Machine size | M | 1.7x1.3x2.8 |
We can offer All kind of shoe mold along with our machine, as long as get client shoe sample.

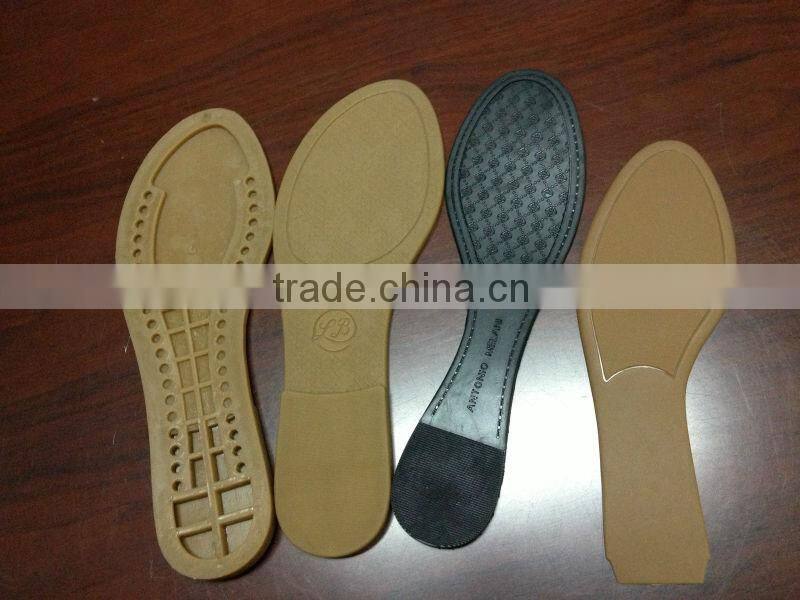

Sample:
CE Certificate:
