Home > Products > Storage cage > Supplier Galvanized Steel Cage Container
Supplier Galvanized Steel Cage Container
- Tianjin Xin'gang
- T/T
You May Like
-
Zinc Plated Folding Metal Storage Cage
-
Euro Style Galvanized 50*50mm Foldable Cage Pallet
-
Stackable Metal Zinc Plated Foldable Cage Pallet
-
Strong Versatile Collapsible Mesh Storage Cage for Transport
-
Collapsible and Stackable 50*50mm Wire Basket
-
Galvanized Steel 4 Layer Stacking Foldable Storage Cage(Factory)
Product Details
| Place of Origin | Hebei, China | Brand Name | FANSI | |
| Model Number | FS-SC-L-11 | Material | Other, Galvanized Iron Wire, Galvanized Iron Wire, Q235 low carbon steel wire,stainless steel wire etc. | |
| Type | Other, storage cage | Application | Cages | |
| Hole Shape | Square | Aperture | 50x50mm | |
| Wire Gauge | 5.0mm,6.0mm |
Product Description
Alibaba supplier galvanized steel cage container :

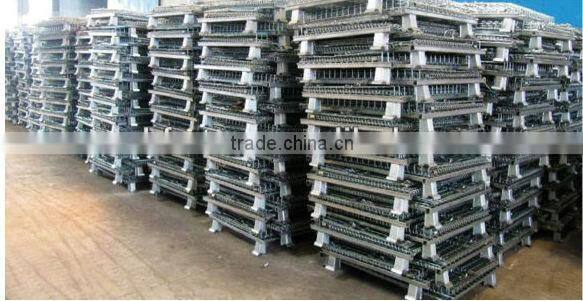

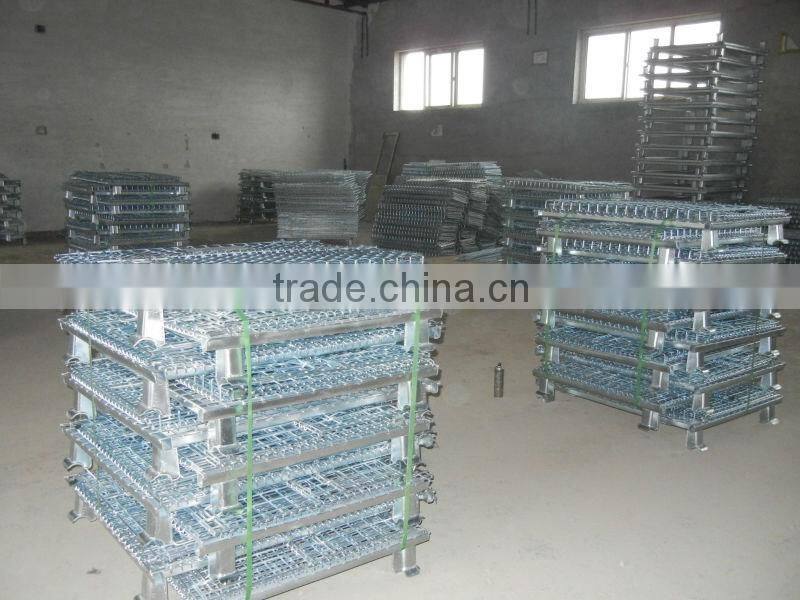

1.The steel cage container picture:
2.The steel cage container specification:
(1)Size: 1200mm(L)*1000mm(W)*890mm(H)
(2)Mesh:50*50mm
(3)Wire diameter:6.0mm
(4)Leg height:100mm
(5)Surface finish: galvanized
(6)Color:silver
3.Material:Q235 low carbon steel wire,stainless steel wire etc.
4.Characters:
(1)using the high quality cold-rolled steel welded by hardening
(2)high strength,and large load capacity.
(3)Specifications unity, capacity is fixed, the storage of goods be clear at a glance, and easy to the inventory.
(4)Surface galvanized, beautiful oxidation resistance and long service life
(5)Using international standards, and supporting the use of the container, effectively improve space utilization.
(6)It can stack each other four levels, realize the three-dimensional storage.
(7)Surface dealing is environmental protection, health immune, turnover, storing recovery will not pollute the environment.
(8) Cooperate with forklift, cattle, elevators, crane equipment can be effectively homework
(9)Folding structure, recovery with low cost,it is the wooden packaging alternative product.
(10)The bottom can be installed wheels, factory internal flow is very convenient
5. Technical:
Storing cage using Q195 contour as a raw material, the cold drawn into profile. Again through touch welding forming semi-finished products of mesh. In make mesh, it can use galvanized or coating surface treatment (storing cage most use galvanized processing), after surface treatment it can be assembled, finally making into finished products. The size of the storing cage according to the actual needs of customers' products production
6.Regular size:
stype | overoll size(mm) | Inner size(mm) | Volumn | wire diameter(mm) | Mesh(cm) | Weight(kg) | Max. loading (kg) |
A-1 | 800*600*640 | 750*570*500 | 0.21 | 6.0 | 5*5 | 30 | 700 |
A-2 | 6.0 | 5*10 | 25 | 500 | |||
B-1 | 1000*800*840 | 950*770*500 | 0.51 | 6.0 | 5*5 | 47 | 1200 |
B-2 | 6.0 | 5*10 | 42 | 800 | |||
B-3 | 6.4 | 5*5 | 53 | 1500 | |||
B-4 | 6.4 | 5*10 | 46 | 1000 | |||
B-5 | 6.0 | 10*10 | 35 | 600 | |||
B-6 | 5.0 | 5*5 | 35 | 600 | |||
B-7 | 5.0 | 5*10 | 30 | 500 | |||
C-1 | 1200*1000*890 | 1150*970*750 | 0.83 | 6.0 | 5*5 | 65 | 1500 |
C-2 | 6.0 | 5*10 | 56 | 1000 | |||
C-3 | 6.4 | 5*5 | 73 | 2000 | |||
C-4 | 6.4 | 5*10 | 62 | 1200 | |||
C-5 | 6.0 | 10*10 | 46 | 1000 | |||
C-6 | 5.0 | 5*5 | 47 | 1000 | |||
C-7 | 5.0 | 5*10 | 40 | 800 | |||
D-1 | 800*500*540 | 750*470*400 | 0.14 | 6.0 | 5*5 | 26 | 600 |
D-2 | 6.0 | 5*10 | 21 | 400 | |||
E-1 | 1550*1120*990 | 1500*1090*850 | 1.39 | 6.0 | 5*5 | 84 | 1800 |
E-2 | 6.0 | 5*10 | 78 | 1500 |

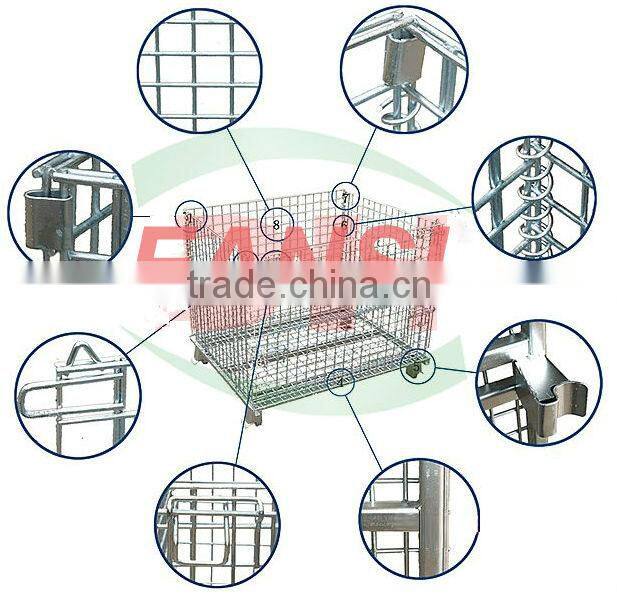

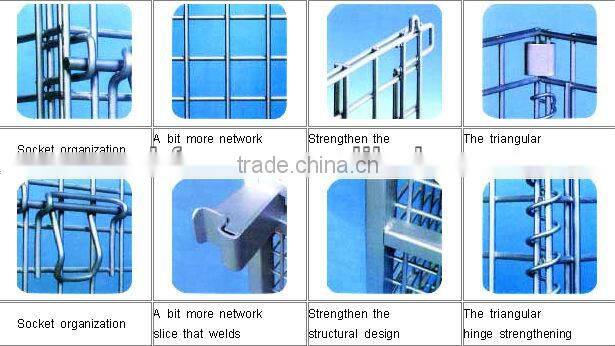

7.Basic structure:

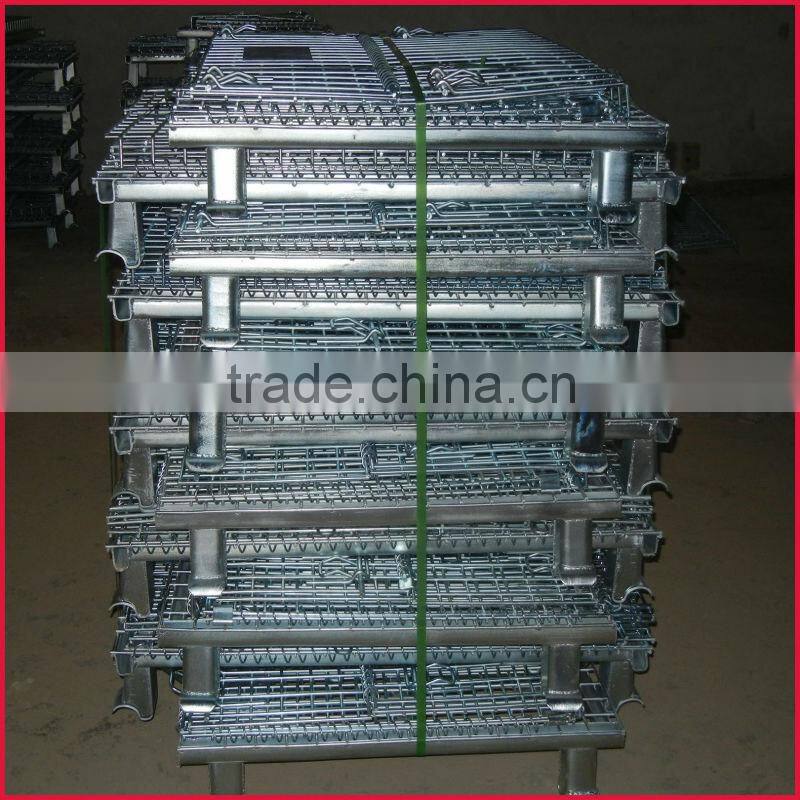

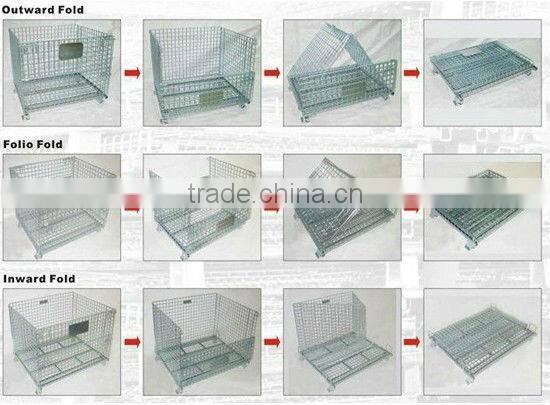

8.The foldable type:

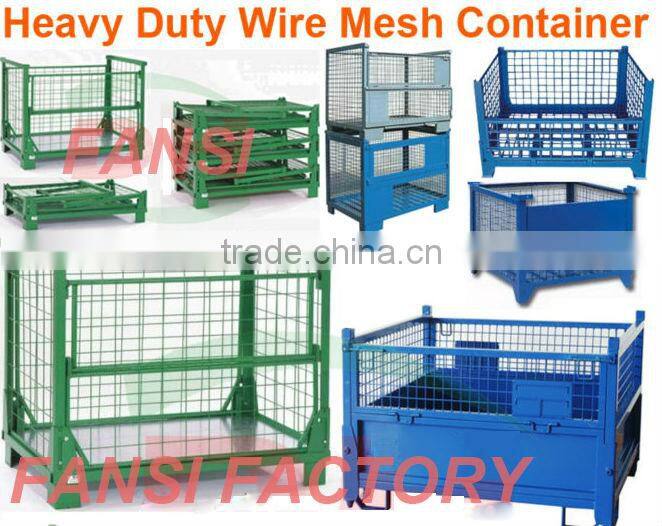

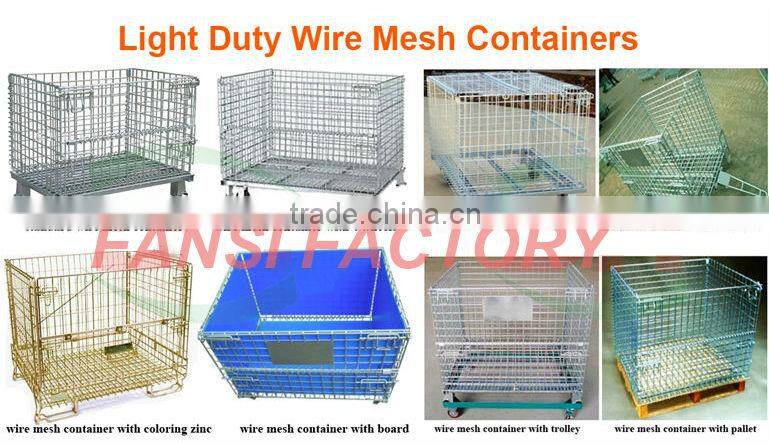

9.Steel cage container

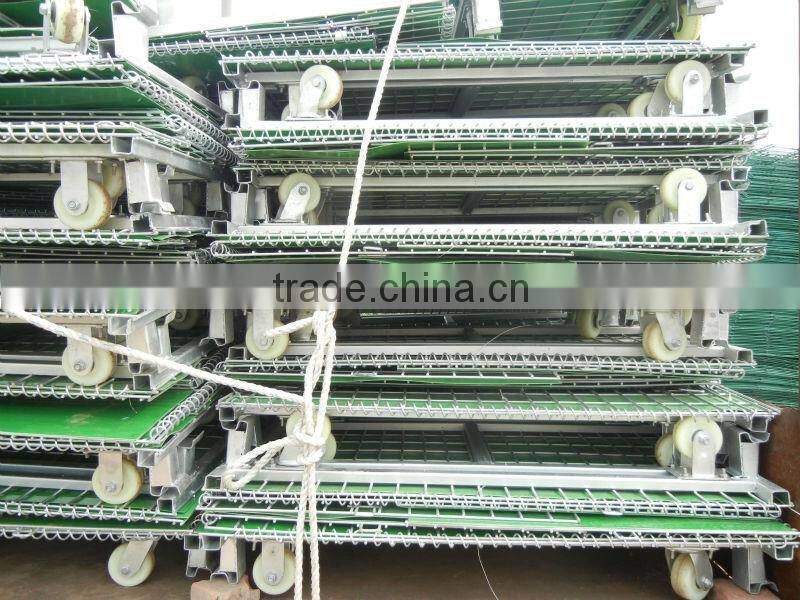

10.Packing:
11.Warehouse:
12.Ready for shipment:
13.Payment:
We accept the L/C, T/T, D/P, Western Union, MoneyGram, Paypal or Escrow
14.Shipping:
1. Delivery Term: FOB Tianjin
2. Parts can be arranged within 3 working days after the payment confirmed.
3. UPS/DHL/TNT/EMS/FedEx is optional, or other way customer appointed.
4. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
5. Any import fees or charges are the buyer's responsibility.
