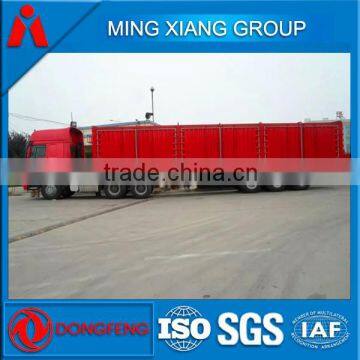

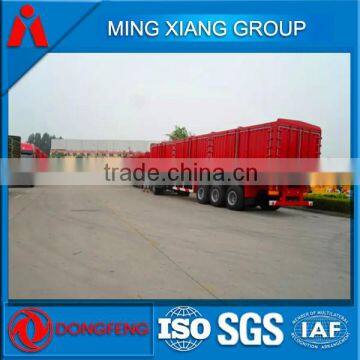

Heavy Payload Three Axle Storehouse Truck Trailer

Total Weight

40000 kg

Rated Load

32000 kg

Tare Weight

8000 kg

Wheel Base

7000+1310+1310, 6500+1310+1310 (mm)

Tyre Specifications

11.00R20 12PR 12R22.5 12PR

No. Of the Tyres

12

Axle Brand

FUWA (BPW optional)

No. Of the Axles

3

Axle-load

24000 kg

Pieces of leaf-spring

10 (8) (4)

Suspension

is constitute by tandem steel plate spring and bearing legs.

Departure Angle

17

Front/Rear Overhang

2130 mm

Outside Dimensions (LxWxH)

13000,12500X2550X 3950,3750,3550,3350 (mm)

Interior Dimensions (LxWxH)

12850,12350X2300X 2400,2200,2000,1800 (mm)

Material of the Main Beam

Q235B manganese plates, automatic submerged arc welded

Brake System

ABS:RL122-1 (optional )

Brake Air Chamber

Four double and two single chamber

Usage

Applicable to the transportation of the household appliance, textile goods, coal, dinas, and other building materials.

Other Descriptions

box shell uses the corrugated steel plate (anti-wave) or flat type steel plate with high intensities. The interior part adopts a skeletonless structure, maximizing the carrying capacity. X-shape tension brace fixed the box shell a very strong unit.

The side guard adopts close-ended design to reduce the crosswise risks effectively, and energy consumption, running with high speed. And reasonable trailer accessories were placed at the rear guard box for convenience.

Other Specifications

The top of the box is be close-ended (pull/push open-ended, open-type, or open-type with cloth tent poles optional)
