Jig machine for ore gravity separation

FOB Price

USD $1,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao Shanghai Tianjin Dalian Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Gravity Separator, Jigging machine
Production Capacity	2-15 ton/hour	Place of Origin	Henan, China
Brand Name	HC	Model Number	LTC series
Voltage	refer to the specification	Power(W)	1.1-3 kw
Dimension(LWH)	according to different models	Weight	800-4650 kg
Certification	ISO9001,CE,BV,SGS	Warranty	one year except the wearing parts
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Jig machine for ore gravity separation

Jigger machine separation belongs to deep groove sorting operation in ore dressing work. It adopts water as beneficiation medium, separates the minerals by use of gravity differences between the mineral ore and gangue.

Jigger machine is widely used in manganese ore, Lead-zinc mine, lapis lazuli, barite ore, fluorite, pyrite, limonite, hematite, mercury and other minerals re-election. AM30 jig machine is applied to the separation operation. It has a good effect on the separate of big size raw ore and the recovery of large non-ferrous metal smelting slag.

Working principle

Jigger machine beneficiation is one way of gravity beneficiation. It belongs to deep trough separation operations, use water as processing media, it depends on the difference of specific gravity between the mine to be select and gangue to separate mine, They are mostly in septum type, the stroke and time of stroke is adjustable depend on different specific gravity of mine, it’s widely used to select Tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other metal.

Technical Parameters

Model	Jig Room				Stroke Coefficient	Septum		Input Size (mm)	Capacity (t/h)	Water Consumption (t/h)	Power (kw)	Weight (kg)
Model	Area (m2)	Raw	Room	Total Area (m2)	Stroke Coefficient	Stroke (mm)	Times (mm)	Input Size (mm)	Capacity (t/h)	Water Consumption (t/h)	Power (kw)	Weight (kg)
LTP- 34/2	0.135	1	2	0.27	0.58	0-25	320- 420	12	2-6	4-10	1.1	800
LTA- 1010/2	1.0	1	2	2.0	0.5	0-25	250- 350	5	5-15	10-20	2.2	2890
LTC- 69/2	0.54	1	2	1.08	0.55	0-50	220- 350	8	6-9	40-60	1.5	1420
2LTC-366/8T	0.2-0.34	2	8	2.16	0.68- 0.41	0-50	120- 300	5	3-6	20-40	1.1x 2	3570
2LTC-6109/8T	0.58-0.86	2	8	5.76	0.52- 0.35	0-50	120- 300	5	10-20	80-120	2.2x 2	4650
AM-30	0.644	2	2	2.574	0.47	0-50	130	30	10-15	100-150	3	2400

Pictures of jigging machine:

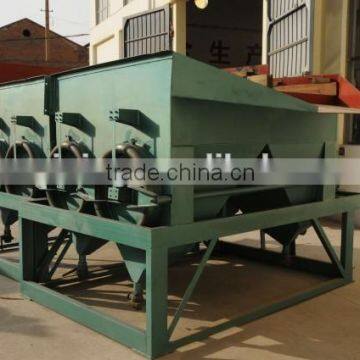

Jigging machine in factory

Delivery of jigging machine

Customers Visiting
