C46400 Naval brass bar
- 5000000 Kilogram / Kilograms per Month
- shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Pridametal | |
| Model Number | C46400 | Application | In marine,electrical,engineering and related industries | |
| Shape | bar | Material | brass | |
| Dimensions | Make to Order | Chemical Composition | 59% |
Product Description
Specifications
1.Reasonable price;2.Superior Performance;
3.Strict quality control system;
4.Complete in specifications.

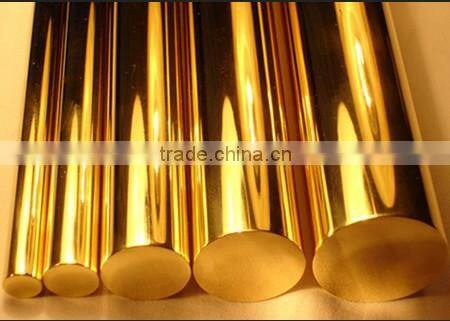

C46400 Naval brass bar
Chemical Compositon Mass/% | |||||||||
Cu | Sn | Al | Fe | Mn | Ni | Pb | Si | P | Zn |
59.0-62.0 | 0.50-1.0 | -- | 0.1 | -- | -- | 0.2 | -- | -- | Rem. |
Mechanical Properties | |||
Tensile Strength(Mpa) | Yield Strength (Mpa) | Elongation % | Hardness(HB) |
380-600 | 170-450 | 50-6 | 106-200 |
Production Specifications (mm) | |||||||
| Outside Diameter | Wall Thickness | Bore Diameter | Note | |||
Min. | Max. | Min. | Max. | Min. | Max. | ||
Extruded Tube | Φ26 | Φ100 | 4 | 30 | Φ18 | Φ80 |
|
Continuous Casting Tube |
|
|
|
|
|
|
|
Cold-drawn Tube | Φ16 | Φ80 | 2 | 10 | Φ10 | Φ70 |
|
Extruded Bar | Φ10 | Φ80 | -- | -- | -- | -- |
|
Continuous Casting Bar |
|
| -- | -- | -- | -- |
|
Cold-drawn Bar | Φ8 | Φ60 | -- | -- | -- | -- |
|
Section Bar |
|
|
|
|
|
|
|
Cast Ingot | Make to Order |
|
|
|
|
|
|
1.In Chemical Composition,single values represent the maximums.
2.In Mechanical Properties,single values represent the minimums.
