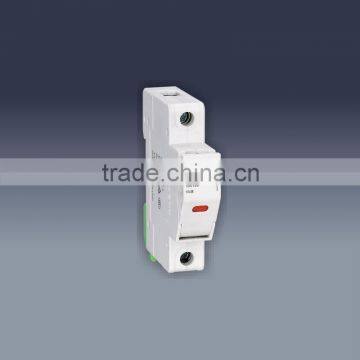

DC fuse holder PV combiner component for input protect 1000V 1-30A CE 10*38mm
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
-
DC solar fuse holder pull out structure array string protection 1000V 1-30A CE 10*38mm
-
1000V DC fuse holder with idicator light for solar string protection
-
Solar PV Fuse holder/fuse base(1000V DC)
-
PV Fuse holder/fuse base
-
1000V DC 1A-30A 10*38mm DC fuse used in solar on grid
-
DC Fuse holder (10*38mm fuse link)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZJBENY | |
| Model Number | BR-30 | Usage | Thermal | |
| Breaking Capacity | High | Safety Standards | IEC |
Product Description
Specifications
1.Rated current:1-30A2.Rated voltage: DC 1000V
3.CE certificated
4.Protection grade:IP20
5.Contact silver plating
Product Features:
1. DC fuse holder 10 × 38mm for protecting photovoltaic strings.
2. Rated current:1-30A,rated voltage:1000V
3. silver plating
4. CE certificated
5. IEC/EN60947-3 standard
Picture:
It has excellent inner structure,which can be pulled out when change the fuse link.
The fuse link we used is Littlefuse or Other brand optional
Technical Datas:
| type | BR-30 | |
| poles | 1P | |
| rated voltage | DC 1000V | |
| rated current | 1-30A | |
| short-circuit breaking capacity | 20-33kA | |
| max power attenuation | 3W | |
| protection grade | IP20 | |
| installation way | TH35-7.5/DIN35 Rail installation | |
| connection | 2.5-10mm2 | |
| operation ambient temperature | -30~+70°C | |
| resist wet & heat | 2 types | |
| elevation | ≤ 2000 | |
| RH(relative air humidity) | when +20 °C,not exceed 95%;when +40 °C,not exceed 50% | |
| pollution class | 3 | |
| installation environment | the place of no abvious vibrate & impact | |
| installation class | Ⅲ | |
Dimensions(mm):
Packing Details:
Workshop:
- Our workshop is totally dust-free with 6S management methods.
- All workers are strictly trained to be qualified for every position.
Test Equipment:
We have professional test machines to ensure all products are qualified before present them to the customers.
All test machines are well maintained and measured to guarantee the accuracy, and the
specialized tester saves all record for tracking.
Exhibition Show:
We attended many oversea exhibitions since last year. Our professional products and service attracted many customers from different countries.
Customer Visit:
Many customers showed interest to our products and established cooperation relationship after visiting our company.
