Home > Products > DC Fuse Holder > DC fuse holder with indicator light in black or white color

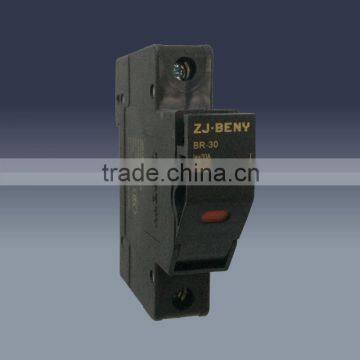

DC fuse holder with indicator light in black or white color
USD $0.8 - $1
/ Piece
100 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T Credit Card PayPal
You May Like
-
DC fuse holder PV combiner component for input protect 1000V 1-30A CE 10*38mm
-
DC solar fuse holder pull out structure array string protection 1000V 1-30A CE 10*38mm
-
1000V DC fuse holder with idicator light for solar string protection
-
Solar PV Fuse holder/fuse base(1000V DC)
-
PV Fuse holder/fuse base
-
1000V DC 1A-30A 10*38mm DC fuse used in solar on grid
Product Details
| Place of Origin | Zhejiang, China | Brand Name | ZJBENY | |
| Model Number | BR-30 | Usage | Thermal | |
| Breaking Capacity | High | Safety Standards | IEC |
Product Description
Product Description
- DC fuse holder for protecting photovoltaic strings
- Silver plating parts
- Easy operation to change the fuse link
- LITTEL link for option
Technical Datas:
| type | BR-30 | |
| poles | 1P | |
| rated voltage | DC 1000V | |
| rated current | 1-30A | |
| short-circuit breaking capacity | 20-33kA | |
| max power attenuation | 3W | |
| protection grade | IP20 | |
| installation way | TH35-7.5/DIN35 Rail installation | |
| connection | 2.5-10mm2 | |
| operation ambient temperature | -30~+70°C | |
| resist wet & heat | 2 types | |
| elevation | ≤ 2000 | |
| RH(relative air humidity) | when +20 °C,not exceed 95%;when +40 °C,not exceed 50% | |
| pollution class | 3 | |
| installation environment | the place of no abvious vibrate & impact | |
| installation class | Ⅲ | |
Dimensions(mm):
