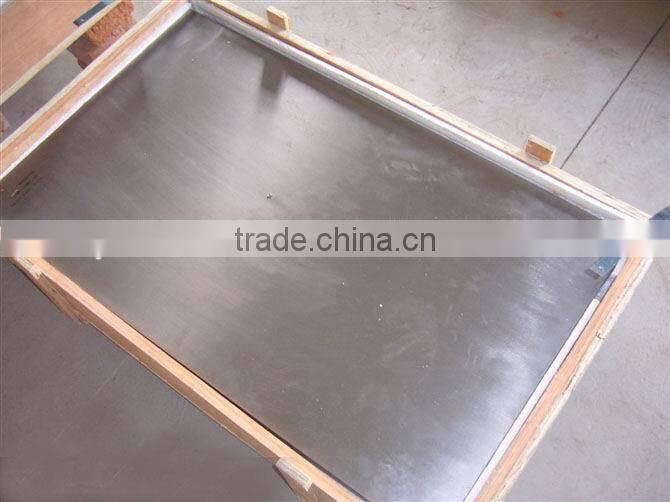

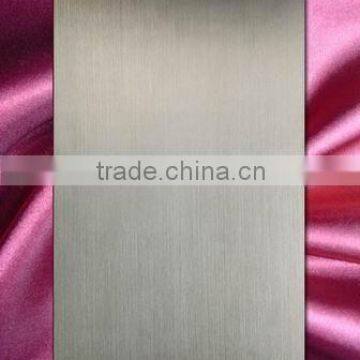

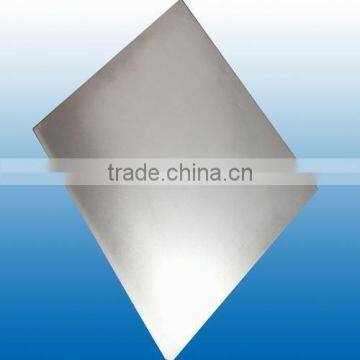

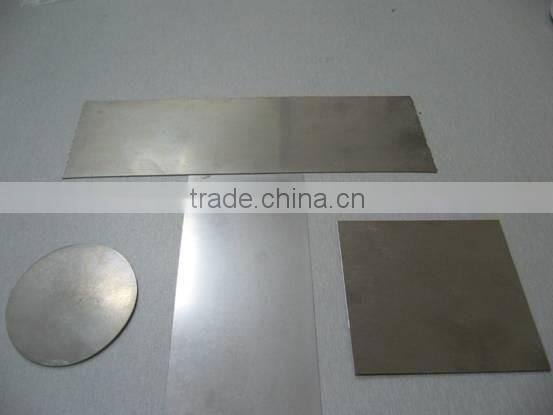

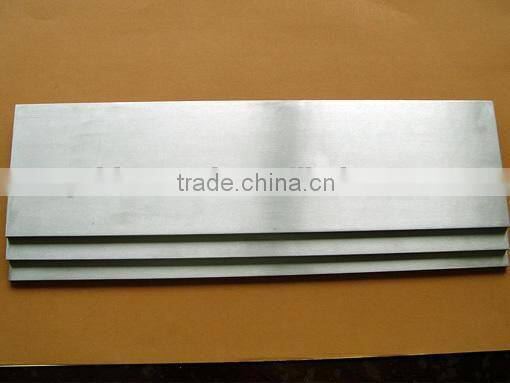

High temperature pure molybdenum plate and sheet
- 2000 Kilogram / Kilograms per Month
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Pridametal | |
| Model Number | Mo1 | Application | Industrial, Marine,Aerospace | |
| Shape | sheet | Material | molybdenum | |
| Dimensions | 0.3-3.0mm*200-650mm*L | Chemical Composition | Mo:>=99.5% or 99.7% |
Product Description
Specifications
1, Reasonable price
2, Made-to-order service available
3, size 0.3-3.0mm*200-650mm*L
4, Good quality with ISO certificate
A,Physical and chemical properties
1 Purity W≥99.95%
2 Density ≥19.0g/cm3
3 Flatness ≤2%
B,Description
THK 0.6mm*W300mm*L500mm
Bright Silver.
MOQ:1KG
standard: ASTM B386
purity: >99.93%
1.Use for industry
2.Thickness:0.6mm.
3.Width:300mm
4.Length:500mm.
5.Specification; MO1.
C.Trade Terms

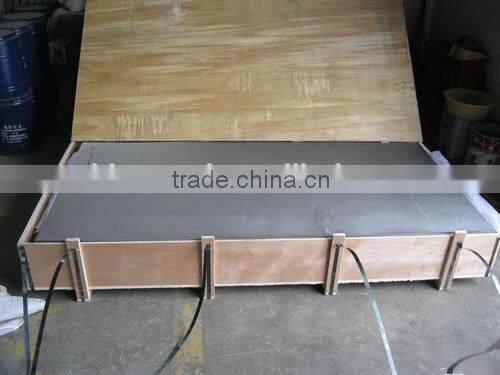

1.Payment: By T/T or Western Union or Paypal or EscrowPackaging Details: Wooden cases or carton case
2.Lead time:7-25 working days subject to the order quantity.
3.Ports: Shanghai port or xi'an airport
4.Delivery ways: DHL; TNT;UPS;SF Express or Escrow door to door service ,by sea,by air ect.
D.Application
After rolling and processing with deflection reaching 60% , the density of molybdenum sheet basically comes close to molybdenum’s theory density. Therefore, molybdenum sheet possesses the properties of high density, balanced internal structure and excellent high creep strength temperature. Molybdenum sheet is widely used in reflection shield, cover plate applied in the sapphire growth furnace, reflection shield, heating tape, connecting pieces applied in vacuum furnace, titanium sputtering target applied in plasma coating film, and high temperature resistance boats.
Specification:
Thickness (mm) | Thickness Tolerance | Width (mm) | Width Tolerance | Length (mm) | Length Tolerance |
0.10~0.30 | ±0.01 | ≤350 | ±2 | ≤1300 | ±5 |
0.31~2.00 | ±0.05 | ≤600 | ±5 | ≤1300 | ±5 |
2.01~3.00 | ±0.08 | ≤400 | ±3 | ≤1000 | ±5 |
3.01~4.00 | ±0.10 | ≤400 | ±3 | ≤1000 | ±5 |
Application:
Alloy | Component (%) | Application |
Pure mo
TZM
MHC
Mo—W
Mo—Re
Mo—La | 99.95 Mo
0.5Ti,O.08Zr,0.03C
1~1.5Hf,0.03~0.05C
10~30W
41~47.5Re
0.5—1.5La(La2O3) | vacuum furnace,glass smelting electron device,
hot working tool ,install of furnace
hot working tool
sputtering target
travelingwave tube, rocket booster
Sintering boat |
We can supply, excluding Molybdenum Sheet, pure Molybdenum Sheet, TZM Molybdenum Sheet, and MoLY alloy sheet. All these molybdenum Sheet are
widely used in electrode, furnace elements, vacuum evaporation boat, heat shields, and vacuum furnace assemblies.
