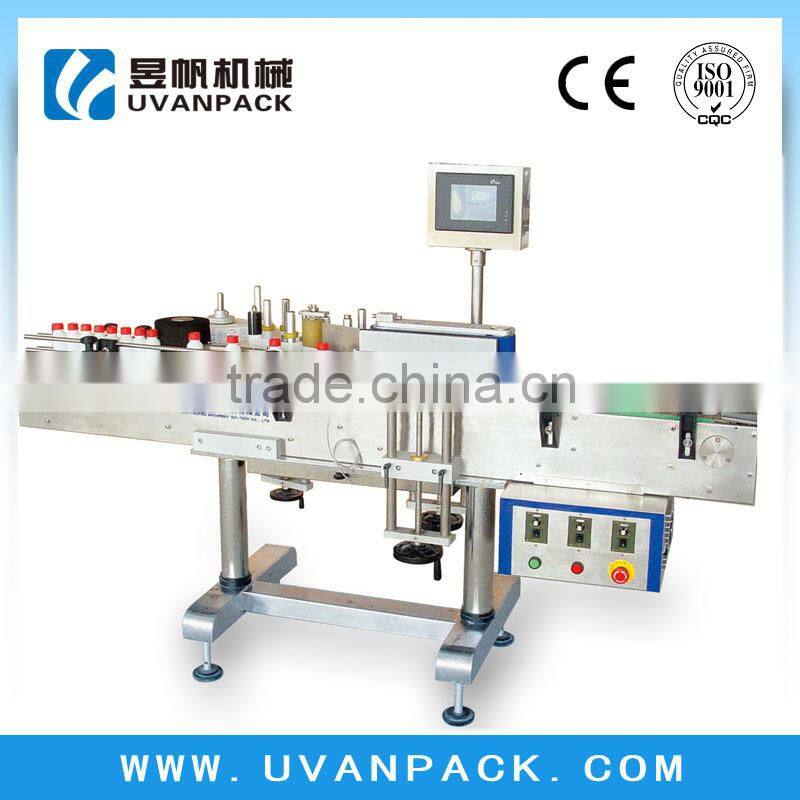

Chemical Bottle Label Machine TBK-630

Specifications

I. Company Profile

Shanghai Uvanpack Machinery Co., Ltd. is an enterprise that specializes in the design and sales of horizontal automatic packaging machines and fully automatic filling machines. Our company adopts European advanced packaging design concept and technology based on the market demands of diversified product packaging and varied packaging range.

II. Detailed Product Description

This machine is suitable for any round or cylinder bottles labeling. PLC control program achieves easily operation. Touch screen makes easy reading and excellent looking. More than 10 groups of labeling parameters saved, makes setting rapidly. The whole machine is made of advanced stainless steel and aluminum alloy. Anti-rust and conforming to GMP standard.

 The machine is suitable for attaching a presure-sensitive adhesiv lable to cytidrical bottl of wine ,medicine ,drinking ,chemicals,agrochemicals etc. It adapts photo,machinery and electricity to control .it features simple structure and operation,attachingaccuracy ,reliable propecy ,small power and no noise

III. Main Performance Parameter:

1. Power supply: AC 220V; 50Hz

2. Power capacity:1.2 kW

3. Labeling Speed: 0-26 meter / minute

4. Inner diameter of the roll-paper : 75mm

5. Maximum outer diameter of the roll-paper : 350mm

6. Standard height of the labels:< 150mm

7. Maximum height of the labels: 200mm

8. Weight: 180 KG

9. Dimension ( L × W × H ) : 1600mm×650mm×900mm
