Home > Products > Truck Category > UD refrigerator cooling van for sale,carrier units refrigerator truck 15-25Ton,refrigerator box truck
UD refrigerator cooling van for sale,carrier units refrigerator truck 15-25Ton,refrigerator box truck
- 100 Unit / Units per Month
- Main port in China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
UD refrigerator cooling van for sale; refrigerator box truck
-
GUANGQI HINO 6X4 concrete mixer truck for sale
-
truck mounted concrete mixer agitator for sale
-
Diesel Concrete Mixer Trucks dimension cheaper than ISUZU
-
concrete mixer truck for sale
-
selfloading 8 cbm concrete mixer pump truck dimensions for sale
Product Details
Brand Name | UD | Model | QUESTER | |
Place of Origin | China | Transmission Type | Manual | |
Condition | New | Horsepower | 351 - 450hp | |
Emission Standard | Euro 4 | Fuel Type | Diesel | |
Dimensions (L x W x H) (mm) | 9018x2499x3840 | Box Dimensions (L x W x H) (mm) | 7000x2450x2220 | |
Temperature Range | -15 ~ +20 | Gross Vehicle Weight | 25000 |
Standard (roll to roll shipping, special container, bulk cargo)
Product Description
UD TRUCK
1. Refrigerator truck Specification
Basic information | Product name | refrigerator truck chassis | refrigerator truck | |
Type | 6×4 | |||
Length x Width x Height(mm) | 8304×2499×3228 | 9018×2499×3840 | 9180×2499×3860 | |
Wheelbase(mm) | 3700+1370 | |||
Front overhang/Rear overhang(mm) | 1460/1774 | 1460/2488 | 1460/2650 | |
Top speed(km/h) | 88 | |||
GVW(kg) | 25000 | |||
Rated load(kg) | - | 12100 | 11965 | |
Kerb Weight(kg) | 8810 | 12705 | 12840 | |
Approach/Departure angle(°) | 15/15 | |||
Cab | Type | Cab-over-engine, high roof, dual-bunk | ||
Passengers(person) | 3 | |||
Engine | Model | GH1A | ||
Manufacturer | UD Trucks Corporation | |||
Displacement(L) | 10.837 | |||
Emission | CN4 | |||
Type | Inline 6 cylinders, 4 valves, hydro-cooling, turbo with inter-cooling | |||
Power rating(kw) | 280 | |||
Max net power(kw) | 279 | |||
Injection technology | Electric unit injector with max injection pressure 200MPa | |||
After treatment | SCR | |||
Clutch | Type | Single disc, dry, pull-type diaphragm clutch | ||
Disc diameter(mm) | 420 | |||
Gearbox | Model | F9R20A | ||
Type | Mechanical, manual, 12 forward gears + 2 reverse gears | |||
Steering gearbox | Type | Recirculating ball type hydraulic power-assisted steering system | ||
Axle | Load capacity(kg) | Front: 8000/ Rear:26000(tandem) | ||
Rear axle ratio | 5.571 | |||
Frame | Type | One piece by roll forming | ||
Max section area(mm) | 300×90×(8+5) | |||
Suspension | Type | Front parabolic leaf, Rear multi leaf + T-ride, Front/Rear stabilizer | ||
Leaf Qty. | 3/11 | |||
Tyre | Specification(either one) | 12.00-20-16PR | ||
12.00R20-14PR |
2. Introduction

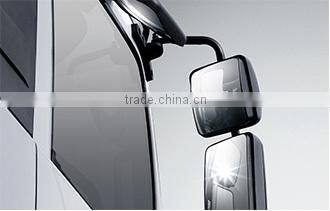

| Multi view angle mirrorConsiderately designed Mirror combination ensures full view for the driver; electrical-heated mirror as optional effectively improves driving safety in severe weather. |
Front/Rear stabilizerEU desig concept for higher driving safty
|

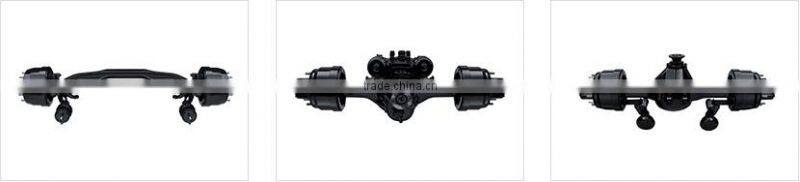

Axle&Hub reduction axle&Single reduction axleHigh quality VOLVO designed axle with option of hub reduction for severe duty cycle |

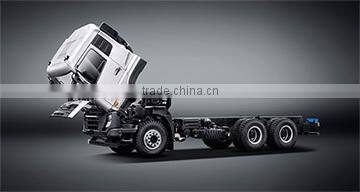

Large cab tilting angleMaximum tilting angle is 58 degrees and engine mounting & dismounting can be done when cab is tilted by 45 degree |

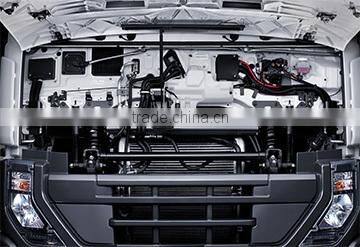

Front lid designed for easy maintenanceClutch fluid reservoir,wind shield washer tank, air conditioner filter behind front lid for easy daily check |
