Home > Products > PCI-Express card > PCI express PCie to NGFF M.2 Key-B 2280 SSD with SATA III 6Gbps expansion adapter card

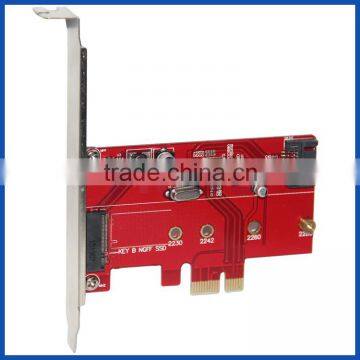

PCI express PCie to NGFF M.2 Key-B 2280 SSD with SATA III 6Gbps expansion adapter card
US$ 7.8 - 8.8
/ Piece
1 Piece(Min. Order)
- Shenzhen Or HK
- L/C D/P D/A Credit Card PayPal
You May Like
-
PCIE extender card PCI express to 2port external USB 3.0 with 19/20pin USB 3.0 header expansion adapter card
-
4 Ports SuperSpeed 5Gbps USB3.0 PCIe Expansion Card for Desktop PC
-
PCIE USB 3.0 3 Port Adapter Card with 10/100/1000 Mbps RJ45 Gigabit Ethernet lan Port
-
PCI-E Express Adapter to 5 Port USB 3.0 HUB Card with 19/20 pin USB 3.0 Header Internal Chipset Expansion Card
-
7 Port 5Gbps USB 3.0 2 Internal PCI-e PCI Express Expansion Card for Desktop
-
Panto USB 3.0 pci express card to 5 Expansion USB ports with 19/20 Pin USB 3.0 header for Windows XP/7/8/10
Quality Choice
Product Details
| Products Status | Stock | Brand Name | PANTO | |
| Model Number | P-LT304-NS | Place of Origin | Guangdong, China |
Product Description
Product Description
PCI express PCie to NGFF M.2 Key-B 2280 SSD with SATA III 6Gbps expansion adapter card
| Product Model | |
| Model Number | P-LT304-NS |
| Warranty Information | |
| Warranty | 18 months |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile ( Low Profile bracket optional ) |
| Chipset ID | ASMEDIA ASM1061 |
| Industry Standards | Serial ATA Specification 3.0 |
| PCI Express Base Specification Rev. 2.0 | |
| PCI Express M.2 specification 1.0. | |
| Support Native Command Queuing(NCQ) | |
| Interface | SATA III & NGFF M.2 B - Key |
| Port Style | Integrated on Card |
| Ports | 1+1 |
| Supported Drive Height(s) | 2230 ; 2242 ; 2260 ; 2280 M.2 (SATA type) SSD |
| Performance | |
| Maximum Data Transfer Rate | 6 Gbps |
| Type and Rate | SATA III - 6 Gbit/s |
| General Specifications | Not compatible with PCI-Express M.2 SSDs |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| Internal Ports | 1 - NGFF M.2 B - Key Female |
| 1 - SATA (7 pin; 6Gb) Female | |
| Software | |
| OS Compatibility | Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) |
| Special Notes / Requirements | |
| Note | The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane. |
| System and Cable Requirements | PCI Express enabled computer or server with an available PCI Express x1 slot or higher ( x4, x8, x16) |
| Package content | |
| Included in Package | 1 - 2 Port PCI Express NGFF M.2 + SATA Card |
| 2 - NGFF M.2 SSD mounting screws | |
| 1 - Driver CD | |
