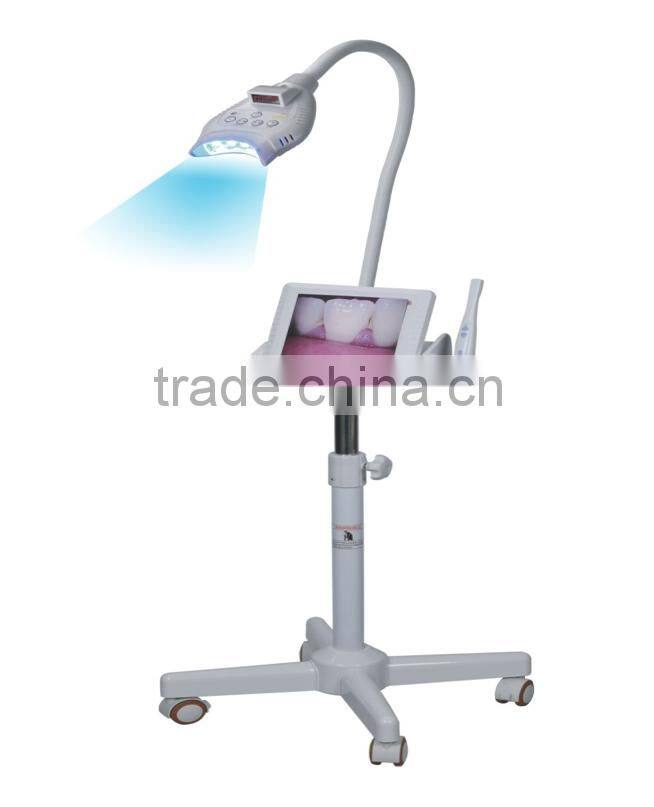

New Teeth Whitening Machine With Roller Base and Big LCD Screen

New teeth whitening machine with roller base and big LCD screen

M86

Characteristic

1. Combines 8inch LCD monitor, teeth whitening machine and an intra oral camera. It’s a multi-functional all-in-one teeth whitening machine. .

2. High efficiency goose pipe design, adjust angle at random, convenient for use.

3. Combination of 4 pieces High power LED.

4. Tunable bleaching time with microprocessor-controlled timer presets.

5. High pixels for dental camera with built-in SD card, it can save the pictures permanently.

6. Convenient for dentist to make a contrast before and after treatment from the screen.

7. High sensitive infrared remote control function.

8. Small base size design, suitable use in dental clinic

9. Can upgrade to wireless and wired system

Function

8 inch LCD monitor Specification:

1. LCD size: 8 inch (Diagonal)

2. Driver element: a-Si TFT active matrix

3. Resolution: 640* 3(RGB) *480

4. Display mode: Normally white. Transmissive

5. Dot pitch: 0.0529(W)*0.1587(H)mm

6. Active area: 101.568(W)* 76.176(H) mm

7. Module size: 117.56(W) * 88.43(H) *5.7(D) mm

8. Surface treatment: Anti-Glare

9. Color arrangement: RGB-stripe

10. Interface: Digital

11. Backlight Power consumption: 1. 2000W (Typ.)

12. Panel Power consumption: 0.193(Typ.)

13. Weight: 175g

Teeth bleaching Specification:

Broad Spectrum: 420nm~472.5nm (Host lamps)

Light Output power: up to 2000Mw/CM2

100-240V, 50/60Hz, 1.2 A for global use

Weight: 8 Kg

Max. Working Radius: 50cm

High Uniformity of light output

Intra oral camera Specification:

1.1/4 CMOS 1.3 MP

2.Video or USB output

 3. High resolution, High sensitivity, High performance

4. Reliable light source with 6 pieces of white light LED

5. Compact Size, Easy to use and focus

 6. 2 or 3 buttons control, can control previous picture, next picture, and delete picture from the cameras directly

 7. 2 capture angles, display the clear images

8. Built in protection voltage

9. Camera with 512mb Micro TF card inside it, it can save more than 500 pictures.

Operation of  led teeth whitening lamp

1.Teeth bleaching operation

Treatment of the led teeth whitening lamp

Tunable bleaching time with microprocessor-controlled timer presets. the longest whitening time is 30 minut 24minutes to complete whole whitening process

Irradiation process and light intensity adjustment are set up by computer automatically, which makes the best service for customer.

Irradiation time can be pre-set up, you can choose the most appropriate treatment to get the best whitening effect.

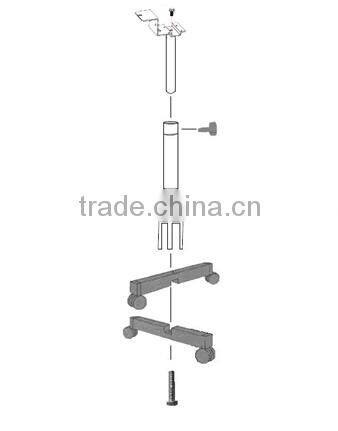

 Assembly Instruction illustration

About us

1.We have a strong professional research & development team of our own to give you a support.

2.We focus on all kinds of certifications to promote brand reputation, such as CCC,CE,ISO9001etc.

3. We can supply professional after service, and promise you 1 year warranty.

4.We can offer OEM,ODM services to you, designing products as your requirements.
