Wood Plastic Profile Forming Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Profile | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | High Automation | Place of Origin | Jiangsu, China | |
| Brand Name | Techno | Model Number | TECWPC | |
| Voltage | 220-480V | Power(W) | 20-220KW | |
| Dimension(L*W*H) | L24000*W1800*H2200mm | Weight | 20000KGS | |
| Certification | CE/ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Wood Plastic Profile Production Line
Wood Plastic Profile Forming Machine
Product Processing Flow:
Raw material+Wood powder+Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibrating table → Haul off → Cutter → Tilting stacker→ Finshed products inspecting and packing

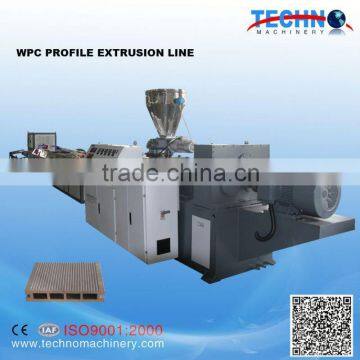

The Whole Line of Wood Plastic Profile Forming Machine
Features of Wood Plastic Profile Forming Machine:
1. WPC profile production line uses efficient extrusion equipment which is of stable extruding and energy saving.
2. The screw barrel of extruder has unique internal structure with 38CrMoAlA alloy steel surface coating.
3. The cooling method of screw core adopts oil thermostatic system with automatic temperature control,so that the material can achieve the best plasticized state.
4. Chaging the moulds,this wood plastic composite profile production line can manufacture many different kinds of profiles according to your requrest.
5. This WPC profile extrusion line is mainly used in WPC (PVC or PE ) floor, WPC auxiliary profile for the decorative door and small profiles.
Extruder of Wood Plastic Profile Forming Machine
Calibrating Bath of Wood Plastic Profile Forming Machine
Cutter of Wood Plastic Profile Forming Machine
Tilting stacker of Wood Plastic Profile Forming Machine
Technical Parameters:
Wood Plastic Profile Forming Machine
Extruder model | SJZ55/110M | SJZ65/132M | SJZ80/156M | SJZ92/188M | |||
Main motor Power (Kw) | 22 | 37 | 55 | 110 | |||
Auxiliary Equipment | YF240S | YF240A | YF300A | YF600 | YF900 | YF1200 | |
Production Width (mm) | Max240 | Max240 | Max300 | Max600 | Max900 | Max1200 | |
Vacuum Pump(Kw) | 2*5.5 | 4*5.5 | 4*5.5 | 4*5.5 | 1*7.5 2*11 | 1*7.5 2*11 | |
Water Pump(Kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 7.5 | |
Hauling Speed | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 | |
Auxiliary Equipment Power | 22 | 35 | 35 | 44 | 52 | 62 | |
Output(kg/h) | 70 | 120 | 120 | 180 | 400 | 400 | |
System Configuration:
Wood Plastic Profile Forming Machine
Item | Machine | QTY |
1 | Auto loader | 1 set |
2 | Double-Screw Extruder | 1 set |
3 | Extrusion and calibration moulds | Each one set |
4 | Calibration table | 1 set |
5 | Hauling-off Machine | 1 set |
6 | Online holes-punching machine | 1 set |
7 | Cutting machine | 1 set |
8 | Stacker | 1 set |
