Multi-application Machine Twin Shafts Shredder Manufacture
- Shanghai
- T/T
You May Like
-
Multi-application Machine Four Shafts Shredder Manufacture
-
Double Shafts Shredder Multi-application Shredding Machine Manufacturers
-
Four Shafts Shredder Multi-application Shredding Machine Manufacturers
-
Multi Application Equipment Four Shaft Shredders
-
Multi Application Equipment Shredder and Crusher Unit
-
Twin Shaft Shredder
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Tehcno | Model Number | YMD Series | |
| Use | Other, Recycled Plastics,Industry Waste,Electrical Waste,Medical Waste,etc | Plastic Type | Other, ABS,PET,PP/PE,PVC,etc | |
| Shaft Design | Double | Power | 7.5-150KW | |
| Capacity | 400-3000KG/H | Voltage | 220-480V Customized | |
| Power(W) | 7.5-150KW | Dimension(L*W*H) | Variable | |
| Weight | Variable | Certification | CE/ISO Certificate | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

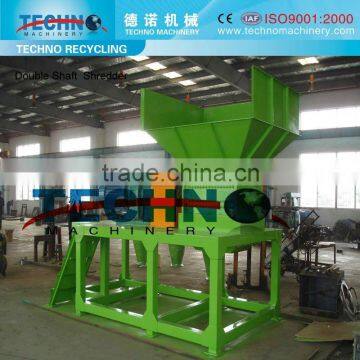

Multi-application Machine Twin Shafts Shredder
Illustration of Twin Shafts Shredder
Shredder is a machine used for crushing, generally for handling unprocessed raw materials or scraps to make smaller size.Representative example is that the shredded scrap of rubbers or plastics can be as melted raw material for granulation to re-produce plastic bottle,tyres or waste container,etc. Shredder is widely used in plastic recycling industry, electrical waste, medical waste, MSW-to energy, biomass energy and so on.
Features of Twin Shafts Shredder
1. Heavy rotation blade,high crushing efficiency and fixed blade with alloy casting,rugged,long service life
2. Thick iron frame and high torque resistance
3. Easy to adjust and low maintenance costs
4. Output should be based on the actual crushing density and shape of objects

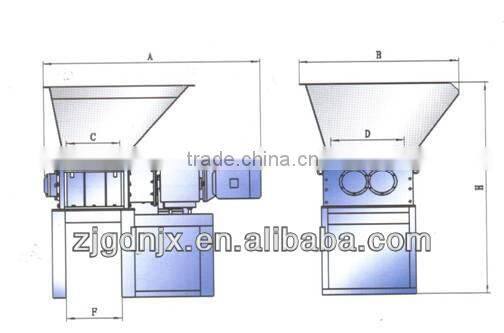

Main Parameter of Twin Shafts Shredder
No. | Twin shafts shredder |
A(mm) | 1720 |
B(mm) | 1260 |
C(mm) | 404 |
D(mm) | 510 |
F (mm) | 600 |
H (mm) | 1900 |
Rotor diameter(mm) | Diameter 284 |
Speed of rotation(r/min) | 17 |
Rotaion blade(pcs) | 20 |
Thickness of the blade(mm) | 20 |
Main motor power(kw) | 7.5 |
Weight of the machine(kg) | 1400 |

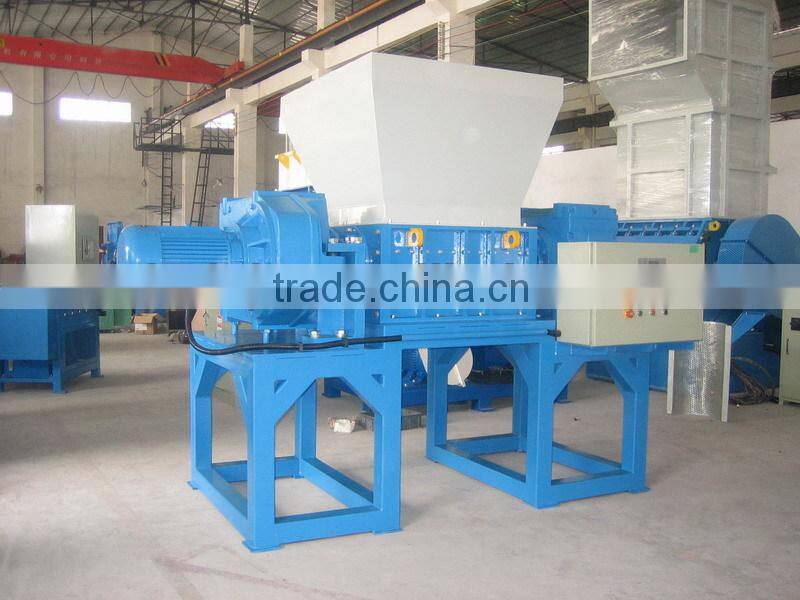

Referenced Pictures
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
Contact Us
- Zhangjiagang Techno Machinery Co., Ltd.
- Contact nameIven Koo Chat Now
- Phone86-512-56795381
- AddressRoom 307, 3rd Floor, P Building, No. 3, Zhenxing Middle Road
