PVC Mixer
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Raw Material | |
| Automatic Grade | Automatic | Production Capacity | 160-1600KG/H | |
| Place of Origin | Jiangsu, China | Brand Name | Techno PVC Mixer | |
| Model Number | SRL-Z Series | Voltage | 220-480V | |
| Power(W) | 5.5-110KW | Dimension(L*W*H) | 3000*2000*2500mm | |
| Weight | 4000KGS | Certification | CE/ISO | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Vertical Type Plastic Mixer
PVC Mixer
Description:
1. PVC mixer is the most ideal machinery for manufacturing tubes and profiles in the process of compound mixing,drying and dying.

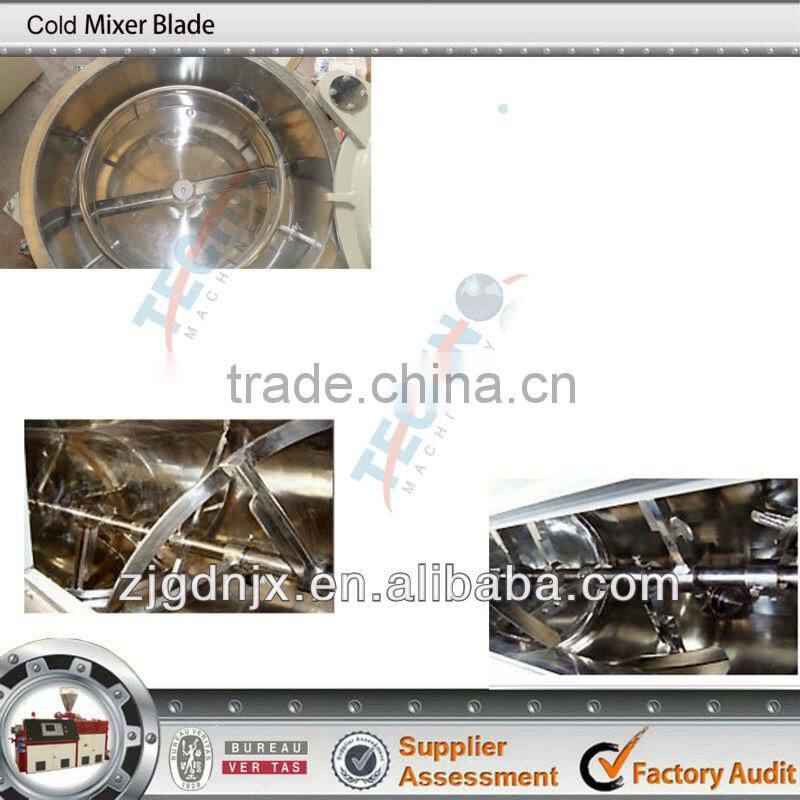

2. The cold mixer adopts vertical structure with the characteristics of large cooling area and more homogenized material.

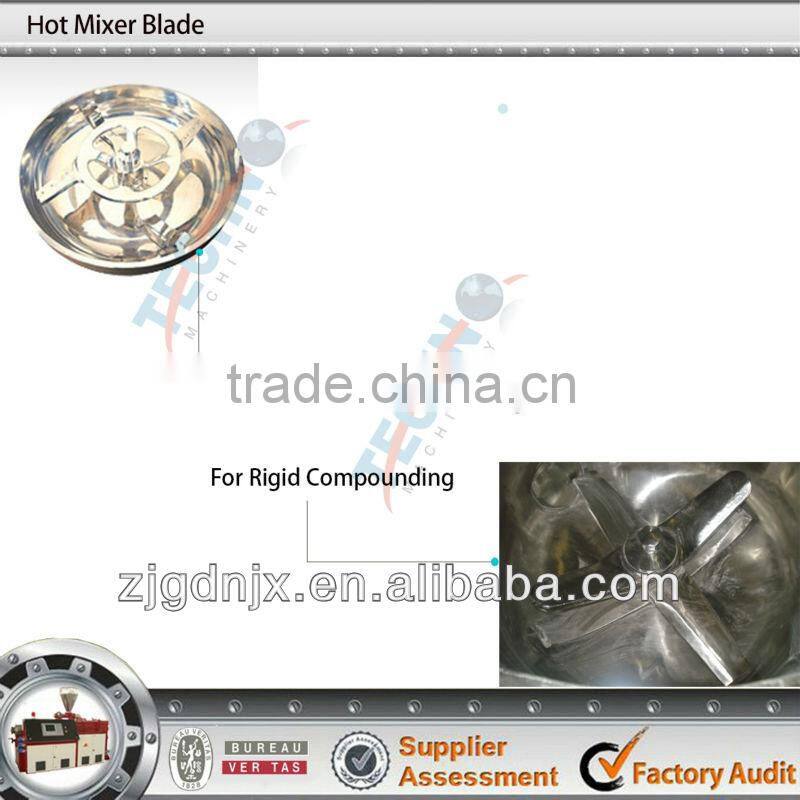

3. Both hot and cold mixing blades and belt wheel have been specially through the balancing machine of static and dynamic.
4. The mixer lid is double sealed and opened in pneumatic way.
5. Optionally equipped with pulse dust collecting device and simple loading system.
6. The electric control system uses RKC, Siemens, Mitsubishi, Omron and other famous instruments and control components to realize automatic control.
Vertical Type PVC Mixer
Features of PVC Mixer:
1. Fast mixing and uniform blending
2. Simple operation and easy clean
3. Compact structure and durable service
Technical Parameter:
PVC Mixer
Model | Total volume(L) | Effective volume(L) | Motor Power(kw) | Main shaft speed(rpm) | Heating method | Discharge method |
| SRL-Z50/100 | 50/100 | 32/75 | 7/11/5.5 | 750/1500/180 | Self-friction OR Electric heating | Pneumatic |
| SRL-Z100/200 | 100/200 | 70/140 | 11/22/7.5 | 650/1300/150 | ||
| SRL-Z200/500 | 200/500 | 140/250 | 30/42/11 | 550/1100/90 | ||
| SRL-Z300/600 | 300/600 | 210/420 | 40/55/11 | 475/950/90 | ||
| SRL-Z500/1000 | 500/1000 | 350/700 | 55/75/15 | 430/860/60 | ||
| SRL-Z800/1600 | 800/1600 | 600/1024 | 83/110/22 | 370/740/50 |
