Techno High Speed PVC Turbo Mixer
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | Plastic Field High Speed Mixer | |
| Automatic Grade | Automatic | Production Capacity | 100-2200kg/h | |
| Place of Origin | Jiangsu, China | Brand Name | Techno Brand High Speed Mixer | |
| Model Number | SRL-Z 200/500 | Voltage | 220-380V | |
| Power(W) | 22-220kw | Dimension(L*W*H) | 3200X2500X2800 | |
| Weight | 3000kgs | Certification | CE ISO | |
| Warranty | 12 Months Warranty | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

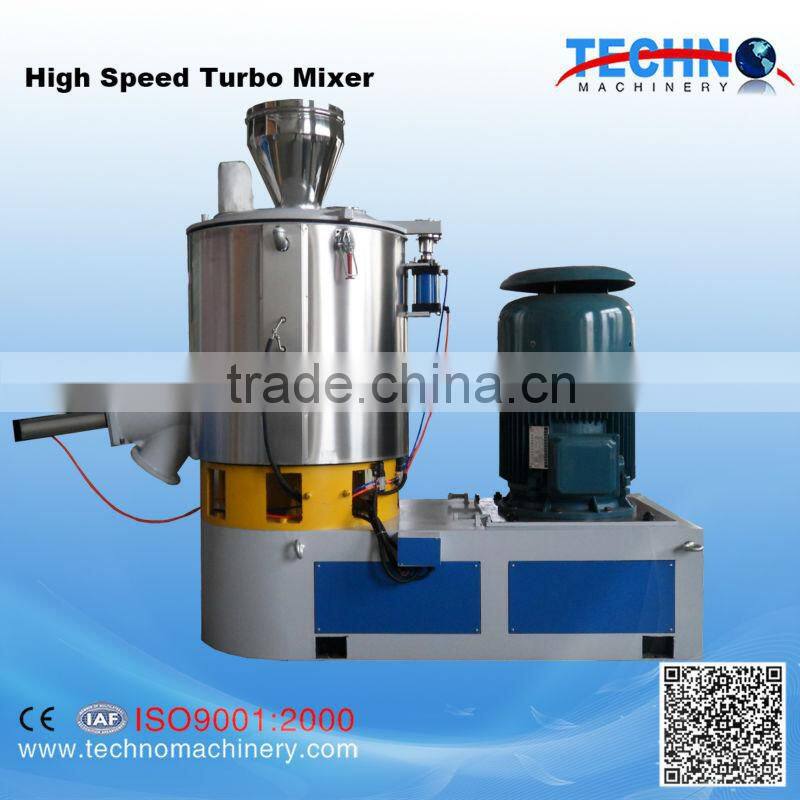

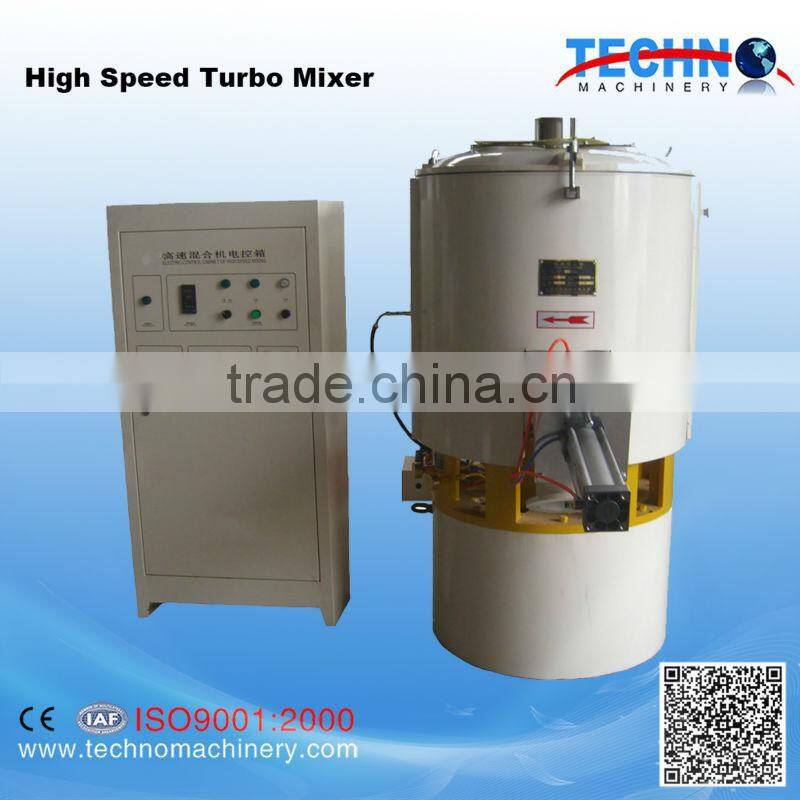

Techno High Speed PVC Turbo Mixer
Techno Machinery is a leading manufacturer for high Speed PVC Turbo Mixer

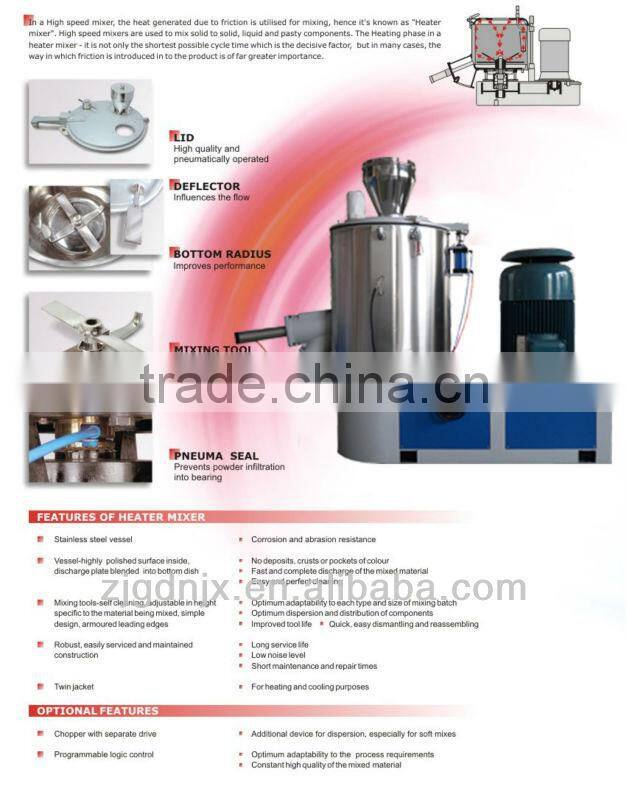

Features of high speed mixer
1. Used for the processes of compounding mixing, drying and dying as one of the most ideal equipment for the manufacures of prodiles and tuves.
2. The mixer lid is double sealed and opened in the pneumatic way.
4. The electric control system adopts RKC, Stemens, Mitsubishi, Omron and other famous instruments and control components to reailze automatic control.
5. Equiped with puise dust catching device. (on customer's option).
6. Both the blades and belt wheel have been specially treated through the balancing machine fo seaic and dunamic.
7. Simple loading system can also be equipped on customer's option
Model | otal volume(L) | Effective volume(L) | Motor Power(kw) | Main shaft speed(rpm) | Discharge method | Heating method |
| SHR-10 | 10 | 7 | 3 | 2000 | Manual | Self-friction or electric heating |
| SHR-25 | 25 | 18 | 5.5 | 1750 | ||
| SHR-50 | 50 | 35 | 7/11 | 750/1500 | Pneumatic | |
| SHR-100 | 100 | 70 | 11/22 | 650/1300 | ||
| SHR-200 | 200 | 140 | 30/42 | 550/1100 | ||
| SHR-300 | 300 | 210 | 40/55 | 475/950 | ||
| SHR-500 | 500 | 350 | 55/75 | 430/860 | ||
| SHR-800 | 800 | 560 | 83/110 | 370/740 | ||
| SHR-1000 | 1000 | 700 | 110/160 | 320/640 |
