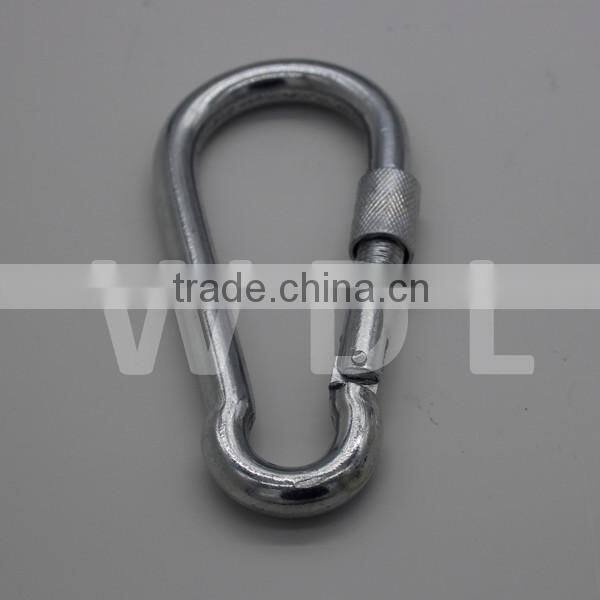

Screw Lock Stainless Steel Snap Hook
- QINGDAO PORT
- T/T Credit Card
You May Like
-
Best-Selling Safety Snap Hook Quick Link Hook
-
Double Insurance Spring Hook Rigging Hardware Supplier
-
Spring Hook With No Screw Stainless Steel Stainless Steel Snap Hook Caribine Hook for Sale China
-
Best Selling Spring Snap Hook Spring Snap Links
-
Stainless Steel Snap Hook Without Eyelet
-
Snap Hook/ Spring Hook/ Carabiner Hook
Product Details
| Place of Origin | Shandong, China | Brand Name | WDL | |
| Model Number | WDL-03 | Material | Carbon Steel Stainless Steel |
Product Description
Screw Lock Stainless Steel Snap Hook
The Details of The Hooks We Can Supply:
1.Raw Material of Snap Hook:Carbon Steel;Stainless Steel
2.Size of Snap Hooks:4X40mm--15X220mm
3.Surface Finish of Snap Hook: Color-painted; self-colored; Galvanized
The Spring Hook/Carabiner/Snap Hook We Supply:
3.Eyelet Snap Hook:
Item No | Size | A | B | C | D | L | SWL | N.W |
| mm | mm | mm | mm | mm | mm | Lbs | (kg/100pcs) |
301 | 4*40 | 20 | 5 | 6 | 4 | 40 | 100 | 0.85 |
302 | 5*50 | 25 | 5 | 7 | 5 | 50 | 160 | 1.8 |
303 | 6*60 | 30 | 5 | 7 | 6 | 60 | 260 | 3 |
304 | 7*70 | 35 | 7 | 10 | 7 | 70 | 335 | 5 |
305 | 8*80 | 40 | 10 | 11 | 8 | 80 | 400 | 7 |
306 | 9*90 | 45 | 10 | 11 | 9 | 90 | 500 | 9.8 |
307 | 10*100 | 50 | 13 | 12 | 10 | 100 | 650 | 14.2 |
308 | 11*120 | 57 | 13 | 19 | 11 | 120 | 700 | 21 |
309 | 12*140 | 67 | 15 | 20 | 12 | 140 | 800 | 27.5 |
310 | 13*160 | 74 | 17 | 29 | 13 | 160 | 1300 | 35.8 |
4..Eyelet and Screw Snap Hook
Item No | Size | A | B | C | D | L | SWL | N.W |
mm | mm | mm | mm | mm | mm | Lbs | (kg/100pcs) | |
401 | 5*50 | 25 | 5 | 5 | 5 | 50 | 150 | 2.1 |
402 | 6*60 | 30 | 5 | 7 | 6 | 60 | 250 | 3.22 |
403 | 7*70 | 35 | 7 | 7.5 | 7 | 70 | 320 | 5.07 |
404 | 8*80 | 40 | 10 | 8.5 | 8 | 80 | 400 | 7.7 |
405 | 9*90 | 45 | 10 | 9 | 9 | 90 | 500 | 9.9 |
406 | 10*100 | 50 | 13 | 10 | 10 | 100 | 650 | 16.2 |
407 | 11*120 | 57 | 13 | 16 | 11 | 120 | 700 | 22 |
408 | 12*140 | 67 | 15 | 18 | 12 | 140 | 800 | 28 |
409 | 13*160 | 74 | 17 | 25 | 13 | 160 | 1200 | 37 |
5.Egg Type Snap Hook
Item No | Size | A | C | D | L | SWL | N.W |
| mm | mm | mm | mm | mm | Lbs | (kg/100pcs) |
501 | 5*50 | 25 | 7 | 5 | 50 | 160 | 1.7 |
502 | 6*60 | 30 | 8 | 6 | 60 | 260 | 2.5 |
503 | 7*70 | 35 | 9 | 7 | 70 | 335 | 4.4 |
504 | 8*80 | 40 | 10 | 8 | 80 | 400 | 6.6 |
505 | 9*90 | 45 | 11 | 9 | 90 | 500 | 9.3 |
506 | 10*100 | 50 | 13 | 10 | 100 | 650 | 12 |
507 | 11*120 | 57 | 16 | 11 | 120 | 700 | 18.5 |
508 | 12*140 | 67 | 19 | 12 | 140 | 800 | 25 |
6.Quick Lin
Item No | Size | A | L1 | L2 | F | W.L.L |
| mm | mm | mm | mm | mm | Lbs |
601 | 3.5 | 3.5 | 36.5 | 17 | 5 | 175 |
602 | 4 | 4 | 40 | 19.5 | 5.5 | 500 |
603 | 5 | 5 | 49 | 23 | 6.5 | 650 |
604 | 6 | 6 | 58 | 26.5 | 7.5 | 875 |
605 | 7 | 7 | 65 | 30.5 | 8.5 | 1200 |
606 | 8 | 8 | 75 | 33.5 | 10.5 | 1525 |
607 | 9 | 9 | 82 | 35 | 11.5 | 1975 |
608 | 10 | 10 | 90 | 40.5 | 12.5 | 2300 |
609 | 12 | 12 | 107 | 47.5 | 14.5 | 2500 |
610 | 14 | 14 | 125 | 54.5 | 17 | 2800 |

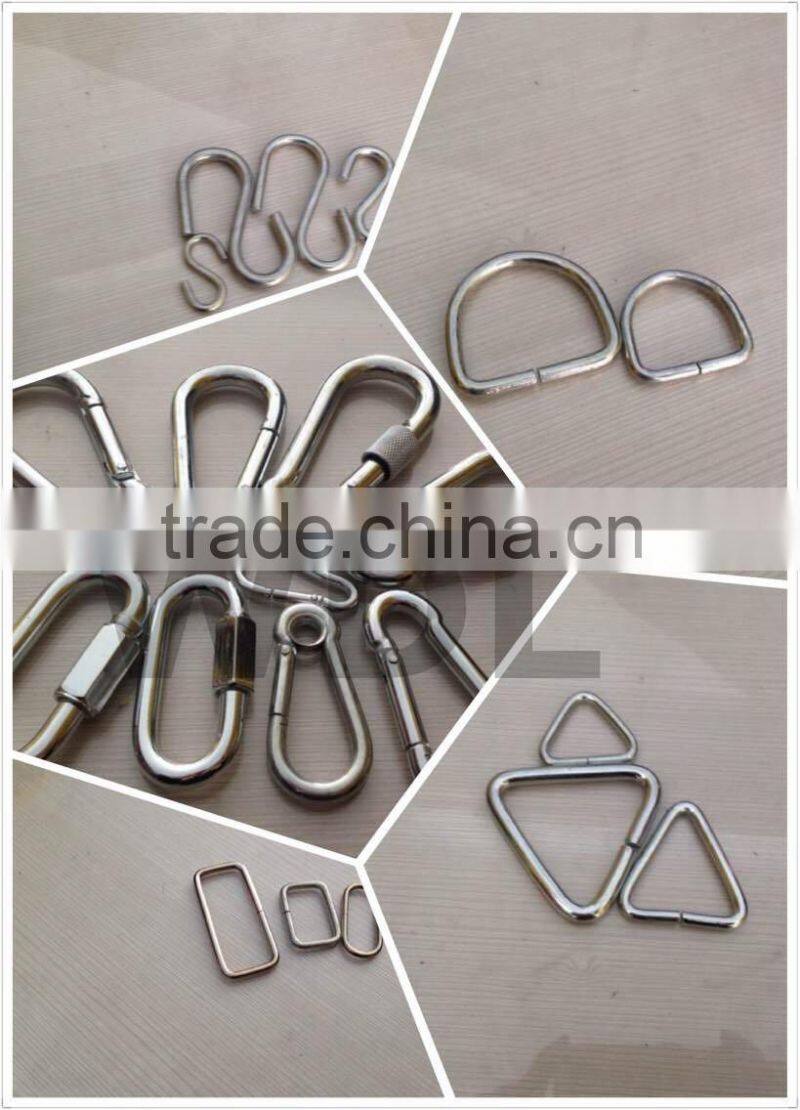

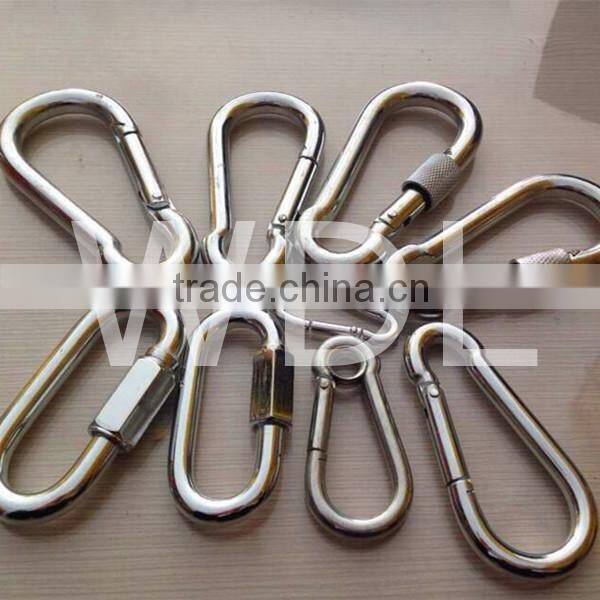

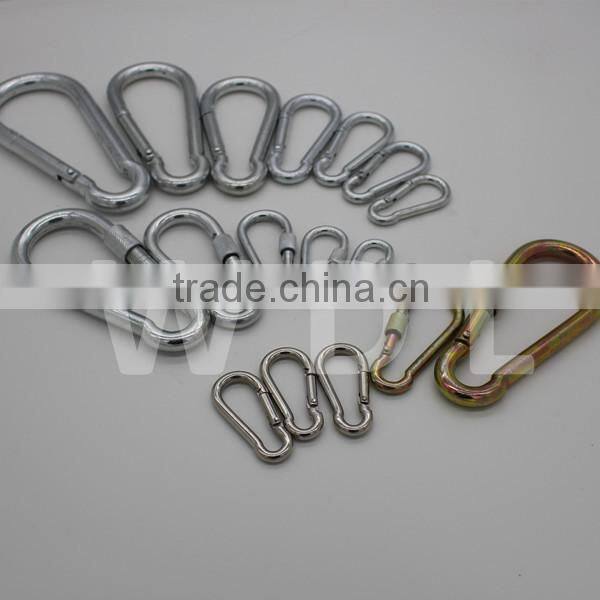

Snap Hook Display:

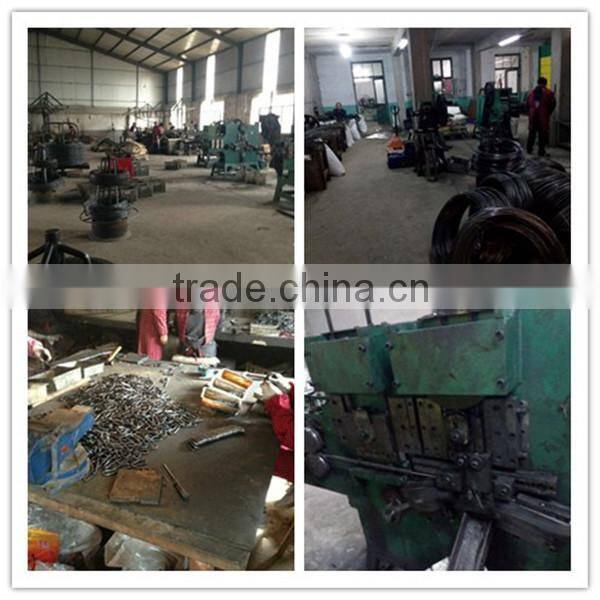

Factory of Snap Hook:

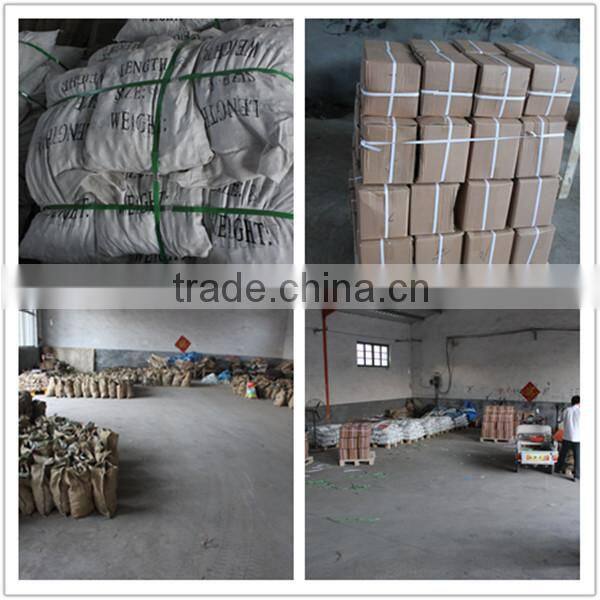

Package of Spring Hook:
Company Information:
Contact Us
- Linyi Weideli Metal Products Factory
- Contact namePeter Zhang Chat Now
- Phone86-539-8093895
- AddressHedong District, Taiping street, shalingguanzhuang Industrial Park, Linyi, Shandong
