Home > Products > Plastic Pipe Belling Machine > Plastic Pipe Belling Machine
Plastic Pipe Belling Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Product Type | Plastic Pipe | |
| Place of Origin | Jiangsu, China | Brand Name | Techno | |
| Model Number | SGK | Certification | CE |
Product Description

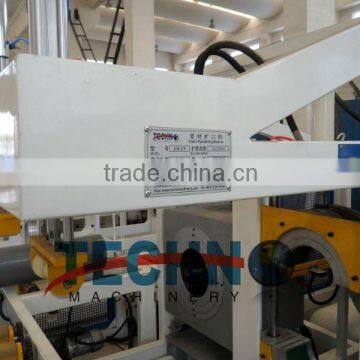

Plastic Pipe Belling Machine
Description:
1.PVC pipe belling machine
2.belling type: Z type and R type
Fully automatic belling machine is suitable for the U-PVC belling. Shapingway adopts rising in the mould and rises and increasing the barometric pressure out of the mould to make it stereotypic.Main technical parameters .
Belling Machine :
Model | Belling Scope | Total Power | G.W. | Overall dimensions (mm) | Belling-type |
SGK75S | Φ16mm-Φ75mm | 7kw | 1500kg | 7460×1950×1900 | U type |
SGK110 | Φ20mm-Φ110mm | 7kw | 1300kg | 7460×1550×1900 | U or R type |
SGK160 | Φ40mm-Φ160mm | 18kw | 2300kg | 7000×1530×1963 | R-type Smooth-type |
SGK250 | Φ50mm-Φ250mm | 18kw | 2500kg | 7300×1730×1950 | R-type Smooth-type |
SGK315 | Φ110mm-Φ315mm | 25kw | 2800kg | 7500×1930×2100 | R-type Smooth-type |
SGK400 | Φ160mm-Φ400mm | 25kw | 3000kg | 7900×2140×2125 | R-type Smooth-type |
SGK630 | Φ315mm-Φ630mm | 32kw | 3500kg | 8423×2970×2650 | R-type Smooth-type |
SGK1000 | Φ500mm-Φ1000mm | 50kw | 8000kg | 10000×4600×2570 | R-type Smooth-type |
Main technical parameters :
Model | SGK | |
Belling Scope | Φ16mm-Φ1000mm | |
Belling-type | R-type, Square-type and Smooth type | |
Pipe Length | 3m-8m | |
Use Voltage | AC 380V; 50Hz (Or according to customer's request) | |
Central Height | According to customer's request | |
Molding mode | R-type | with collapsible core |
Smooth type | Pushing mould directly into pipe | |
Cooling mode | Air-cooled or Water cooled | |
